Part number
1SCA153463R1001
Model no
OXB250E3X4QB
$3,932.43 On request Dispatch — · From TürkiyeGet a Quote
Automatic Transfer Switches TruONE

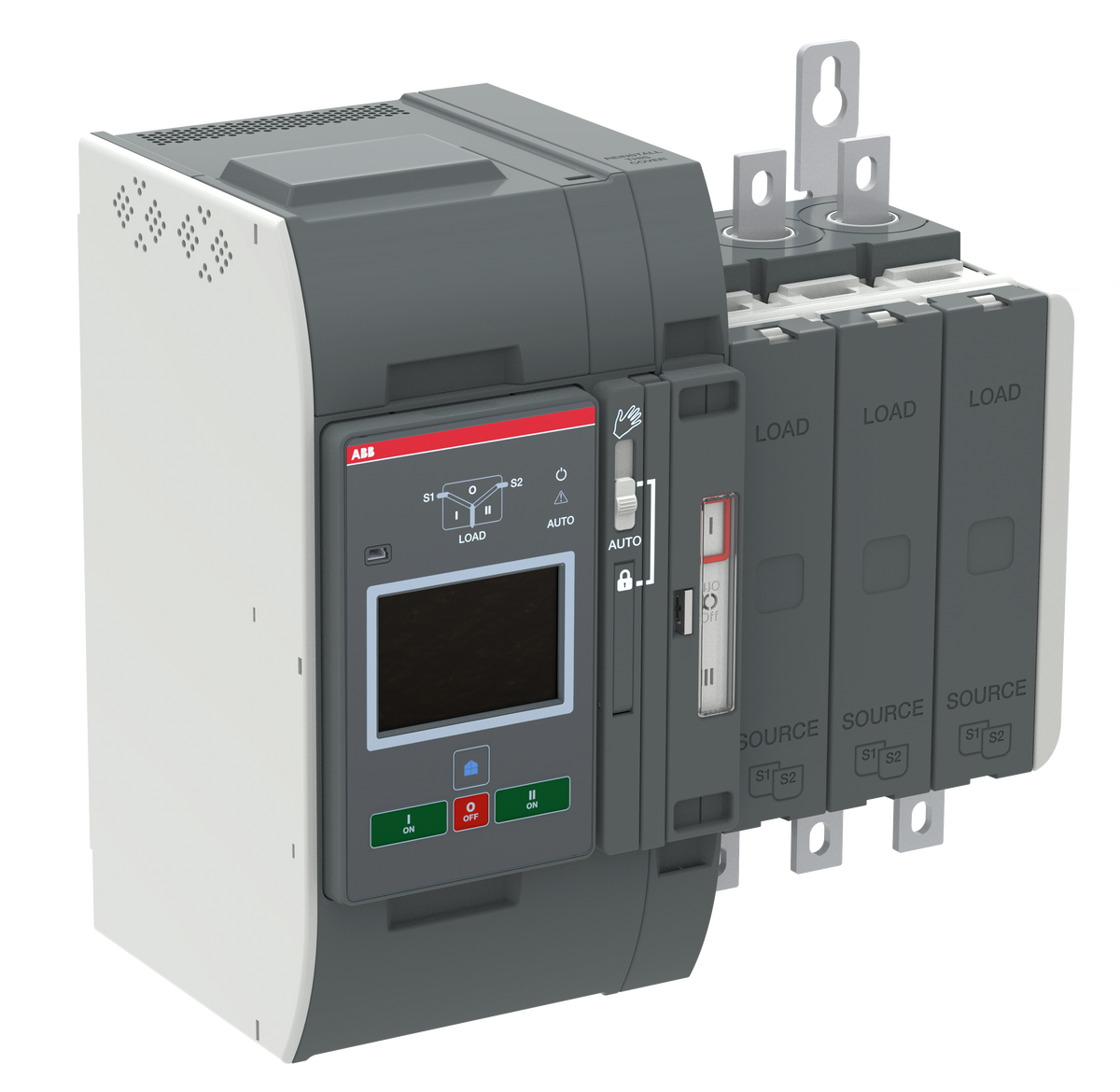

ABB 1SCA153463R1001 OXB250E3X4QB 250A 3P Level 4 Touch Automatic Transfer Switch

ABB OXB250E3X4QB TruONE automatic transfer switch, 250A 3P, Level 4 (Touch) controller, 18kA Icw, bottom-supply terminals.

Rated current
250 A
Rated operational voltage
200–480 V AC
Poles
3P
EAN
6417019844893
Description

About the OXB250E3X4QB

The ABB 1SCA153463R1001 (OXB250E3X4QB) is a three-pole TruONE open-style automatic transfer switch rated 250 A, built to switch between two AC sources from 200 to 480 V. A Level 4 touchscreen controller runs the delayed I-O-II transition, and the bottom-supply / top-load terminal layout suits switchboards fed from below.

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

This 3-pole, 250 A unit leaves the neutral common between sources instead of switching it, the same arrangement as the DIP and LCD controller versions on this frame. Stepping up to the Level 4 touch controller adds a graphical HMI with event history and parameter access, where the Level 2 and Level 3 units on the same chassis rely on DIP switches or a basic text display. Icw stays at 18 kA for 0.3 s and Uimp at 8 kV, unchanged from the lower-controller siblings on this 250 A frame. QB terminals bring supply in from the bottom and send load out the top; the QT version reverses this for top-fed switchboards.

Specification

Full specification

49 values · Last verified 02 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental 2

Degree of Protection Front IP20
Pollution Degree 3

Dimensions 4

Product Net Width 330 mm, 12.99 in
Product Net Height 305 mm, 12.01 in
Product Net Depth / Length 183 mm, 7.2 in
Product Net Weight 14.12 kg, 31.13 lb
Show all 49 specifications ↓ Show less ↑42 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SCA153463R1001
Type designation OXB250E3X4QB
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 6417019844893
ETIM class EC000216
eCl@ss 27371403
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080

Technical 18

Controller Type Level 4 (Touch)
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 250 A
Handle Type Direct Mount
Number of Poles 3P
Position of Line Terminals Supplies on Bottom - Load on Top
Power Loss at Rated Operating Conditions per Pole 9.7 W, Total 29.1 W
Rated Frequency (f) Main Circuit 50-60 Hz
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Current AC-31B (Ie) (200 … 415 V AC) 250 A
Rated Operational Current AC-32B (Ie) (200 … 415 V AC) 250 A
Rated Operational Current AC-33B (Ie) (200 … 415 V AC) 250 A
Rated Operational Voltage Main Circuit 200...480 V AC
Rated Short-time Withstand Current Low Voltage (Icw) for 0.3 s 18 kiloampere rms
Special Functions Open style
Standards IEC60947-6-1
Terminal Type Bolt
Transition Type Delayed

External Classifications and Standards 3

ETIM 10 EC000216 - Switch disconnector (AC)
eClass V11.1 : 27371403
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 345 mm, 13.58 in
Package Level 1 Depth / Length 445 mm, 17.52 in
Package Level 1 Height 240 mm, 9.45 in
Package Level 1 Gross Weight 14.82 kg, 32.67 lb
Package Level 1 EAN 6417019844893
Shipping weight 14.12 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 02 Oct 2026

Documents

Documents for 1SCA153463R1001

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC60947-6-1
Quick answers

Questions about the OXB250E3X4QB

What is the rated current of OXB250E3X4QB?

The rated current of OXB250E3X4QB is 250 A.

Which supply voltage is OXB250E3X4QB rated for?

The rated operational voltage of OXB250E3X4QB is 200–480 V AC.

What is the HS code of OXB250E3X4QB for customs?

The tariff (HS) code on file for OXB250E3X4QB is 853650.

What is the EAN of OXB250E3X4QB?

The EAN (GTIN) of OXB250E3X4QB is 6417019844893.

Where does OXB250E3X4QB ship from, and how fast?

OXB250E3X4QB ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
