ABB 1SCA153435R1001 OXB200E3X3QT 3P 200A 18kA Automatic Transfer Switch

% $-2,984.25

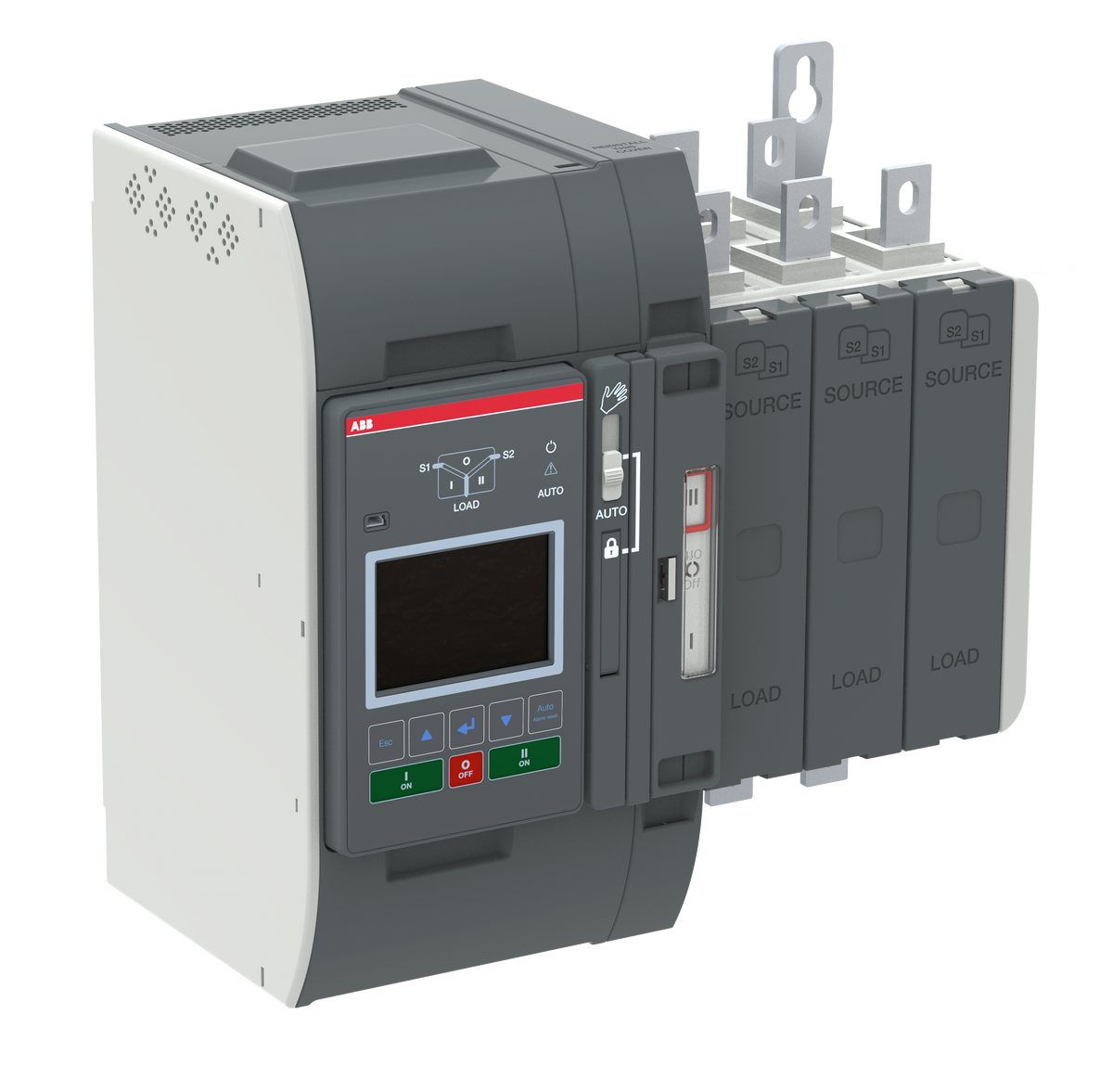

ABB 1SCA153435R1001 OXB200E3X3QT automatic transfer switch - 200A 3P
ABB 1SCA153435R1001 OXB200E3X3QT automatic transfer switch - 200A 3P

ABB 1SCA153435R1001 OXB200E3X3QT 3P 200A 18kA Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA153435R1001
Catalog No: OXB200E3X3QT
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 200
Rated Voltage: 200/480 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,984.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA153435R1001 (OXB200E3X3QT) is a 200 A, 3-pole TruONE automatic transfer switch rated for an 18 kA short-time withstand over 0.3 s. Its Level 3 LCD controller displays transfer settings and logged events on site, and the QT terminal layout routes supply in at the top of the enclosure.

Technical Specifications

SKU 1SCA153435R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB200E3X3QT
EAN 6417019844619
Number of Poles 3P
Rated Operational Voltage 200-480 V AC (main circuit)
Rated Operational Current AC-31B (Ie) 200 A at 200-415 V AC
Rated Operational Current AC-32B (Ie) 200 A at 200-415 V AC
Rated Operational Current AC-33B (Ie) 200 A at 200-415 V AC
Conventional Free-air Thermal Current (Ith) 200 A at 40 degC
Rated Short-time Withstand Current (Icw) 18 kA for 0.3 s
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Frequency 50-60 Hz
Transition Type Delayed (I-O-II)
Controller Type Level 3 (LCD)
Line Terminal Position Supply top, load bottom
Terminal Type Bolt
Handle Type Direct Mount
Degree of Protection IP20 (front)
Pollution Degree 3
Power Loss 5.8 W per pole, 17.4 W total
Dimensions (W x H x D) 330 x 305 x 183 mm
Net Weight 13.95 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

Keeping the neutral common across both sources, the 3-pole OXB200E3X3QT suits installations that do not need the neutral switched; the 4-pole S variant covers the cases that do. Its Level 3 LCD controller sits between the base DIP-switch Level 2 and the touchscreen Level 4, giving an on-site display without the full interface. At 200 A and an 18 kA short-time withstand, this frame is intended for sub-distribution transfer rather than a main incomer. QT termination routes the supply cabling in at the top of the enclosure.

Technical Details

Short Description
ABB TruONE OXB200E3X3QT automatic transfer switch, 3P, 200 A, 18 kA Icw, Level 3 LCD, QT termination.
Rated Current (Ampere)
200
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB200E3X3QT
Number of Poles
3P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB200E3X3QT
Tariff Code
853650
