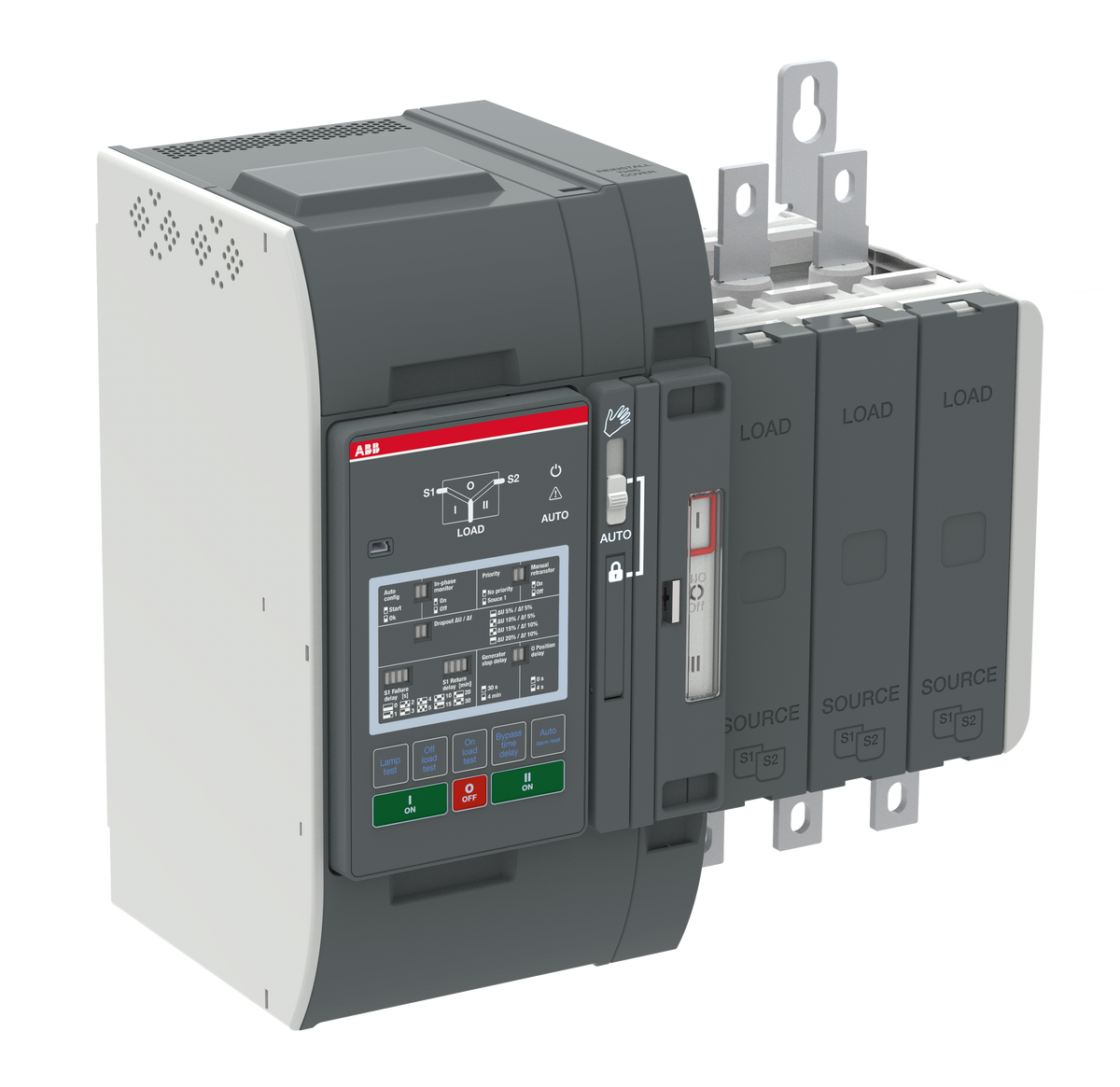

ABB 1SCA153433R1001 OXB200E3X2QB 3P 200A 18kA Automatic Transfer Switch

ABB's 1SCA153433R1001, catalog designation OXB200E3X2QB, is a 3-pole, 200 A TruONE automatic transfer switch with an 18 kA short-time withstand rating for 0.3 s. A Level 2 DIP-switch controller sets the transfer logic, and the bottom-supply, top-load (QB) termination suits panels fed from below, with bolt-type line and load terminals.

Technical Specifications

Certifications & Standards

• IEC 60947-6-1

Selection Notes

The 3-pole (X) OXB200E3X2QB keeps the neutral solid between the two sources, which fits installations with a single bonded neutral; specify the 4-pole S variant where the neutral itself has to switch. At 200 A with an 18 kA short-time withstand, it is sized for sub-distribution transfer rather than a main incomer. The Level 2 DIP-switch controller is the base interface in this frame - the Level 3 LCD and Level 4 touchscreen variants add on-site display and event logging. QB termination feeds the supply in at the bottom of the enclosure.
