ABB 1SCA153432R1001 OXB200E3S4QT 4P 200A 18kA Automatic Transfer Switch

% $-3,691.50

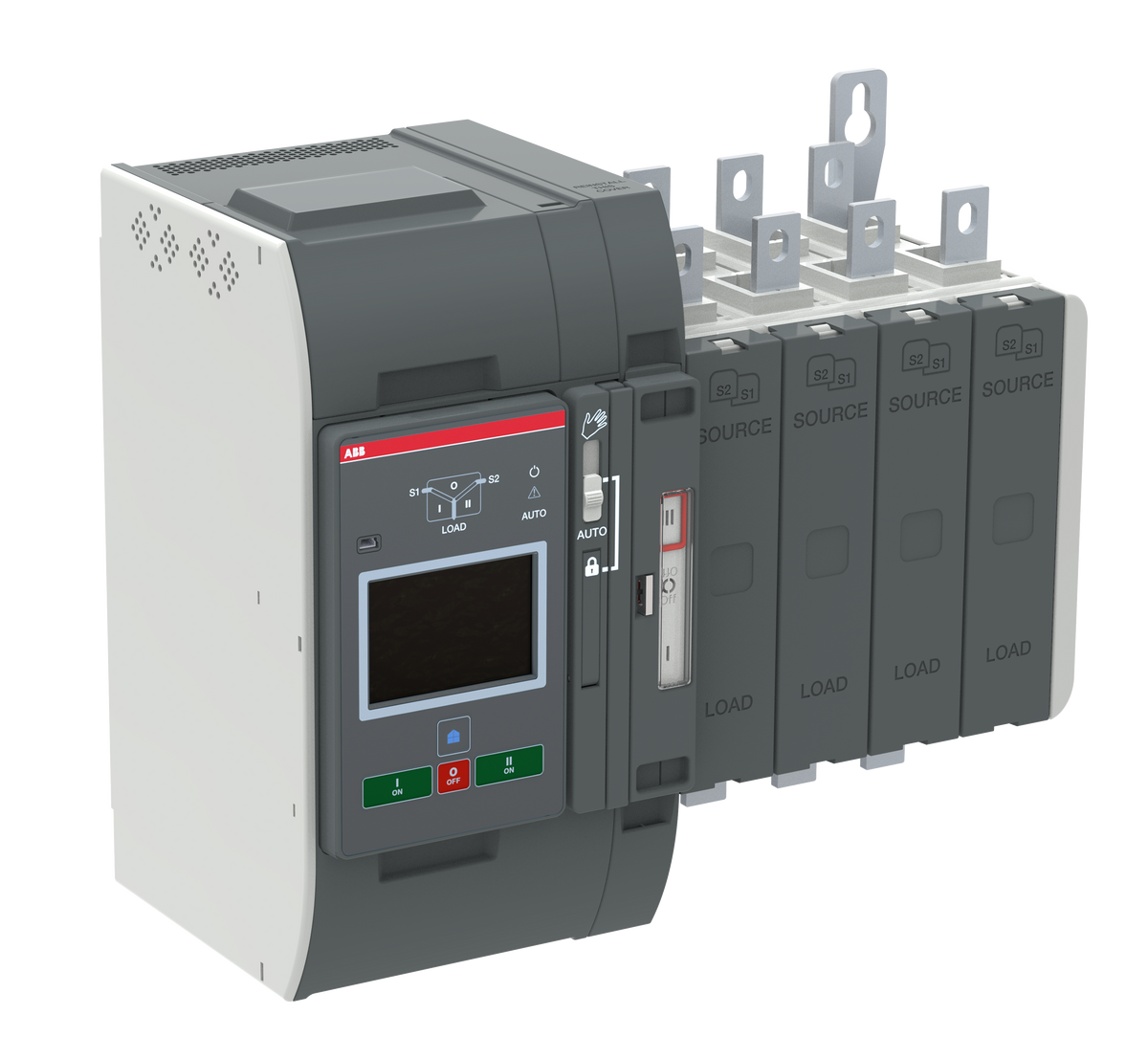

ABB 1SCA153432R1001 OXB200E3S4QT automatic transfer switch - 200A 4P
ABB 1SCA153432R1001 OXB200E3S4QT automatic transfer switch - 200A 4P

ABB 1SCA153432R1001 OXB200E3S4QT 4P 200A 18kA Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA153432R1001
Catalog No: OXB200E3S4QT
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 200
Rated Voltage: 200/480 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,691.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA153432R1001 (OXB200E3S4QT) is a 200 A, 4-pole TruONE automatic transfer switch rated for an 18 kA short-time withstand over 0.3 s, with the neutral switched along with the three phases. A Level 4 touchscreen controller provides full parameter access, and the QT layout brings supply cabling in at the top of the enclosure.

Technical Specifications

SKU 1SCA153432R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB200E3S4QT
EAN 6417019844589
Number of Poles 4P
Fourth Pole Position Left and right side
Fourth Pole Type Switched, simultaneous function
Rated Operational Voltage 200-480 V AC (main circuit)
Rated Operational Current AC-31B (Ie) 200 A at 200-415 V AC
Rated Operational Current AC-32B (Ie) 200 A at 200-415 V AC
Rated Operational Current AC-33B (Ie) 200 A at 200-415 V AC
Conventional Free-air Thermal Current (Ith) 200 A at 40 degC
Rated Short-time Withstand Current (Icw) 18 kA for 0.3 s
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Frequency 50-60 Hz
Transition Type Delayed (I-O-II)
Controller Type Level 4 (Touch)
Line Terminal Position Supply top, load bottom
Terminal Type Bolt
Handle Type Direct Mount
Degree of Protection IP20 (front)
Pollution Degree 3
Power Loss 5.8 W per pole, 17.4 W total
Dimensions (W x H x D) 375 x 305 x 183 mm
Net Weight 15.8 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

Like its S-coded siblings, the OXB200E3S4QT switches the neutral together with the three phases, which is the configuration to pick where the neutral must open during a transfer; the X (3-pole) variant leaves it solid. The Level 4 touchscreen controller gives full access to transfer parameters and logged events, ahead of the simpler Level 2 DIP and Level 3 LCD options in this 200 A, 18 kA frame. QT termination brings the supply cabling in at the top of the enclosure, the mirror of the QB layout.

Technical Details

Short Description
ABB TruONE OXB200E3S4QT automatic transfer switch, 4P switched-neutral, 200 A, 18 kA Icw, Level 4 Touch, QT termination.
Rated Current (Ampere)
200
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB200E3S4QT
Number of Poles
4P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB200E3S4QT
Tariff Code
853650
