ABB 1SCA152414R1001 OXB1600E3S4QB 1600A 4P Touch Controller Bottom Feed Automatic Transfer Switch

% $-10,788.15

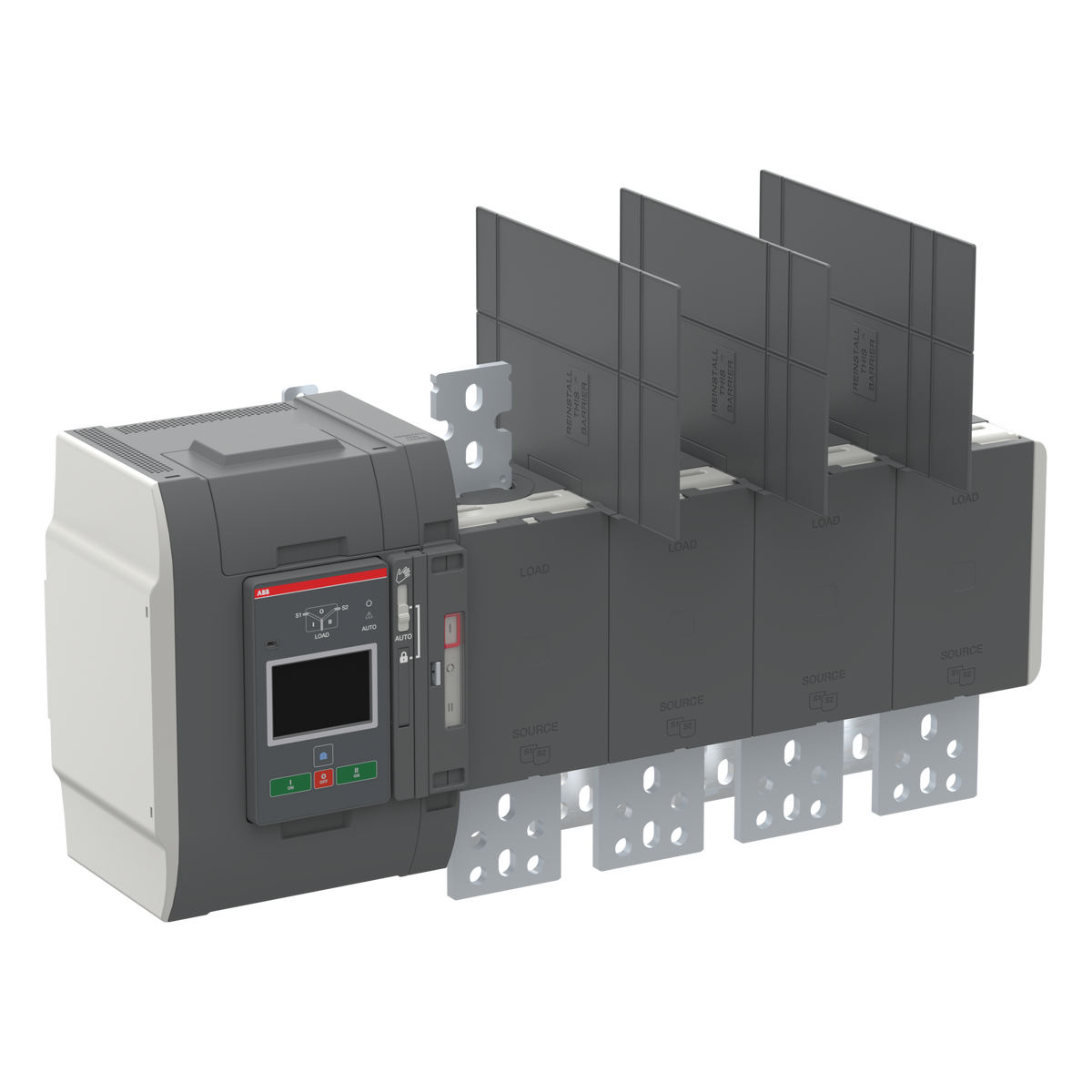

ABB 1SCA152414R1001 OXB1600E3S4QB Automatic Transfer Switch - 1600A 4P
ABB 1SCA152414R1001 OXB1600E3S4QB Automatic Transfer Switch - 1600A 4P

ABB 1SCA152414R1001 OXB1600E3S4QB 1600A 4P Touch Controller Bottom Feed Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA152414R1001
Catalog No: OXB1600E3S4QB
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 1600
Rated Voltage: 200/480 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$10,788.15

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA152414R1001 (OXB1600E3S4QB) is a 4-pole TruONE transfer switch rated 1600 A at AC-31B, 1500 A at AC-32B and 1250 A at AC-33B, built around a Level 4 touchscreen controller. Supply feeds in from the bottom with load on top, and the 200-480 V AC switch is rated for a 65 kA / 0.1 s short-time withstand current.

Technical Specifications

SKU 1SCA152414R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB1600E3S4QB
EAN 6417019833958
Number of Poles 4P
Fourth Pole Configuration Switched, simultaneous function, left and right side mounting
Rated Operational Voltage 200-480 V AC (Main Circuit)
Rated Operational Current (AC-31B) 1600 A (200-415 V AC)
Rated Operational Current (AC-32B) 1500 A (200-415 V AC)
Rated Operational Current (AC-33B) 1250 A (200-415 V AC)
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Short-time Withstand Current (Icw) 65 kA for 0.1 s
Conventional Free-air Thermal Current (Ith) 1600 A at 40 degC
Rated Frequency 50-60 Hz
Controller Type Level 4 (touchscreen)
Transition Type Delayed (I-O-II)
Terminal Position Supply on bottom, load on top
Terminal Type Bolt
Degree of Protection Front IP20
Pollution Degree 3
Power Loss 49 W per pole / 147 W total
Dimensions (W x H x D) 712 x 359 x 212 mm
Net Weight 37.55 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

This 1600 A / 1500 A / 1250 A (AC-31B/32B/33B) rated, 4-pole, bottom-fed (QB) switch combines the top current rating in this batch with a Level 4 touchscreen controller, making it the choice where both motor-load switching and full on-panel diagnostics are needed. The DIP-switch and LCD-controller siblings in the same 1600 A / 4P / QB configuration are lower-cost alternatives when touchscreen access is not required. Four-pole switching suits sources with independently earthed neutrals.

Technical Details

Short Description
ABB 1SCA152414R1001 OXB1600E3S4QB - 1600A 4P TruONE automatic transfer switch, Level 4 Touch controller, 200-480V AC.
Rated Current (Ampere)
1600
Rated Voltage (VAC)
200/480 V AC
Mounting Type
Direct Mount
Protection Type
IP20
Catalog No
OXB1600E3S4QB
Number of Poles
4P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB1600E3S4QB
Tariff Code
853650
