ABB 1SCA152043R1001 OXB200E3X4QB 3P 200A 18kA Automatic Transfer Switch

% $-3,581.10

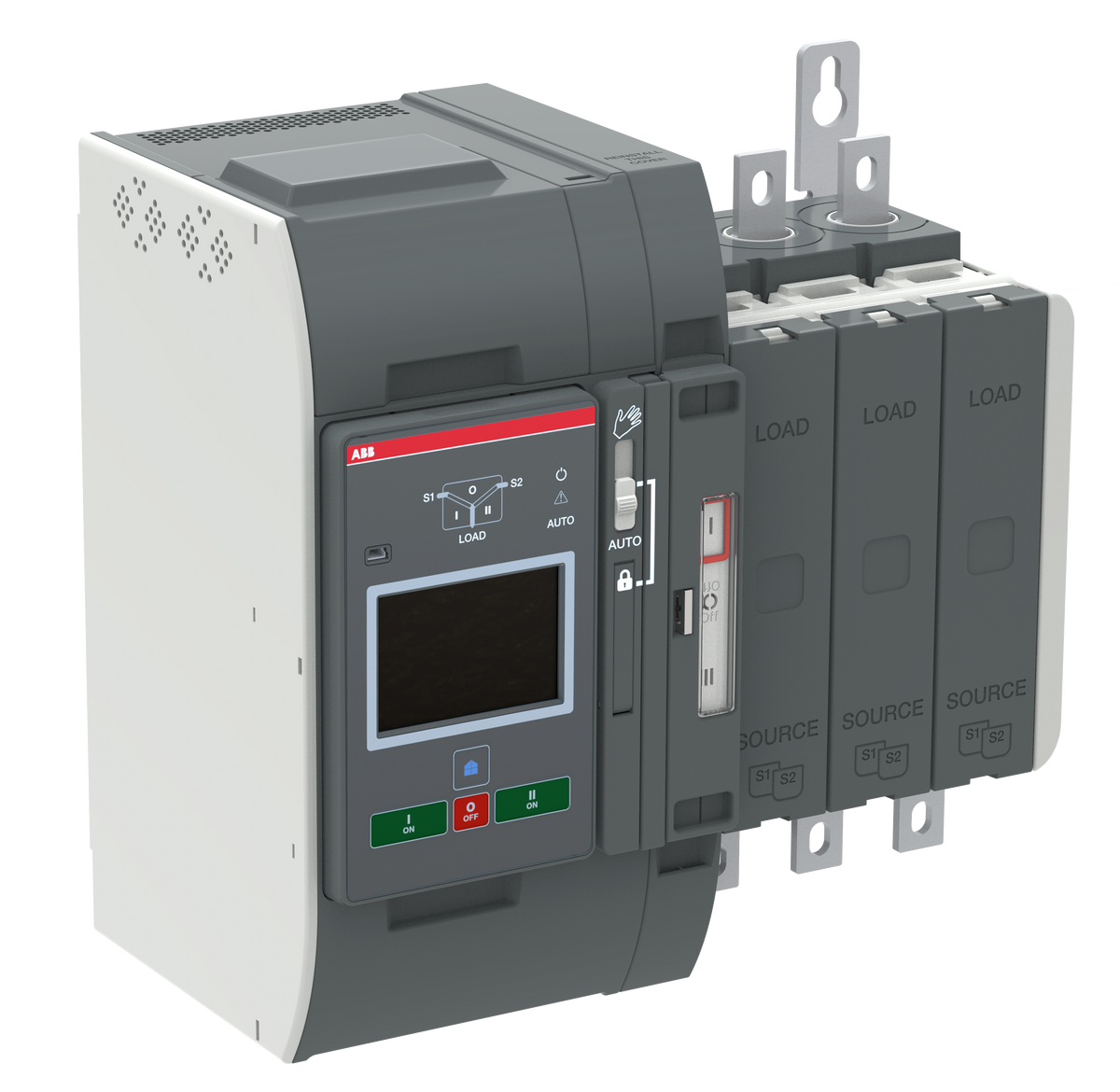

ABB 1SCA152043R1001 OXB200E3X4QB automatic transfer switch - 200A 3P
ABB 1SCA152043R1001 OXB200E3X4QB automatic transfer switch - 200A 3P

ABB 1SCA152043R1001 OXB200E3X4QB 3P 200A 18kA Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA152043R1001
Catalog No: OXB200E3X4QB
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 200
Rated Voltage: 200/480 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,581.10

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 1SCA152043R1001, catalog designation OXB200E3X4QB, is a 3-pole, 200 A TruONE automatic transfer switch with an 18 kA short-time withstand for 0.3 s. A Level 4 touchscreen controller provides full parameter access and event history, and the QB layout brings supply cabling in at the bottom with the load wired at the top.

Technical Specifications

SKU 1SCA152043R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB200E3X4QB
EAN 6417019827636
Number of Poles 3P
Rated Operational Voltage 200-480 V AC (main circuit)
Rated Operational Current AC-31B (Ie) 200 A at 200-415 V AC
Rated Operational Current AC-32B (Ie) 200 A at 200-415 V AC
Rated Operational Current AC-33B (Ie) 200 A at 200-415 V AC
Conventional Free-air Thermal Current (Ith) 200 A at 40 degC
Rated Short-time Withstand Current (Icw) 18 kA for 0.3 s
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Frequency 50-60 Hz
Transition Type Delayed (I-O-II)
Controller Type Level 4 (Touch)
Line Terminal Position Supply bottom, load top
Terminal Type Bolt
Handle Type Direct Mount
Degree of Protection IP20 (front)
Pollution Degree 3
Power Loss 5.8 W per pole, 17.4 W total
Dimensions (W x H x D) 330 x 305 x 183 mm
Net Weight 14.12 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

The OXB200E3X4QB's 3-pole (X) build leaves the neutral solid between sources, fitting installations with a single bonded neutral; the 4-pole S variant switches the neutral too where required. Its Level 4 touchscreen controller is the most capable in the TruONE range, with full parameter access and event history, ahead of the Level 2 DIP and Level 3 LCD options at the same 200 A, 18 kA rating. QB termination brings the supply cabling in at the bottom of the enclosure with the load wired at the top.

Technical Details

Short Description
ABB TruONE OXB200E3X4QB automatic transfer switch, 3P, 200 A, 18 kA Icw, Level 4 Touch, QB termination.
Rated Current (Ampere)
200
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB200E3X4QB
Number of Poles
3P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB200E3X4QB
Tariff Code
853650
