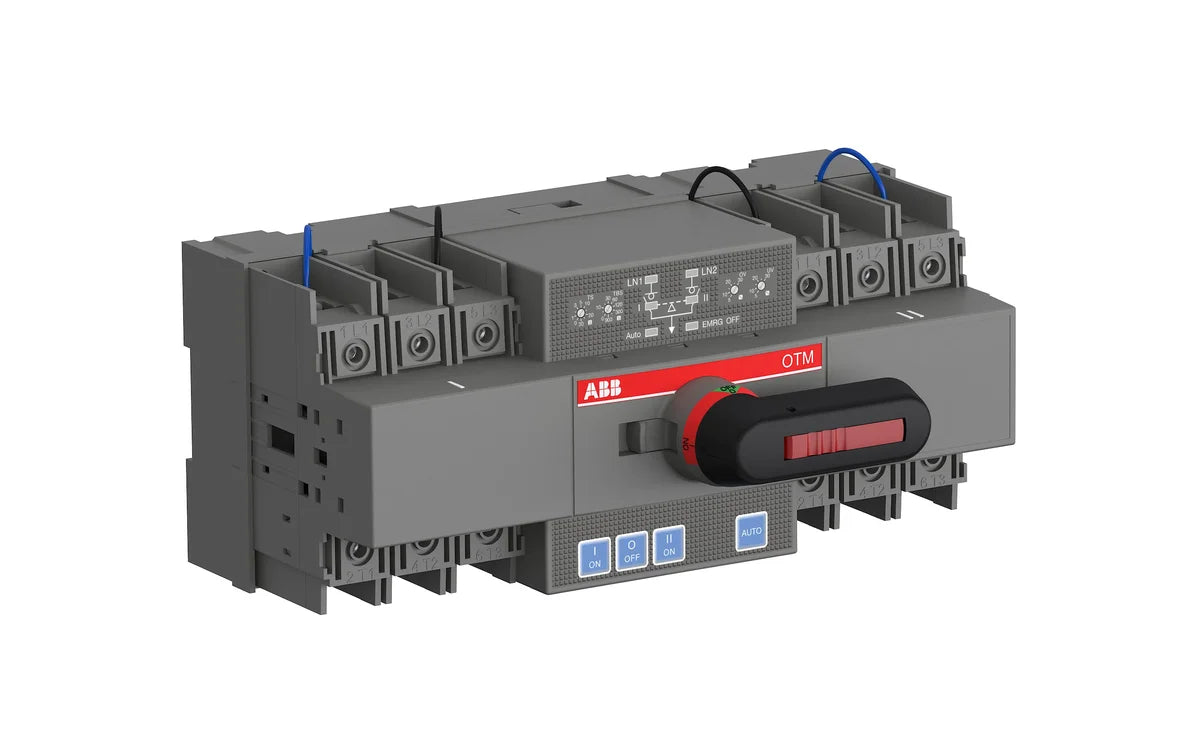

OTMABB 1SCA151422R1001 OTM63F2C21D230C 2P 63A 230V AC Motorized Compact ATS Switch Disconnector
Description
About the OTM63F2C21D230C
About the OTM63F2C21D230C
The ABB OTM63F2C21D230C (SKU 1SCA151422R1001) is a 2-pole motorized Compact ATS switch disconnector from the ABB OTM series, rated at 63A with a 230V AC coil for automatic transfer switching applications. Designed for base mounting or DIN-rail installation, the OTM63F2C21D230C delivers reliable source changeover in a compact footprint suitable for control panels and distribution boards. This IEC60947-compliant device is engineered for industrial and commercial power reliability applications.
Certifications & Standards
- RoHS: Compliant with the Restriction of Hazardous Substances Directive, confirming the product is free from restricted hazardous materials.
- REACH: Compliant with EU REACH regulation concerning the registration, evaluation, authorisation and restriction of chemicals.
- IEC 60947: Designed and tested in accordance with IEC 60947, the international standard for low-voltage switchgear and controlgear.
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal and recycling.
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 233 mm, 9.17 in |
|---|---|
| Product Net Height | 103 mm, 4.06 in |
| Product Net Depth / Length | 131 mm, 5.16 in |
| Product Net Weight | 1.85 kg |
Show all 57 specifications ↓ Show less ↑50 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 13
| Part number | 1SCA151422R1001 |
|---|---|
| Type designation | OTM63F2C21D230C |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019818276 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Last Ordering Date | 2027-03-31 All Countries |
| Country of Origin | China |
Technical 23
| Controller Type | 21D |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct Mount |
| Motor Operational Voltage | 220…240 V AC |
| Mounting Type | Base Mounting Or DIN-rail mounting |
| Number of Poles | 2P |
| Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-32B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 30 kW |
| Rated Operational Voltage | Main Circuit 220…240 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open |
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 103 mm |
| Package Level 1 Depth / Length | 275 mm |
| Package Level 1 Height | 168 mm |
| Package Level 1 Gross Weight | 2.05 kg |
| Package Level 1 EAN | 6417019818276 |
| Shipping weight | 1.85 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA151422R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
Quick answers
Questions about the OTM63F2C21D230C
What is the HS code of OTM63F2C21D230C for customs?
The tariff (HS) code on file for OTM63F2C21D230C is 85365080.
What is the EAN of OTM63F2C21D230C?
The EAN (GTIN) of OTM63F2C21D230C is 6417019818276.
Where does OTM63F2C21D230C ship from, and how fast?
OTM63F2C21D230C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
