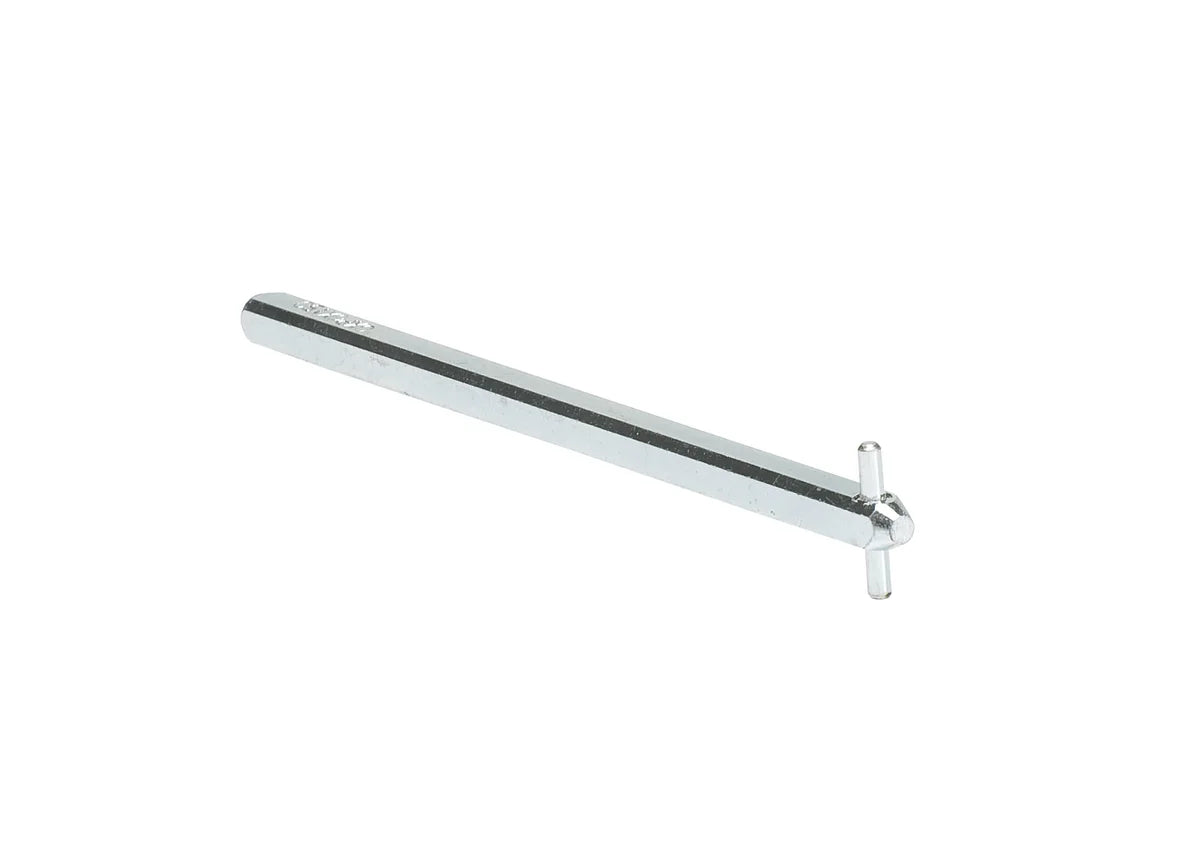

ABB 1SCA022295R5600 OXP6X150 6x6x150mm Switch Operating Shaft

The ABB OXP6X150 (SKU: 1SCA022295R5600) is a switch operating shaft designed for use with ABB enclosed switches and related switchgear assemblies. Measuring 6 x 6 x 150 mm and weighing just 35 grams, this precision-machined shaft transmits rotary motion from an external operator handle to the internal switch mechanism, enabling reliable manual control of switching operations. The OXP6X150 is an essential mechanical interface component for engineers specifying or maintaining ABB switch enclosure solutions in industrial control panels and automation systems.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with the Restriction of Hazardous Substances Directive — free from restricted hazardous materials
• REACH: Compliant with EU REACH regulation on chemical substances used in electrical components
• WEEE: Registered and compliant with the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

• Mechanical drive shaft for ABB enclosed switch operators and rotary handle mechanisms
• Control panel integration where external door-mounted handles must couple to internal switch actuators
• Industrial automation and machinery requiring reliable manual operator interfaces
• Replacement or spare part for existing ABB switchgear installations referencing catalog no. OXP6X150
