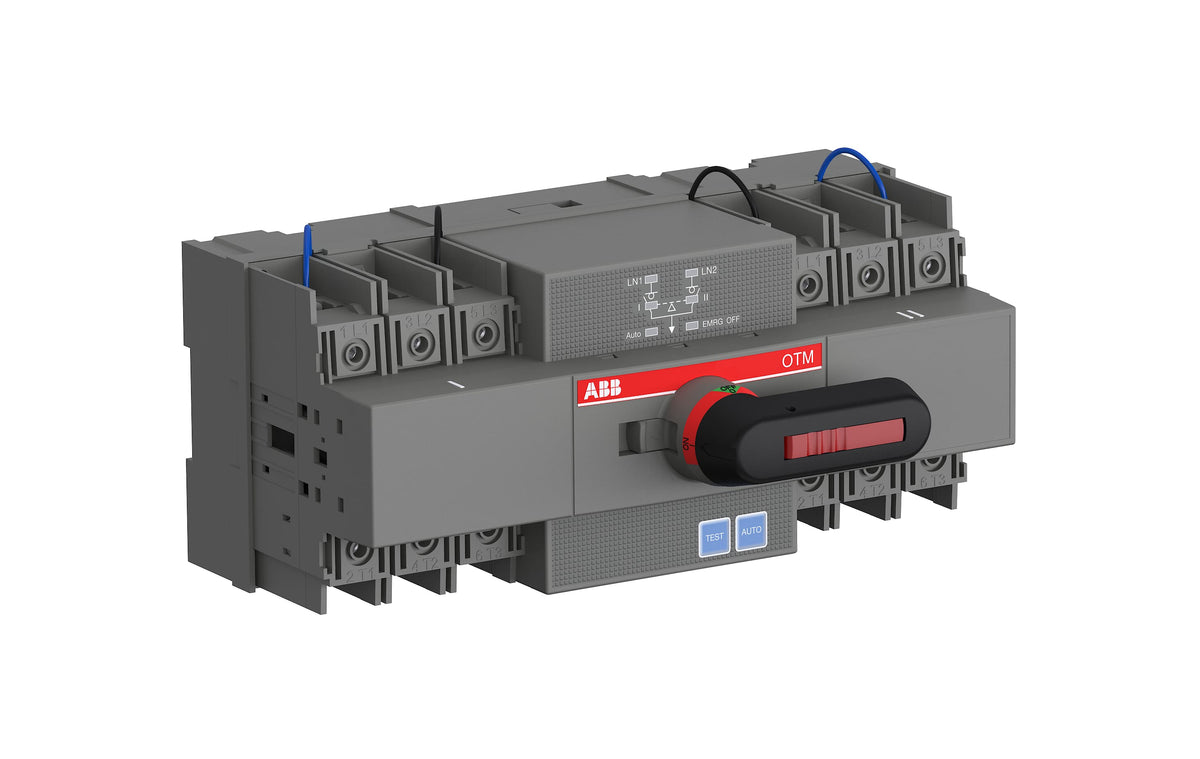

ABB 1SCA151417R1001 OTM125F2C20D230C 2P Open Transition Automatic Transfer Switch

% $-754.40
ABB 1SCA151417R1001 OTM125F2C20D230C Automatic Transfer Switch - 2P 125A 220-240V
ABB 1SCA151417R1001 OTM125F2C20D230C Automatic Transfer Switch - 2P 125A 220-240V

ABB 1SCA151417R1001 OTM125F2C20D230C 2P Open Transition Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA151417R1001
Catalog No: OTM125F2C20D230C
Series: Compact ATS
Tariff Code (HS): 853650
Rated Current: 125
Rated Voltage: 220/240 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$754.40

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA151417R1001 OTM125F2C20D230C is a self-contained, 2-pole automatic transfer switch rated 125 A at up to 800 V, with a built-in 20D controller and a 220-240 V AC motor operator for 1-0-2 open-transition switching. It mounts on base rails or DIN-rail and carries a 2.5 kA short-time withstand current (Icw, 1 s).

Technical Specifications

SKU 1SCA151417R1001
Brand ABB
Series Compact ATS
Catalog Designation OTM125F2C20D230C
EAN 6417019818221
Number of Poles 2P
Controller Type 20D
Transition Type 1-0-2 Open
Rated Operational Voltage (Main Circuit) 220-240 V
Rated Operational Current AC-21A/AC-22A (Ie) 125 A
Rated Operational Current AC-23A (Ie) 90 A
Rated Operational Current AC-31B/AC-32B (Ie) 125 A
Rated Operational Current AC-33B (Ie) 80 A
Rated Operational Power AC-23A (Pe) 45 kW
Rated Short-time Withstand Current (Icw) 2.5 kA for 1 s
Rated Insulation Voltage (Ui) 800 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Conventional Free-air Thermal Current (Ith) 125 A
Motor Operational Voltage 220-240 V AC
Handle Type Direct Mount
Degree of Protection IP20 (front)
Mounting Type Base or DIN-rail mounting
Terminal Type Screw terminals
Net Dimensions (W x H x D) 233 x 103 x 131 mm
Net Weight 1.75 kg

Selection Notes

With the 20D controller built in, this unit is self-supplied and needs no separate transfer-logic panel, unlike larger changeover switches that pair a bare mechanism with external control wiring. DIN-rail or base mounting gives flexibility in small distribution boards where the 233 x 103 x 131 mm footprint has to fit a standard enclosure. Pick this 2-pole 220-240 V version for single-phase or line-neutral transfer; a 3-pole 400 V unit covers three-phase sources in the same compact frame.

Technical Details

Short Description
2-pole self-contained automatic transfer switch, 125 A, 220-240V AC, built-in 20D controller, 2.5 kA Icw.
Rated Current (Ampere)
125
Rated Voltage (VAC)
220/240 V
Mounting Type
Base or DIN-rail mounting
Protection Type
IP20
Catalog No
OTM125F2C20D230C
Number of Poles
2P
Delivery Date (Days)
30 days
Model Number
OTM125F2C20D230C
Tariff Code
853650
