ABB 1SCA151255R1001 OTM63F4C21D400C 4P Icw 2.5kA Automatic Transfer Switch

% $-944.15

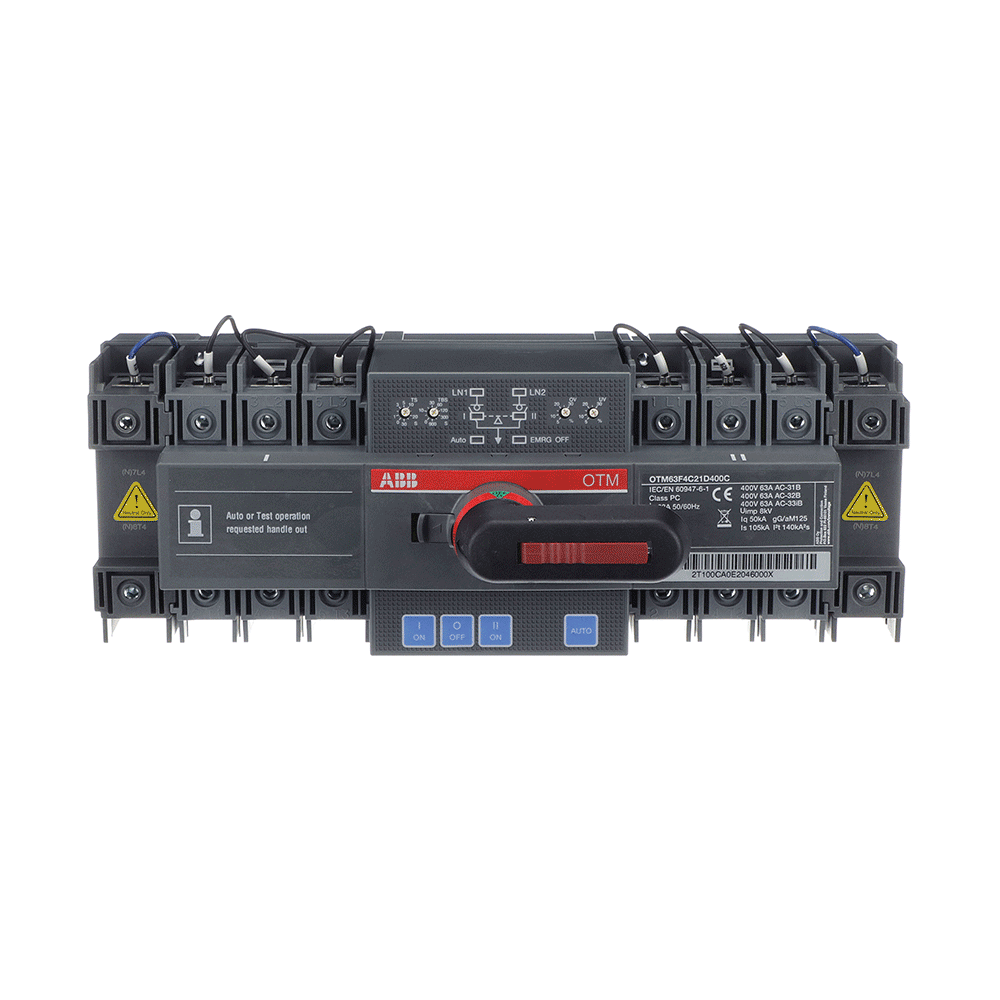

ABB OTM63F4C21D400C automatic transfer switch - 63A 4P
ABB OTM63F4C21D400C automatic transfer switch - 63A 4P

ABB 1SCA151255R1001 OTM63F4C21D400C 4P Icw 2.5kA Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA151255R1001
Catalog No: OTM63F4C21D400C
Series: Compact ATS
Tariff Code (HS): 853650
Rated Current: 63
Rated Voltage: 380/415 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$944.15

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA151255R1001 (OTM63F4C21D400C) is a self-supplied, motor-operated automatic transfer switch rated 63 A at 4 poles, built for 1-0-2 open-transition switching between two power sources. Its 21D controller handles the transfer logic on board, and the unit withstands 2.5 kA for 1 s (Icw) during a downstream fault, before the upstream protection device needs to clear it.

Technical Specifications

Catalog No OTM63F4C21D400C
SKU 1SCA151255R1001
Brand ABB
Series Compact ATS
EAN 6417019815688
Degree of Protection Front IP20
Pollution Degree 3
Net Width 286 mm
Net Height 103 mm
Net Depth 131 mm
Net Weight 2.11 kg
Controller Type 21D
Conventional Free-air Thermal Current (Ith) 63 A at 40 degrees C
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Position of Line Terminals Supplies on Top - Load on Bottom
Motor Operational Voltage 380...415 V AC
Mounting Type Base mounting or DIN-rail mounting
Rated Operational Voltage (Main Circuit) 380...415 V
Rated Operational Current AC-23A (Ie) 63 A (380-415 V)
Rated Operational Power AC-23A (Pe) 30 kW (380-415 V)
Rated Insulation Voltage (Ui) 800 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Short-time Withstand Current (Icw) 2.5 kA for 1 s
Terminal Type Screw terminals
Transition Type Open

Selection Notes

The 21D controller on this 63 A unit is self-supplied, so it needs no external control transformer or UPS to run the automatic transfer logic. Icw of 2.5 kA for 1 s sets how long the switch can carry a downstream fault before the upstream breaker must clear it - size the upstream protection trip time accordingly. Choose the base or DIN-rail mounting to fit panel depth constraints rather than relying on a fixed mounting plate.

Technical Details

Short Description
ABB OTM63F4C21D400C automatic transfer switch, 4P, 63 A, self-supplied 21D controller, Icw 2.5 kA, 380-415 V AC.
Rated Current (Ampere)
63
Rated Voltage (VAC)
380/415 V
Mounting Type
Base mounting or DIN-rail mounting
Protection Type
IP20
Catalog No
OTM63F4C21D400C
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
OTM63F4C21D400C
Tariff Code
853650
