ABB 1SCA151253R1001 OTM40F4C21D400C 4P 2.5 kA Icw Automatic Transfer Switch

% $-920.00

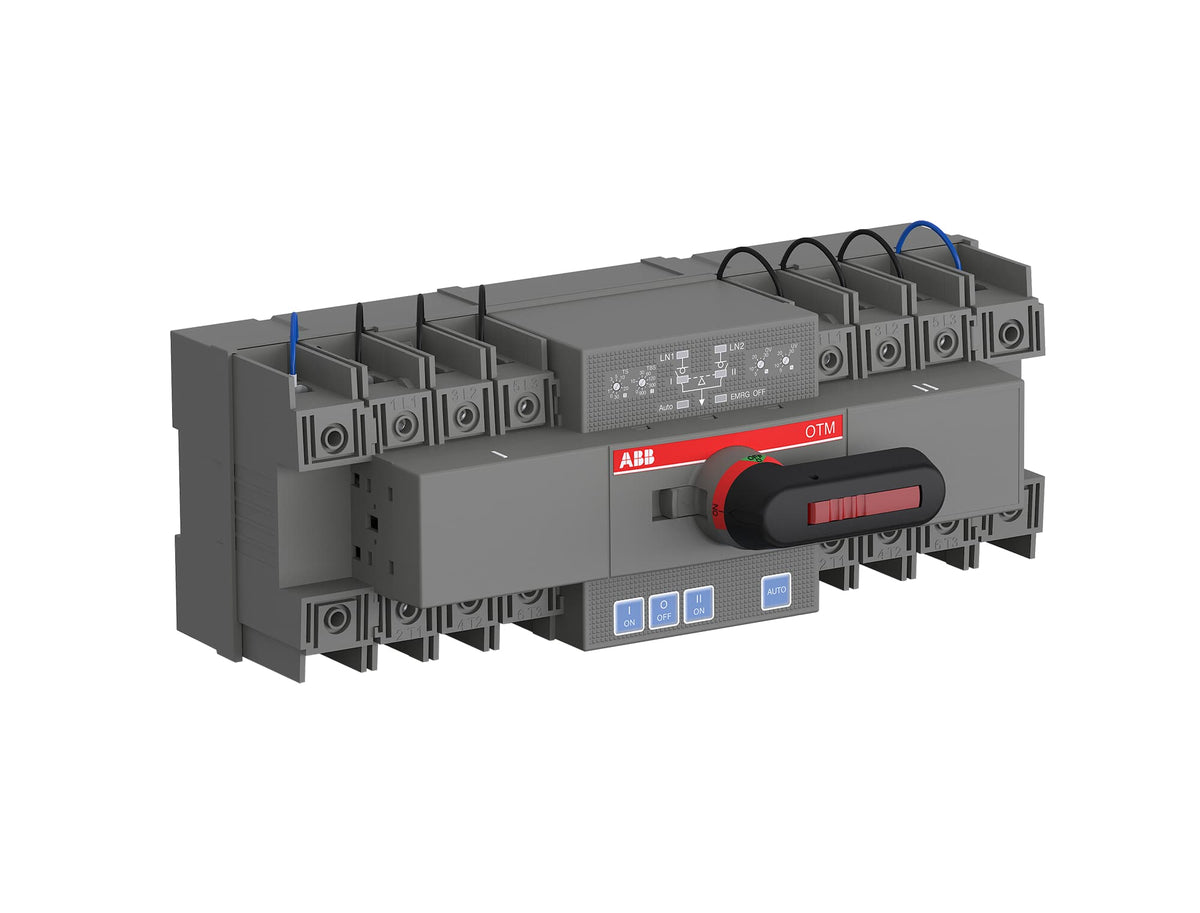

ABB 1SCA151253R1001 OTM40F4C21D400C automatic transfer switch - 40A 4P
ABB 1SCA151253R1001 OTM40F4C21D400C automatic transfer switch - 40A 4P

ABB 1SCA151253R1001 OTM40F4C21D400C 4P 2.5 kA Icw Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA151253R1001
Catalog No: OTM40F4C21D400C
Series: Compact ATS
Tariff Code (HS): 853650
Rated Current: 40
Rated Voltage: 380/415 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$920.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 40 A at 4 poles, the ABB 1SCA151253R1001 OTM40F4C21D400C is a self-supplied automatic transfer switch for 380-415 V AC mains-generator installations. Its type 21D control module offers adjustable operating parameters, so switching delays and voltage thresholds can be tuned to the site rather than left at a factory default. It withstands 2.5 kA for 1 s and mounts on a DIN rail.

Technical Specifications

SKU 1SCA151253R1001
Brand ABB
Series Compact ATS
Catalog Designation OTM40F4C21D400C
EAN 6417019815664
Number of Poles 4P
Controller Type 21D - Adjustable Operating Parameters
Transition Type Open (1-0-2)
Rated Operational Voltage, Main Circuit 380-415 V
Motor Operational Voltage 380-415 V AC
Rated Operational Current AC-21A (Ie) 40 A
Rated Operational Current AC-23A (Ie) 40 A
Rated Operational Power AC-23A (Pe) 18.5 kW
Conventional Free-air Thermal Current (Ith) 40 A at 40 degC
Rated Short-time Withstand Current (Icw) 2.5 kA for 1 s
Rated Insulation Voltage (Ui) 800 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Degree of Protection IP20 (front)
Mounting Type Base mounting or DIN-rail mounting
Terminal Type Screw terminals
Power Loss per Pole 1.6 W
Net Dimensions (W x H x D) 286 x 103 x 131 mm
Net Weight 2.11 kg

Selection Notes

The 21D controller gives the 1SCA151253R1001 field-adjustable switching delay and voltage thresholds at the 40 A, 4-pole end of ABB's Compact ATS range, useful where a small generator needs a longer stabilization delay before the load transfers. Against the fixed-parameter 20D unit in the same frame, the trade-off is a few grams of extra weight (2.11 kg vs 2 kg) for configurable settings; where standard timing is already acceptable, the 20D version needs no on-site configuration at all.

Technical Details

Short Description
ABB OTM40F4C21D400C - 40A 4P self-supplied automatic transfer switch, adjustable control, 2.5kA Icw, 380-415V AC.
Rated Current (Ampere)
40
Rated Voltage (VAC)
380/415 V
Mounting Type
Base Mounting or DIN-Rail Mounting
Protection Type
IP20
Catalog No
OTM40F4C21D400C
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
OTM40F4C21D400C
Tariff Code
853650
