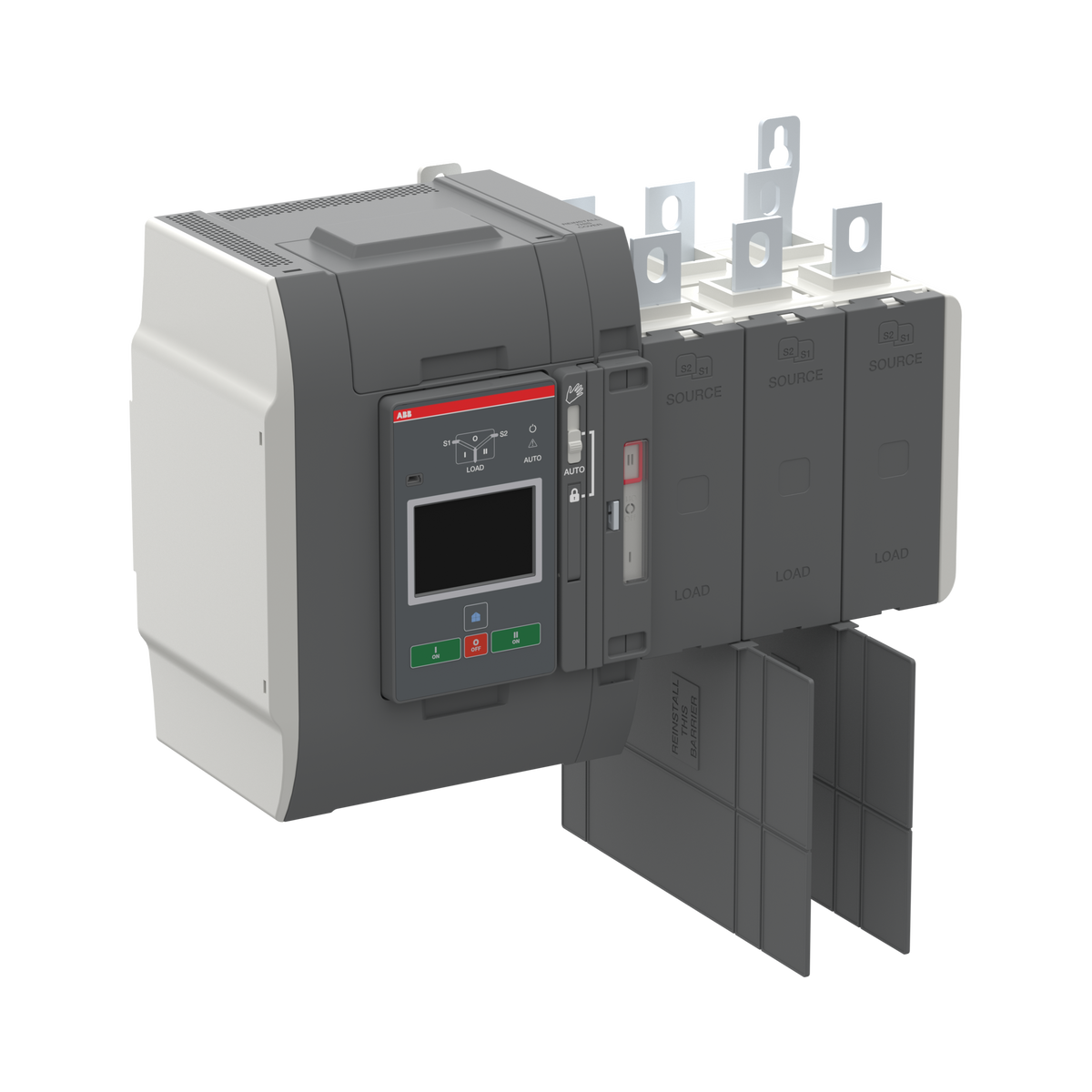

ABB 1SCA151068R1001 OXB630E3X4QT 3P Level 4 Touch Automatic Transfer Switch

% $-4,838.05
ABB 1SCA151068R1001 OXB630E3X4QT Automatic Transfer Switch - 630A 3P
ABB 1SCA151068R1001 OXB630E3X4QT Automatic Transfer Switch - 630A 3P

ABB 1SCA151068R1001 OXB630E3X4QT 3P Level 4 Touch Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA151068R1001
Catalog No: OXB630E3X4QT
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 630
Rated Voltage: 200/480 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,838.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 1SCA151068R1001, catalog designation OXB630E3X4QT, is a 3-pole TruONE automatic transfer switch rated 630 A with a Level 4 touchscreen controller for source monitoring and transfer logic. Supply enters at the top and load connects at the bottom, and the switch withstands 42 kA for 0.1 s, so it holds through a short circuit until upstream protection operates.

Technical Specifications

SKU 1SCA151068R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB630E3X4QT
EAN 6417019813257
Number of Poles 3P
Rated Operational Voltage 200-480 V AC (Main Circuit)
Rated Operational Current (Ie), AC-31B 630 A (200-415 V AC)
Conventional Free-air Thermal Current (Ith) 630 A at 40°C
Rated Short-time Withstand Current (Icw) 42 kA for 0.1 s
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Frequency 50-60 Hz
Controller Type Level 4 (Touch)
Transition Type Delayed
Position of Line Terminals Supplies on Top - Load on Bottom
Terminal Type Bolt
Handle Type Direct Mount
Degree of Protection Front IP20
Pollution Degree 3
Power Loss 28 W per pole, 84 W total
Dimensions (W x H x D) 447 x 313 x 212 mm
Net Weight 19.35 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

This 630E3X4QT shares the Level 4 touchscreen controller with 1SCA151067R1001 but reverses the terminal layout to top-fed supply and bottom-fed load, so the choice between the two comes down to cable routing in the switchgear enclosure rather than electrical rating. Both are 630 A, 3-pole, 42 kA short-time withstand units.

Technical Details

Short Description
ABB OXB630E3X4QT TruONE ATS, 3P 630A, Level 4 touch controller, supplies top/load bottom, Icw 42kA, 200-480V AC.
Rated Current (Ampere)
630
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB630E3X4QT
Number of Poles
3P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB630E3X4QT
Tariff Code
853650
