ABB 1SCA150943R1001 OXB800E3X3QT 3P Level 3 LCD Automatic Transfer Switch

% $-5,758.05
ABB 1SCA150943R1001 OXB800E3X3QT Automatic Transfer Switch - 800A 3P
ABB 1SCA150943R1001 OXB800E3X3QT Automatic Transfer Switch - 800A 3P

ABB 1SCA150943R1001 OXB800E3X3QT 3P Level 3 LCD Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA150943R1001
Catalog No: OXB800E3X3QT
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 800
Rated Voltage: 200/480 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5,758.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

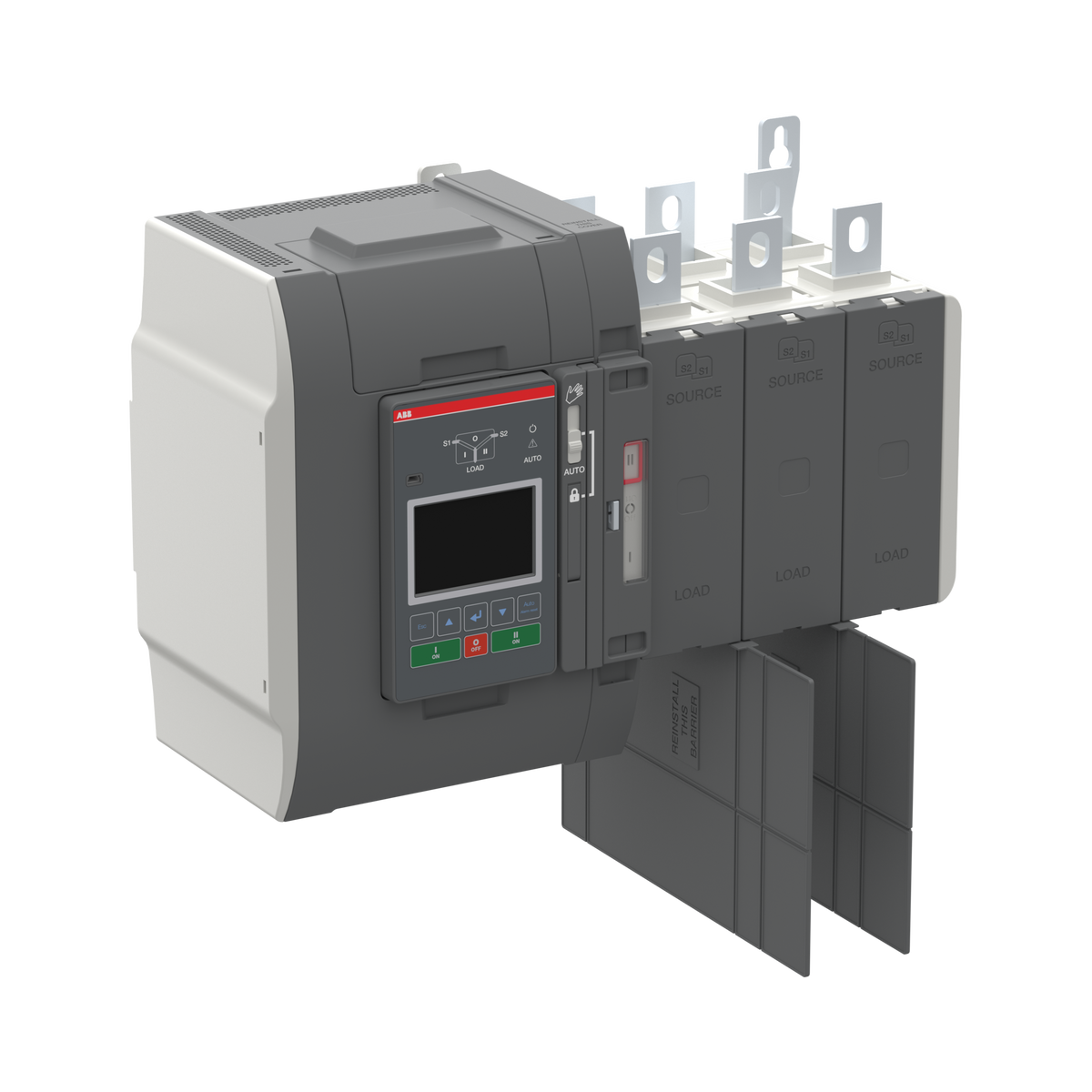

The ABB 1SCA150943R1001 OXB800E3X3QT TruONE automatic transfer switch pairs an 800 A, 3-pole switching block with a Level 3 LCD controller for local source and transfer-state readout. Supply connects at the top, load at the bottom, and the switch withstands 42 kA for 0.1 s at 200-480 V AC, with a 1000 V rated insulation voltage.

Technical Specifications

SKU 1SCA150943R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB800E3X3QT
EAN 6417019811796
Number of Poles 3P
Rated Operational Voltage 200-480 V AC (Main Circuit)
Rated Operational Current (Ie), AC-31B 800 A (200-415 V AC)
Conventional Free-air Thermal Current (Ith) 800 A at 40°C
Rated Short-time Withstand Current (Icw) 42 kA for 0.1 s
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Frequency 50-60 Hz
Controller Type Level 3 (LCD)
Transition Type Delayed
Position of Line Terminals Supplies on Top - Load on Bottom
Terminal Type Bolt
Handle Type Direct Mount
Degree of Protection Front IP20
Pollution Degree 3
Power Loss 47 W per pole, 141 W total
Dimensions (W x H x D) 447 x 313 x 212 mm
Net Weight 19.15 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

1SCA150943R1001 is the top-fed version of the Level 3 LCD, 3-pole, 800 A frame also sold as the bottom-fed OXB800E3X3QB (1SCA150942R1001); both carry the same 1000 V rated insulation voltage and 42 kA short-time withstand current, so the terminal orientation alone decides which to specify for a given enclosure layout.

Technical Details

Short Description
ABB OXB800E3X3QT TruONE ATS, 3P 800A, Level 3 LCD controller, supplies top/load bottom, Icw 42kA, 200-480V AC.
Rated Current (Ampere)
800
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB800E3X3QT
Number of Poles
3P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB800E3X3QT
Tariff Code
853650
