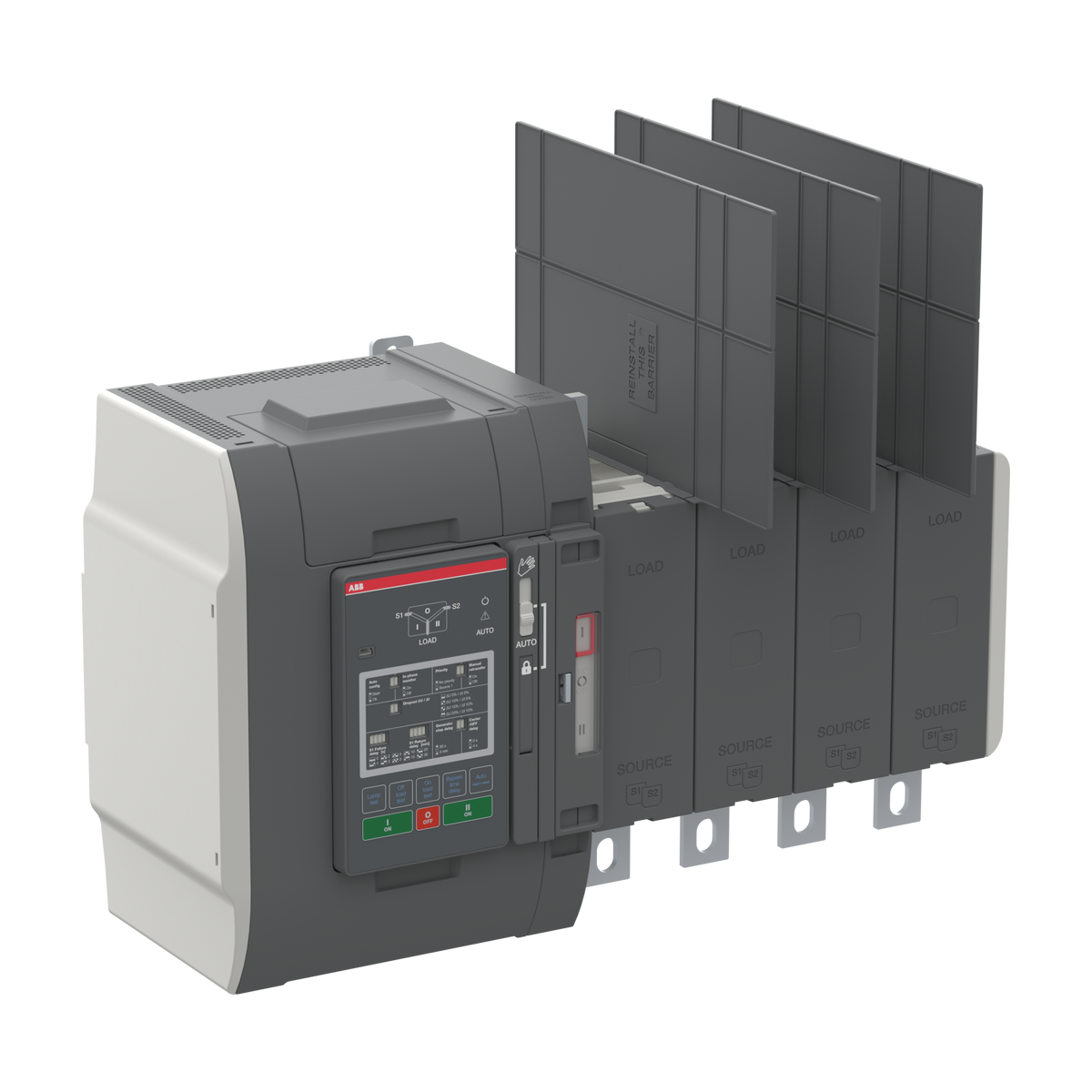

ABB 1SCA150934R1001 OXB800E3S2QB 4P Level 2 DIP Automatic Transfer Switch

% $-4,808.15
ABB 1SCA150934R1001 OXB800E3S2QB Automatic Transfer Switch - 800A 4P
ABB 1SCA150934R1001 OXB800E3S2QB Automatic Transfer Switch - 800A 4P

ABB 1SCA150934R1001 OXB800E3S2QB 4P Level 2 DIP Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA150934R1001
Catalog No: OXB800E3S2QB
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 800
Rated Voltage: 200/480 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,808.15

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA150934R1001 OXB800E3S2QB is a 4-pole TruONE automatic transfer switch rated 800 A, with the fourth pole switched for simultaneous neutral transfer alongside the three phase poles. Its Level 2 DIP controller handles the basic transfer sequence, line terminals enter from the bottom, and the switch carries a 42 kA short-time withstand rating at 200-480 V AC.

Technical Specifications

SKU 1SCA150934R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB800E3S2QB
EAN 6417019811703
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Fourth Pole Position Left and Right Side
Rated Operational Voltage 200-480 V AC (Main Circuit)
Rated Operational Current (Ie), AC-31B/32B/33B 800 A (200-415 V AC)
Conventional Free-air Thermal Current (Ith) 800 A at 40°C
Rated Short-time Withstand Current (Icw) 42 kA for 0.1 s
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Frequency 50-60 Hz
Controller Type Level 2 (DIP)
Transition Type Delayed
Position of Line Terminals Supplies on Bottom - Load on Top
Terminal Type Bolt
Handle Type Direct Mount
Degree of Protection Front IP20
Pollution Degree 3
Power Loss 47 W per pole, 141 W total
Dimensions (W x H x D) 512 x 313 x 212 mm
Net Weight 21.4 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

The 'S2' in OXB800E3S2QB indicates the 4-pole version with the fourth pole switched simultaneously with the three line poles, and the Level 2 DIP-switch controller for basic transfer timing - the entry point in the 800 A controller tier. Choose this 4-pole switched-neutral unit over the 3-pole 'X' variants whenever the downstream system needs the neutral conductor interrupted during transfer, such as on a TN-S distribution board.

Technical Details

Short Description
ABB OXB800E3S2QB TruONE ATS, 4P 800A switched neutral, Level 2 DIP controller, Icw 42kA, 200-480V AC.
Rated Current (Ampere)
800
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB800E3S2QB
Number of Poles
4P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB800E3S2QB
Tariff Code
853650
