ABB 1SCA150192R1001 OXES250G1L/4 Large Terminal Shroud - Transfer Switch Accessory

% $-36.44

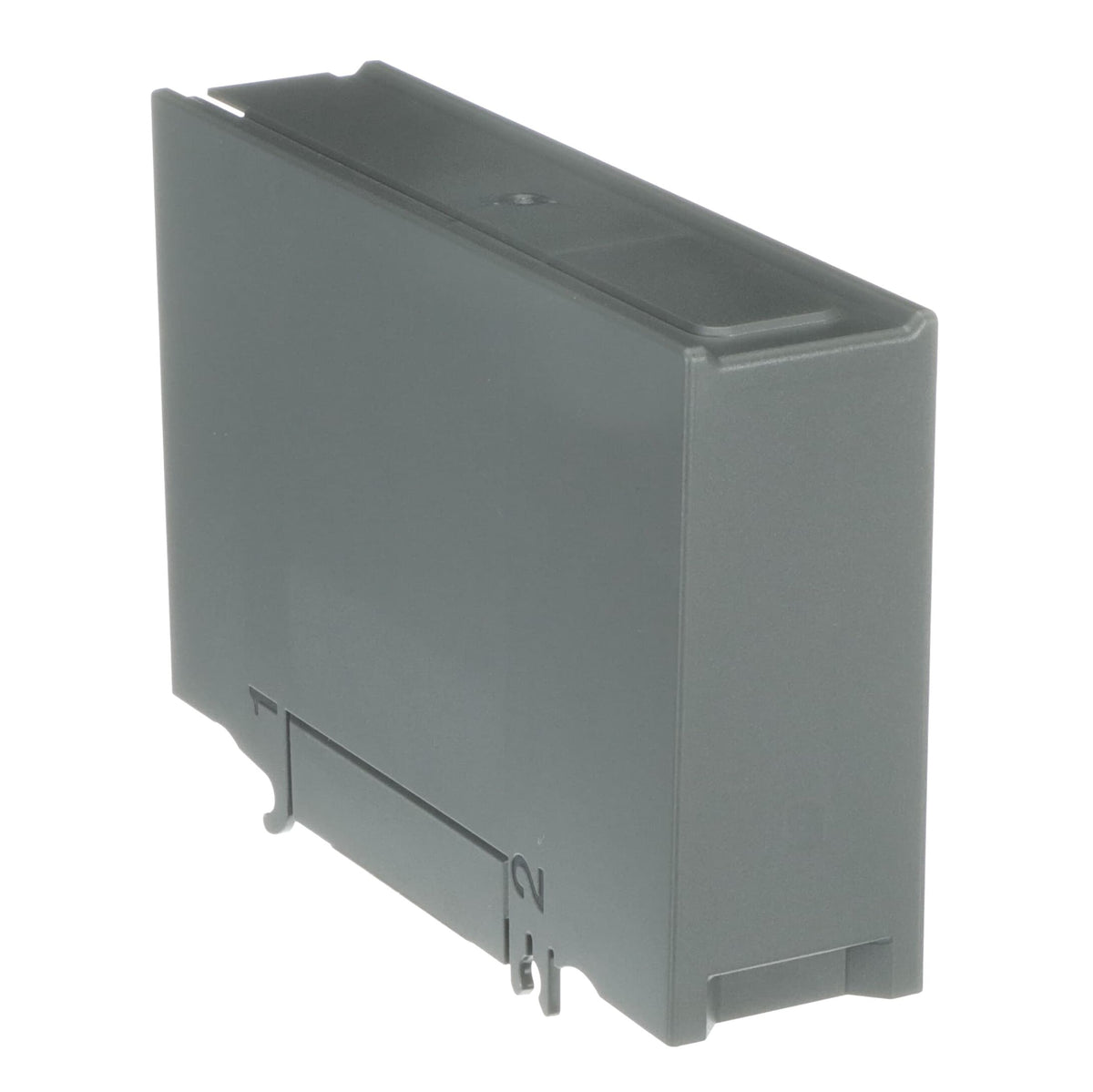

ABB 1SCA150192R1001 OXES250G1L/4 Terminal Shroud - 45x117x165mm
ABB 1SCA150192R1001 OXES250G1L/4 Terminal Shroud - 45x117x165mm

ABB 1SCA150192R1001 OXES250G1L/4 Large Terminal Shroud - Transfer Switch Accessory

Brand: ABB
Reference No: 1SCA150192R1001
Catalog No: OXES250G1L/4
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853890
Stock: 2
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$36.44

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA150192R1001 (OXES250G1L/4) is a terminal shroud for the TruONE OXB automatic transfer switch range, fitting over the line or load terminals to add a touch-safe insulating cover. It measures 45 x 117 x 165 mm and weighs 0.43 kg, and is the taller (L) variant of the OXES250 shroud pair.

Technical Specifications

SKU 1SCA150192R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXES250G1L/4
EAN 6417019801513
Product Net Width 45 mm
Product Net Height 117 mm
Product Net Depth 165 mm
Net Weight 0.43 kg

Selection Notes

The 'L' suffix on OXES250G1L/4 marks the taller terminal shroud for the 447 mm wide, 3-pole OXB frame, sized to cover the larger terminal stack on those units. Order the 'S' variant, 1SCA150194R1001, instead when the installed OXB unit has the shorter terminal arrangement that the compact shroud is built for.

Technical Details

Short Description
ABB OXES250G1L/4 terminal shroud, tall version, for TruONE OXB 3P/4P switches, 45x117x165mm, 0.43kg.
Catalog No
OXES250G1L/4
Delivery Date (Days)
30 days
Model Number
OXES250G1L/4
Tariff Code
853890
