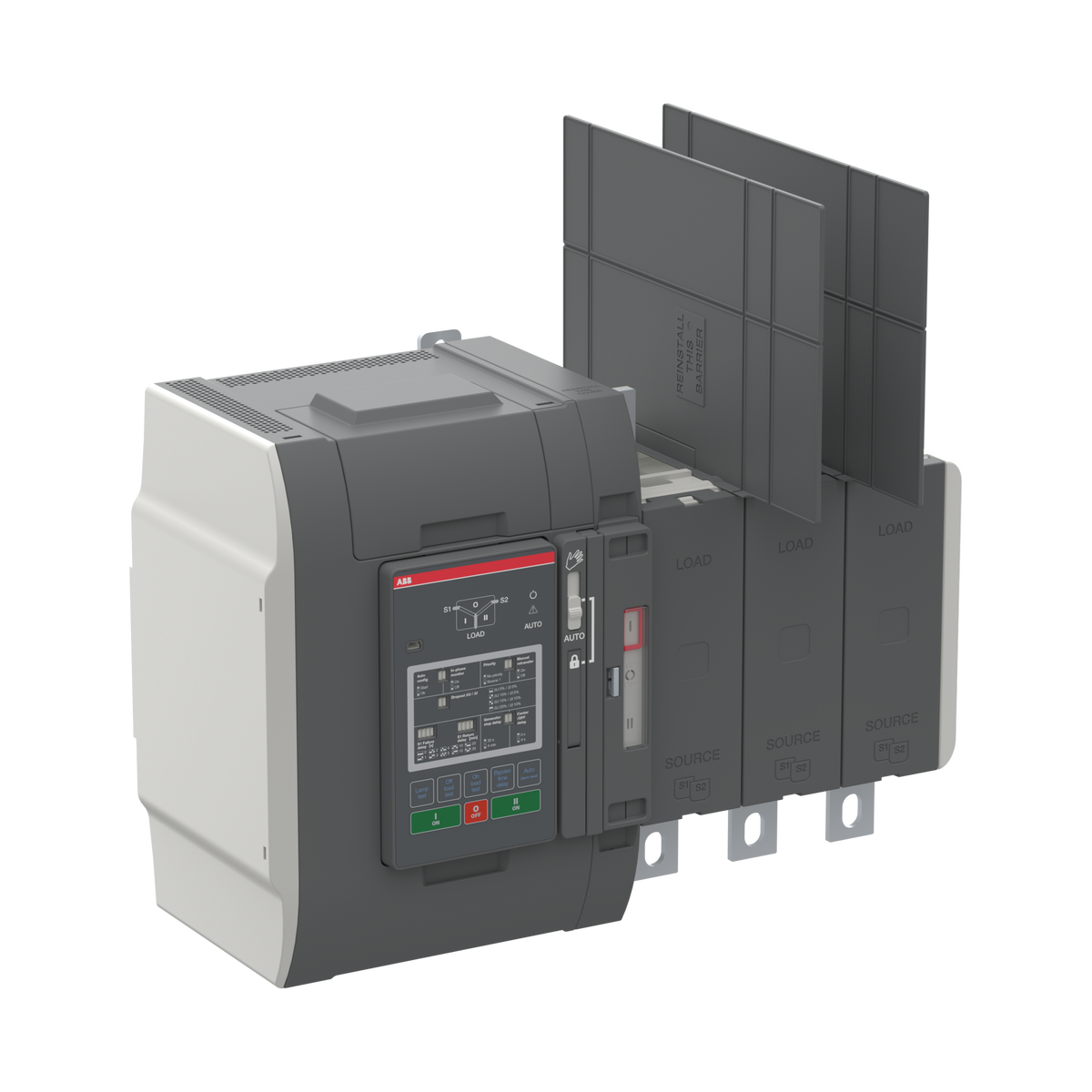

ABB 1SCA149960R1001 OXB800E3X2QB 3P Level 2 DIP Automatic Transfer Switch

% $-4,663.25
ABB 1SCA149960R1001 OXB800E3X2QB Automatic Transfer Switch - 800A 3P
ABB 1SCA149960R1001 OXB800E3X2QB Automatic Transfer Switch - 800A 3P

ABB 1SCA149960R1001 OXB800E3X2QB 3P Level 2 DIP Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA149960R1001
Catalog No: OXB800E3X2QB
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 800
Rated Voltage: 200/480 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,663.25

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SCA149960R1001, catalog code OXB800E3X2QB, is a 3-pole TruONE automatic transfer switch rated 800 A, intended for installations that do not need a switched neutral. The Level 2 DIP controller sets the basic transfer parameters, supply connects at the bottom, and the switch withstands 42 kA for 0.1 s at 200-480 V AC.

Technical Specifications

SKU 1SCA149960R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB800E3X2QB
EAN 6417019799865
Number of Poles 3P
Rated Operational Voltage 200-480 V AC (Main Circuit)
Rated Operational Current (Ie), AC-31B/32B/33B 800 A (200-415 V AC)
Conventional Free-air Thermal Current (Ith) 800 A at 40°C
Rated Short-time Withstand Current (Icw) 42 kA for 0.1 s
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Frequency 50-60 Hz
Controller Type Level 2 (DIP)
Transition Type Delayed
Position of Line Terminals Supplies on Bottom - Load on Top
Terminal Type Bolt
Handle Type Direct Mount
Degree of Protection Front IP20
Pollution Degree 3
Power Loss 47 W per pole, 141 W total
Dimensions (W x H x D) 447 x 313 x 212 mm
Net Weight 19.12 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

The 'X2' in OXB800E3X2QB is the 3-pole, non-switched-neutral 800 A frame with the entry-level Level 2 DIP controller. Pick the 3-pole 'X' range over the 4-pole 'S' siblings when the installation's neutral does not need to be interrupted during a transfer, keeping the controller selection (DIP vs LCD vs touchscreen) independent of the pole count.

Technical Details

Short Description
ABB OXB800E3X2QB TruONE ATS, 3P 800A, Level 2 DIP controller, supplies bottom/load top, Icw 42kA, 200-480V AC.
Rated Current (Ampere)
800
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB800E3X2QB
Number of Poles
3P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB800E3X2QB
Tariff Code
853650
