ABB 1SCA149958R1001 OXB800E3S3QB 4P Level 3 LCD Automatic Transfer Switch

% $-5,936.30

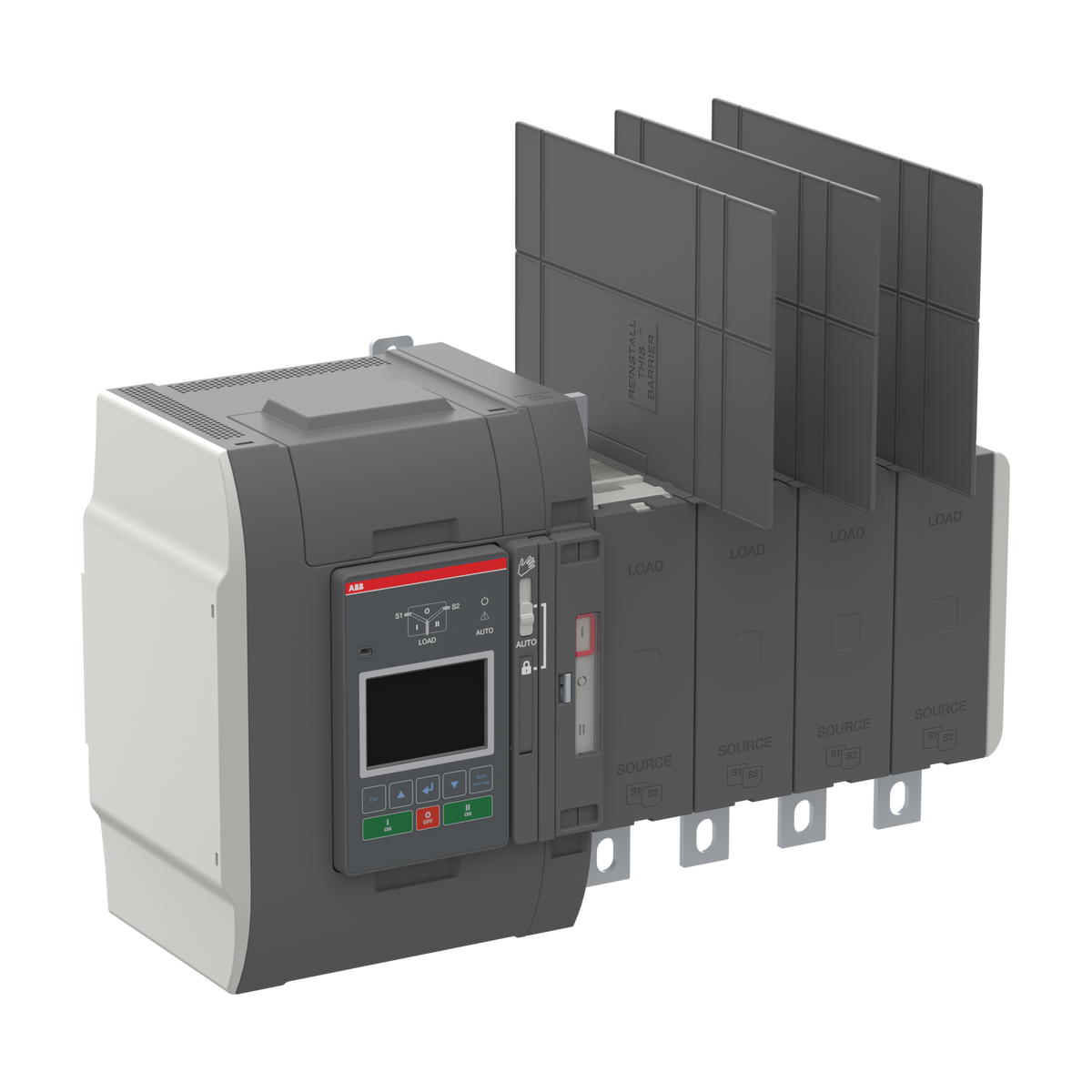

ABB 1SCA149958R1001 OXB800E3S3QB Automatic Transfer Switch - 800A 4P
ABB 1SCA149958R1001 OXB800E3S3QB Automatic Transfer Switch - 800A 4P

ABB 1SCA149958R1001 OXB800E3S3QB 4P Level 3 LCD Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA149958R1001
Catalog No: OXB800E3S3QB
Series: Automatic Transfer Switches TruONE
Tariff Code (HS): 853650
Rated Current: 800
Rated Voltage: 200/480 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5,936.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SCA149958R1001, designation OXB800E3S3QB, is an 800 A, 4-pole TruONE automatic transfer switch with a switched fourth pole for neutral transfer. A Level 3 LCD controller manages the source-transfer logic, supply enters at the bottom of the unit, and the switch is rated to withstand 42 kA for 0.1 s during a downstream fault.

Technical Specifications

SKU 1SCA149958R1001
Brand ABB
Series Automatic Transfer Switches TruONE
Catalog Designation OXB800E3S3QB
EAN 6417019799841
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Fourth Pole Position Left and Right Side
Rated Operational Voltage 200-480 V AC (Main Circuit)
Rated Operational Current (Ie), AC-31B/32B/33B 800 A (200-415 V AC)
Conventional Free-air Thermal Current (Ith) 800 A at 40°C
Rated Short-time Withstand Current (Icw) 42 kA for 0.1 s
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Frequency 50-60 Hz
Controller Type Level 3 (LCD)
Transition Type Delayed
Position of Line Terminals Supplies on Bottom - Load on Top
Terminal Type Bolt
Handle Type Direct Mount
Degree of Protection Front IP20
Pollution Degree 3
Power Loss 47 W per pole, 141 W total
Dimensions (W x H x D) 512 x 313 x 212 mm
Net Weight 21.4 kg

Certifications & Standards

  • IEC 60947-6-1

Selection Notes

OXB800E3S3QB is the 4-pole, switched-neutral 800 A frame with the Level 3 LCD controller, one step above the DIP-switch Level 2 in 1SCA150934R1001. Move up to this LCD controller when the project needs an on-board display of source voltage and transfer status rather than just DIP-set parameters.

Technical Details

Short Description
ABB OXB800E3S3QB TruONE ATS, 4P 800A switched neutral, Level 3 LCD controller, Icw 42kA, 200-480V AC.
Rated Current (Ampere)
800
Rated Voltage (VAC)
200/480 V AC
Protection Type
IP20
Catalog No
OXB800E3S3QB
Number of Poles
4P
Standards
IEC60947-6-1
Delivery Date (Days)
30 days
Model Number
OXB800E3S3QB
Tariff Code
853650
