ABB 1SCA128482R1001 OT3200E04P 4P 65kA 176kA Switch-Disconnector Switch Disconnector

% $-2,502.98

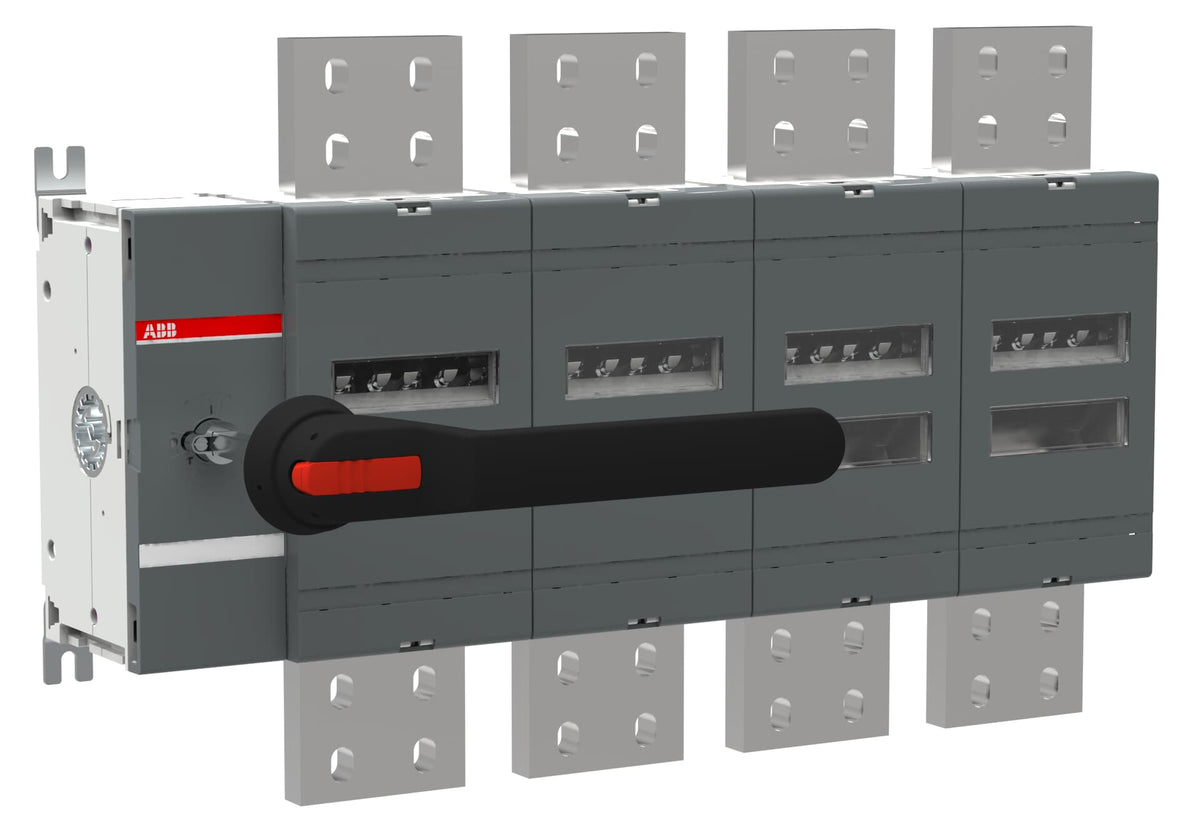

ABB OT3200E04P 1SCA128482R1001 switch-disconnector – 3200A 4P 65kA Icw
ABB OT3200E04P 1SCA128482R1001 switch-disconnector – 3200A 4P 65kA Icw

ABB 1SCA128482R1001 OT3200E04P 4P 65kA 176kA Switch-Disconnector Switch Disconnector

Brand: ABB
Reference No: 1SCA128482R1001
Catalog No: OT3200E04P
Series: Switch Disconnectors
Tariff Code (HS): 853650
Rated Current: 3200
Rated Voltage: 1000 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,502.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB OT3200E04P (SKU 1SCA128482R1001) is a 3200 A, 4-pole switch-disconnector for a 1000 V main circuit, certified to IEC 60947-3. The fourth pole switches simultaneously with the phases, the short-time withstand current (Icw) is rated 65 kA for 1 second, and the making capacity (Icm) is 176 kA at 690 V.

Technical Specifications

Catalog No OT3200E04P
SKU 1SCA128482R1001
Brand ABB
Series Switch Disconnectors
EAN 6417019582689
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Conventional Free-air Thermal Current (Ith) 3200 A
Rated Operational Current AC-22B (Ie) 3200 A (380-415 V)
Rated Short-time Withstand Current (Icw) 65 kA for 1 s
Rated Short-Circuit Making Capacity (Icm) 176 kA (690 V)
Degree of Protection Front IP00
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Terminal Type Lug terminals
Power Loss per Pole 95 W
Net Weight 42.4 kg
Net Dimensions (W x H x D) 654 x 410 x 146 mm

Certifications & Standards

  • IEC/EN 60947-3

Selection Notes

The 4-pole OT3200E04P switches the neutral along with the phases, unlike the 3-pole OT3200E03P in the same frame; both share the 65 kA Icw and 176 kA Icm ratings, so only the pole configuration differs. Specify it for a single 3200 A feed that needs isolating rather than transferring between sources.

Technical Details

Short Description
OT3200E04P 3200 A, 4-pole switch-disconnector, 1000 V, 65 kA Icw, 176 kA Icm, IEC 60947-3.
Rated Current (Ampere)
3200
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP00
Catalog No
OT3200E04P
Number of Poles
4P
Standards
IEC 60947-3
Delivery Date (Days)
30 days
Model Number
OT3200E04P
Tariff Code
853650
