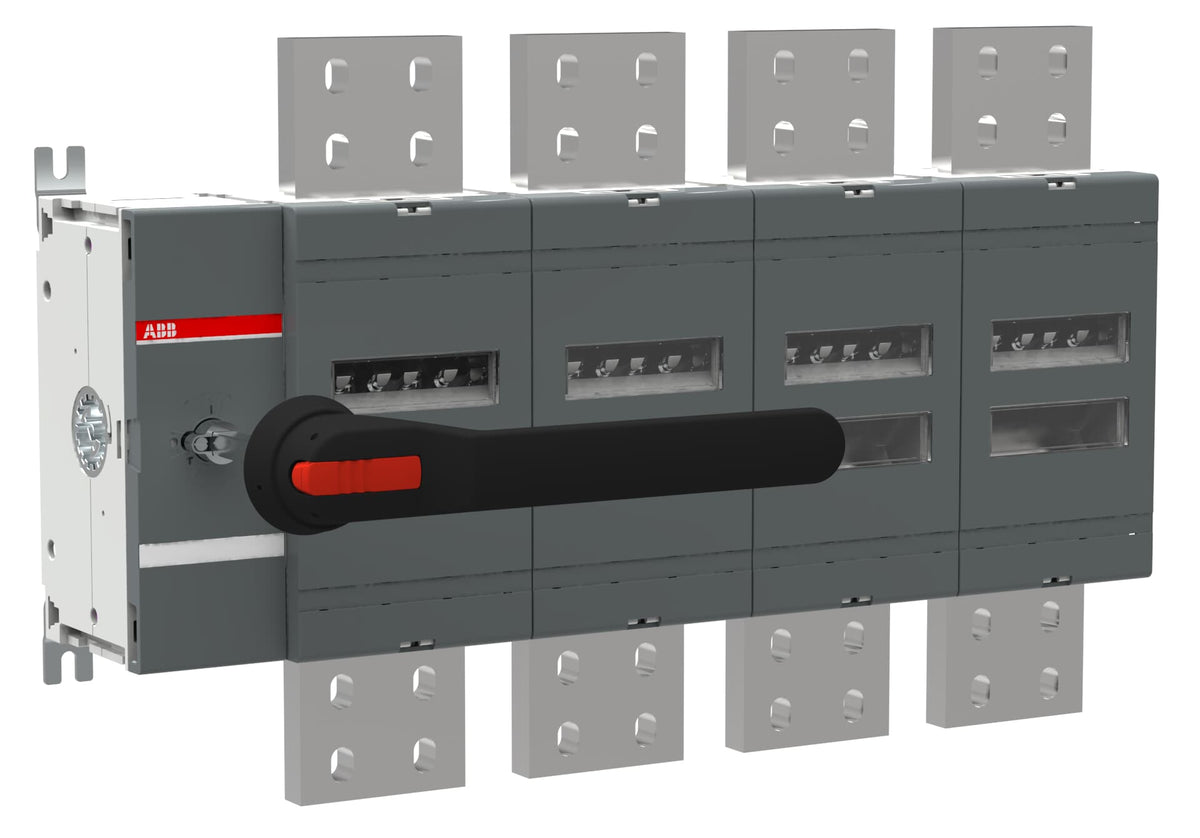

ABB 1SCA124856R1001 OT4000E04P 4P 80kA 176kA Switch-Disconnector Switch Disconnector

% $-3,961.18
ABB OT4000E04P 1SCA124856R1001 switch-disconnector – 3800A 4P 80kA Icw
ABB OT4000E04P 1SCA124856R1001 switch-disconnector – 3800A 4P 80kA Icw

ABB 1SCA124856R1001 OT4000E04P 4P 80kA 176kA Switch-Disconnector Switch Disconnector

Brand: ABB
Reference No: 1SCA124856R1001
Catalog No: OT4000E04P
Series: Switch Disconnectors
Tariff Code (HS): 853650
Rated Current: 3800
Rated Voltage: 1000 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,961.18

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's OT4000E04P (SKU 1SCA124856R1001) is a 4-pole switch-disconnector for a 1000 V main circuit, certified to IEC 60947-3; ABB's verified rating data lists a 3800 A conventional thermal current (Ith) for this catalog number. Its short-time withstand current (Icw) is 80 kA for 1 second and its making capacity (Icm) reaches 176 kA.

Technical Specifications

Catalog No OT4000E04P
SKU 1SCA124856R1001
Brand ABB
Series Switch Disconnectors
EAN 6417019551968
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Conventional Free-air Thermal Current (Ith) 3800 A
Rated Operational Current AC-22B (Ie) 3800 A (380-415 V)
Rated Short-time Withstand Current (Icw) 80 kA for 1 s
Rated Short-Circuit Making Capacity (Icm) 176 kA (690 V)
Degree of Protection Front IP00
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Terminal Type Lug terminals
Power Loss per Pole 130 W
Net Weight 48.3 kg
Net Dimensions (W x H x D) 654 x 410 x 146 mm

Certifications & Standards

  • IEC/EN 60947-3

Selection Notes

ABB's own verified rating data for this catalog number lists a 3800 A conventional thermal current, not the 4000 A the OT4000E04P designation implies — confirm the current duty against the installation's calculated load before specifying it as a 4000 A device. Its 80 kA Icw and 176 kA Icm are the highest in the OT switch-disconnector range covered here, reflecting the fault levels expected near a large main incomer.

Technical Details

Short Description
OT4000E04P 4-pole switch-disconnector, 1000 V, verified 3800 A Ith, 80 kA Icw, 176 kA Icm, IEC 60947-3.
Rated Current (Ampere)
3800
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP00
Catalog No
OT4000E04P
Number of Poles
4P
Standards
IEC 60947-3
Delivery Date (Days)
30 days
Model Number
OT4000E04P
Tariff Code
853650
