ABB 1SCA117037R1001 OMZC03 OTM40-125F3C Parallel Connection Kit Transfer Switch Accessory

% $-61.64

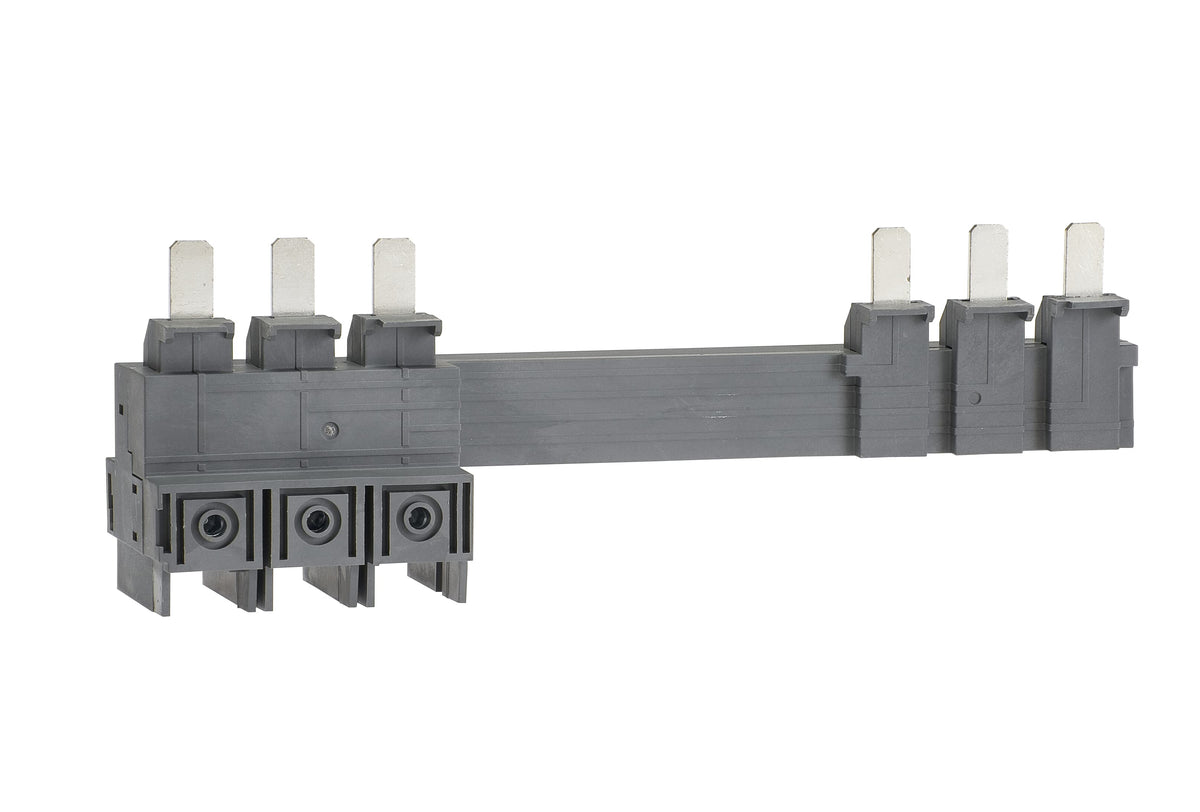

ABB OMZC03 1SCA117037R1001 parallel connection kit for OTM40-125F3C switches
ABB OMZC03 1SCA117037R1001 parallel connection kit for OTM40-125F3C switches

ABB 1SCA117037R1001 OMZC03 OTM40-125F3C Parallel Connection Kit Transfer Switch Accessory

Brand: ABB
Reference No: 1SCA117037R1001
Catalog No: OMZC03
Series: Change-over and Transfer Switches
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$61.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB OMZC03 (SKU 1SCA117037R1001) is a parallel connection kit used to link two or more OTM40...125F3C change-over switches for higher current applications, accepting 10-70 mm² copper cable. It measures 230 x 80 x 60 mm and weighs 0.37 kg. The kit is a bare mechanical accessory with no electronic or switching components of its own.

Technical Specifications

Catalog No OMZC03
SKU 1SCA117037R1001
Brand ABB
Series Change-over and Transfer Switches
EAN 6417019525822
Compatible Switch Range OTM40...125F3C
Cable Cross-Section 10-70 mm² Cu
Net Width 230 mm
Net Height 80 mm
Net Depth 60 mm
Net Weight 0.37 kg

Selection Notes

Use the OMZC03 only when paralleling OTM40...125F3C switches to carry a combined current beyond a single switch's frame rating; it is a mechanical cable-bridging kit, not a current-carrying device with a rating of its own. The 10-70 mm² Cu terminal range covers the cable sizes used across that F3C frame, so the same kit serves any switch within it regardless of the individual current setting chosen.

Technical Details

Short Description
OMZC03 parallel connection kit for OTM40...125F3C change-over switches, accepts 10-70 mm2 Cu cable, 0.37 kg.
Catalog No
OMZC03
Delivery Date (Days)
30 days
Model Number
OMZC03
Tariff Code
853890
