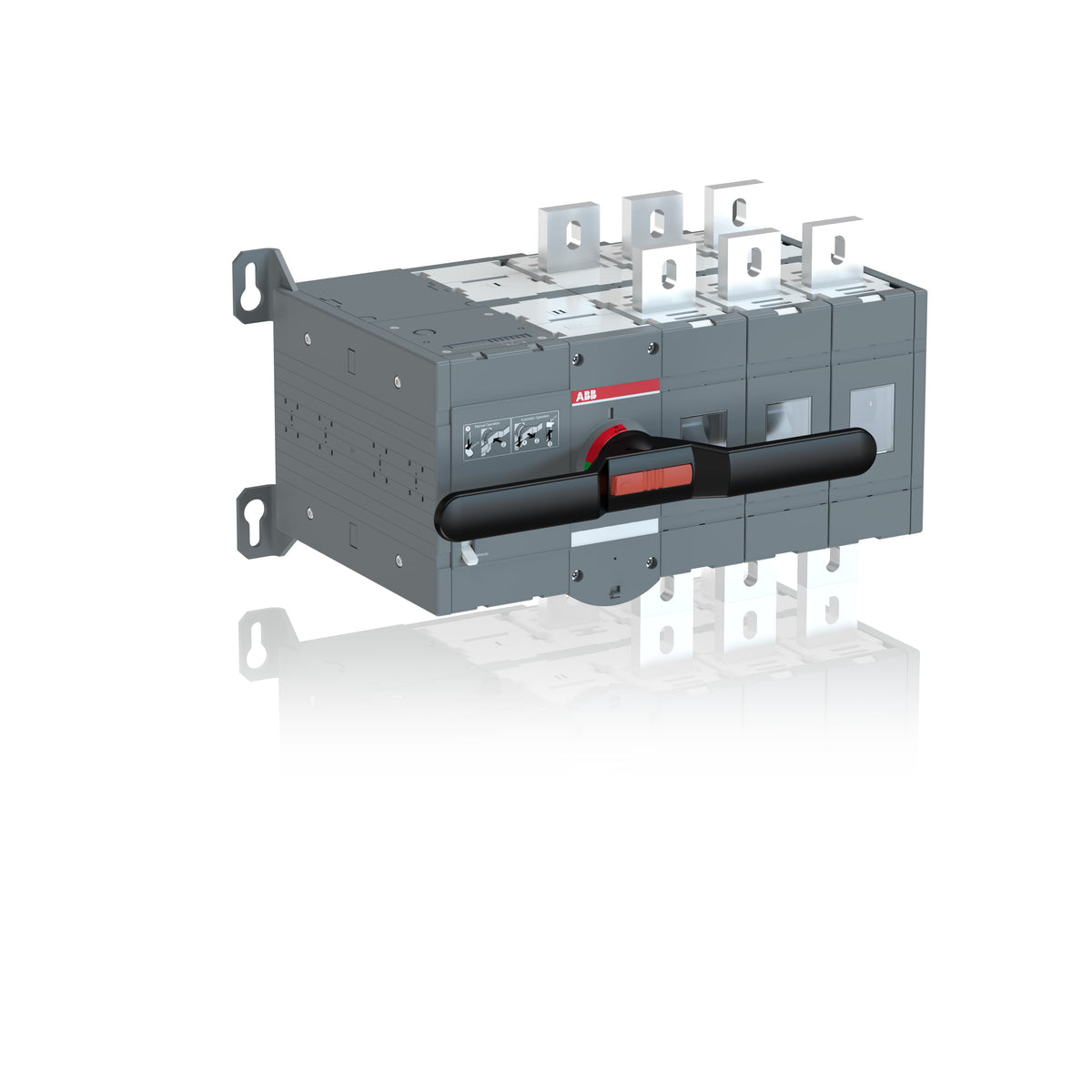

ABB 1SCA112676R1001 OTM1250E3CM230C 3P Open Transition Automatic Transfer Switch

% $-4,319.40
ABB 1SCA112676R1001 OTM1250E3CM230C Automatic Transfer Switch - 3P 1250A 1000V
ABB 1SCA112676R1001 OTM1250E3CM230C Automatic Transfer Switch - 3P 1250A 1000V

ABB 1SCA112676R1001 OTM1250E3CM230C 3P Open Transition Automatic Transfer Switch

Brand: ABB
Reference No: 1SCA112676R1001
Catalog No: OTM1250E3CM230C
Series: Motorized Change-over Switches
Tariff Code (HS): 853650
Rated Current: 1250
Rated Voltage: 1000 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,319.40

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA112676R1001 OTM1250E3CM230C is a 3-pole, 1250 A motorized change-over switch for automatic transfer between two power sources at up to 1000 V, driven by a 220-240 V AC motor operator. It carries a 50 kA short-time withstand current (Icw, 1 s) and an open-transition switching sequence, with a manual handle for local override.

Technical Specifications

SKU 1SCA112676R1001
Brand ABB
Series Motorized Change-over Switches
Catalog Designation OTM1250E3CM230C
EAN 6417019453910
Number of Poles 3P
Transition Type Open
Rated Operational Voltage (Main Circuit) 1000 V
Rated Operational Current AC-21A/AC-22A/AC-23A (Ie) 1250 A (at 380-415 V, 500 V, 690 V)
Rated Operational Power AC-23A (Pe) 710 kW at 380-415 V, 900 kW at 500 V, 1200 kW at 690 V
Rated Operational Current AC-31B / AC-33B (Ie) 1250 A / 1000 A
Rated Short-time Withstand Current (Icw) 50 kA for 1 s
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Conventional Free-air Thermal Current (Ith) 1250 A
Motor Operational Voltage 220-240 V AC
Handle Type Direct Mount
Degree of Protection IP20 (front)
Mounting Type Base mounting
Terminal Type Screw terminals
Net Dimensions (W x H x D) 507 x 306 x 297 mm
Net Weight 55 kg

Selection Notes

At 1250 A this is the higher-current 3-pole changeover switch in the range, built in the same 507 x 306 x 297 mm, 55 kg enclosure as the 1000 A unit. AC-33B motor-duty current is capped at 1000 A even though AC-21A, AC-22A, AC-23A and AC-31B all reach 1250 A, so a direct-on-line motor transfer application should be sized against that lower figure. Choose this 3-pole version over a 4-pole 1250 A switch when the installation does not need the neutral switched.

Technical Details

Short Description
3-pole, 1250 A motorized change-over switch, 1000 V, 220-240V AC motor, 50 kA Icw, open transition.
Rated Current (Ampere)
1250
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OTM1250E3CM230C
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
OTM1250E3CM230C
Tariff Code
853650
