ABB 1SCA109884R1001 OTPE40FD Earth Terminal Switch Disconnector Accessory

% $-6.26
ABB OTPE40FD earth terminal - OT40 switch disconnector accessory
ABB OTPE40FD earth terminal - OT40 switch disconnector accessory

ABB 1SCA109884R1001 OTPE40FD Earth Terminal Switch Disconnector Accessory

Brand: ABB
Reference No: 1SCA109884R1001
Catalog No: OTPE40FD
Series: Switch Disconnectors
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$6.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

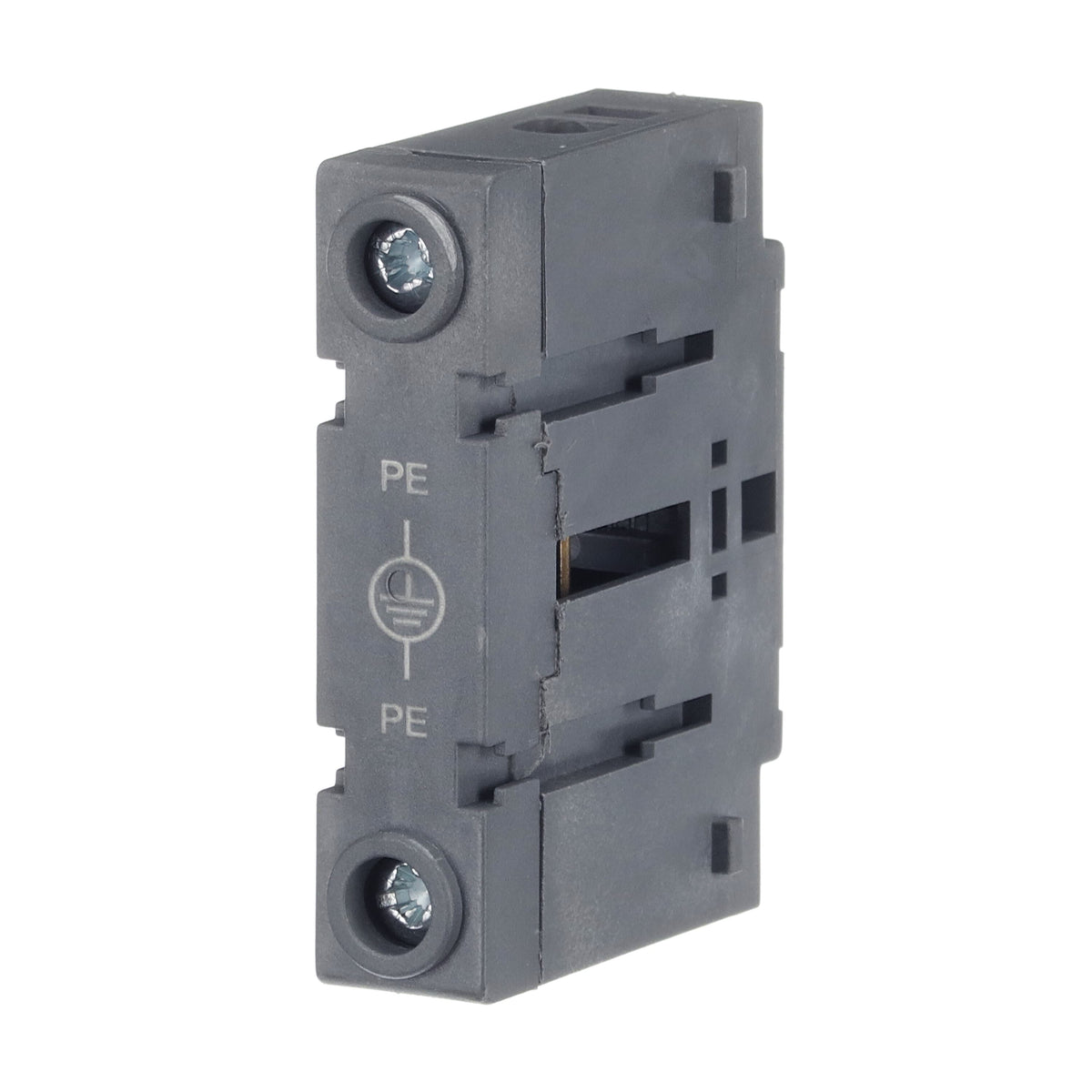

The ABB 1SCA109884R1001 (OTPE40FD) is an earth terminal accessory sized for the OT40 switch-disconnector frame, giving the switch body a dedicated protective-earth connection point. ABB codes it under the FD special-function designation and ships it as a 13 mm wide, 50 mm high, 40 mm deep terminal block weighing 0.035 kg. It mounts directly onto the switch housing alongside the line and load terminals.

Technical Specifications

Catalog No OTPE40FD
SKU 1SCA109884R1001
Brand ABB
Series Switch Disconnectors
EAN 6417019431383
Net Width 13 mm
Net Height 50 mm
Net Depth 40 mm
Net Weight 0.035 kg
Special Function Code FD

Technical Details

Short Description
ABB OTPE40FD earth terminal accessory for OT40 switch-disconnectors, 13x50x40 mm, 0.035 kg.
Catalog No
OTPE40FD
Delivery Date (Days)
30 days
Model Number
OTPE40FD
Tariff Code
853890
