- Part number
- 1SCA109416R1001
- Model no
- OXP6X500
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- RoHS

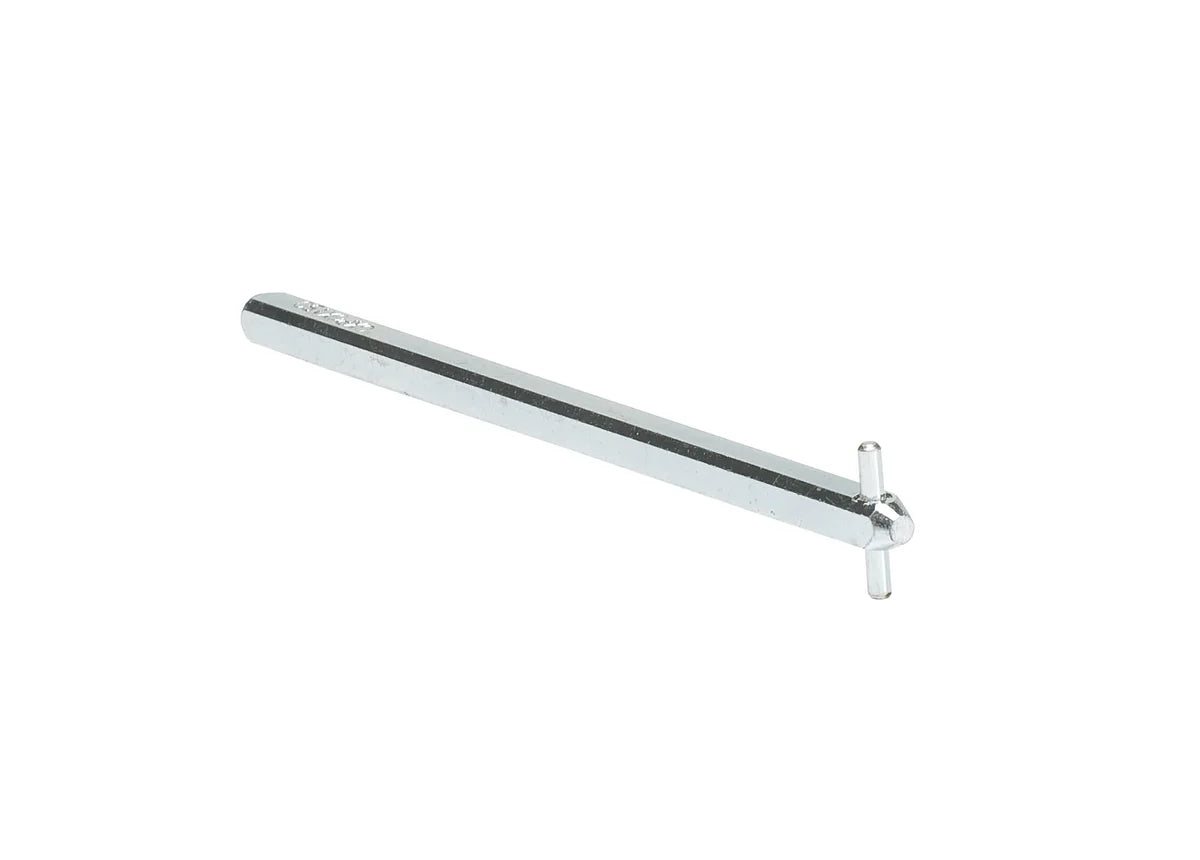

ABB 1SCA109416R1001 OXP6X500 6x6x500mm 0.136kg Switch Operating Shaft
Description
About the OXP6X500
About the OXP6X500
The ABB OXP6X500 switch operating shaft (SKU: 1SCA109416R1001) is a precision-engineered 6×6×500mm shaft designed for use with ABB switch and disconnector assemblies in industrial control panels and automation systems. Weighing just 0.136 kg, the OXP6X500 provides a reliable mechanical link between external actuators and internal switching mechanisms, ensuring accurate and consistent operation in demanding industrial environments.
Certifications & Standards
- RoHS: Compliant with the Restriction of Hazardous Substances Directive — restricts the use of specific hazardous materials in electrical and electronic equipment.
- REACH: Compliant with the EU REACH regulation concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals.
- WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive — supports responsible end-of-life recycling and disposal.
Applications & Use Cases
- Mechanical actuation linkage for ABB switch disconnectors and rotary switches in industrial control panels
- Extension shafts for door-mounted or remote-mounted operator handles
- Industrial automation and machine control cabinet assemblies
- Motor control centers (MCCs) requiring extended shaft reach
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 6 mm |
|---|---|
| Product Net Height | 6 mm |
| Product Net Depth / Length | 500 mm |
| Product Net Weight | 0.136 kg |
Technical 2
| Shaft Diameter | 6 mm |
|---|---|
| Shaft Length | 500 mm |
Show all 33 specifications ↓ Show less ↑26 more values in Identification, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA109416R1001 |
|---|---|
| Type designation | OXP6X500 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019426068 |
| ETIM class | EC000916 |
| eCl@ss | 27370413 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Country of Origin | Finland |
External Classifications and Standards 4
| ETIM 10 | EC000916 - Switch operating shaft |
|---|---|
| UNSPSC | 39122221 |
| eClass | V11.1 : 27370413 |
| WEEE Category | Product Not in WEEE Scope |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 6 mm |
| Package Level 1 Depth / Length | 500 mm |
| Package Level 1 Height | 6 mm |
| Package Level 1 Gross Weight | 0.14 kg |
| Package Level 1 EAN | 6417019426068 |
| Shipping weight | 0.14 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA109416R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
Quick answers
Questions about the OXP6X500
What is the HS code of OXP6X500 for customs?
The tariff (HS) code on file for OXP6X500 is 85389099.
What is the EAN of OXP6X500?
The EAN (GTIN) of OXP6X500 is 6417019426068.
Where does OXP6X500 ship from, and how fast?
OXP6X500 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
