ABB 1SCA108038R1001 OT2000E04P 4P 55kA 176kA Switch-Disconnector Switch Disconnector

% $-1,932.58

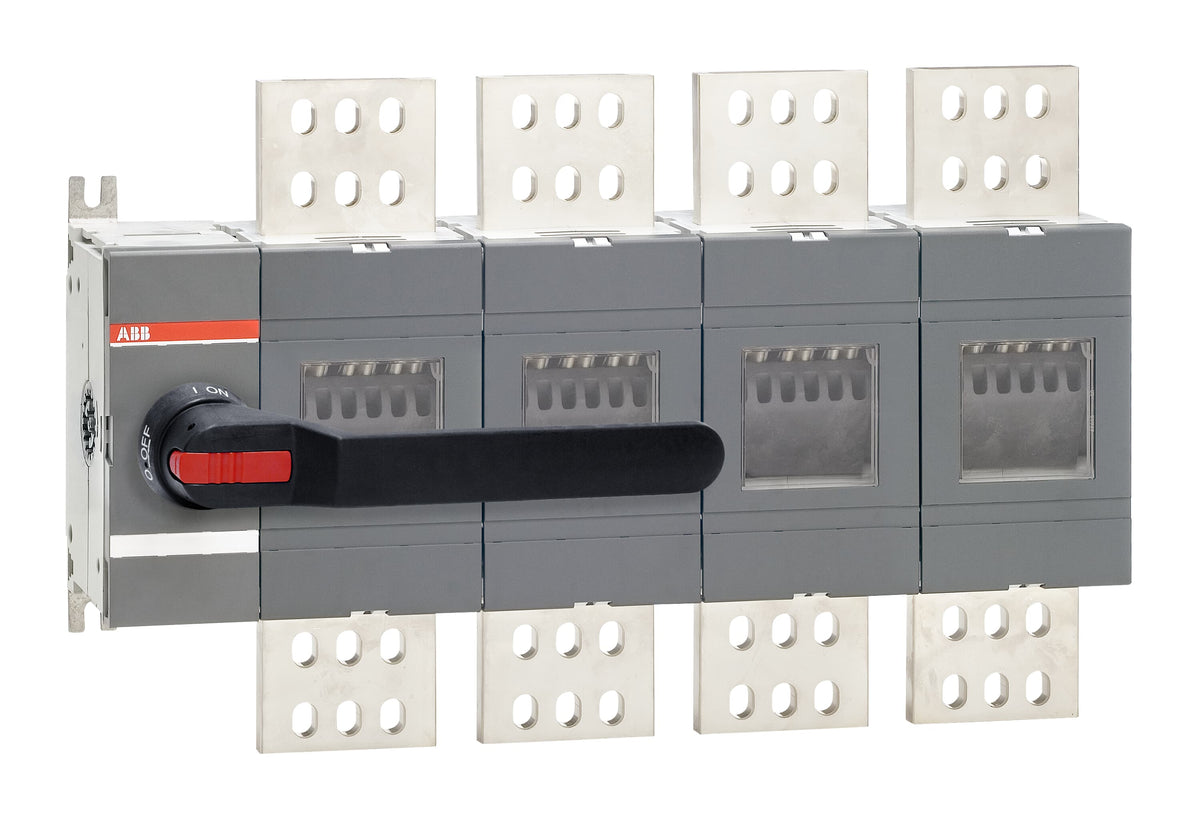

ABB OT2000E04P 1SCA108038R1001 switch-disconnector – 2000A 4P 55kA Icw
ABB OT2000E04P 1SCA108038R1001 switch-disconnector – 2000A 4P 55kA Icw

ABB 1SCA108038R1001 OT2000E04P 4P 55kA 176kA Switch-Disconnector Switch Disconnector

Brand: ABB
Reference No: 1SCA108038R1001
Catalog No: OT2000E04P
Series: Switch Disconnectors
Tariff Code (HS): 853650
Rated Current: 2000
Rated Voltage: 1000 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,932.58

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB OT2000E04P (SKU 1SCA108038R1001) is a 2000 A, 4-pole switch-disconnector for a 1000 V main circuit, certified to IEC 60947-3. It withstands a 55 kA fault current for 1 second (Icw), makes against 176 kA (Icm), and uses 100 mm wide lug terminals for front-operated base mounting with a 1000 V insulation voltage (Ui).

Technical Specifications

Catalog No OT2000E04P
SKU 1SCA108038R1001
Brand ABB
Series Switch Disconnectors
EAN 6417019413594
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Conventional Free-air Thermal Current (Ith) 2000 A
Rated Operational Current AC-21B (Ie) 2000 A (380-690 V)
Rated Conditional Short-Circuit Current (Inc) 80 kA (1250 A fuse, 415 V) / 100 kA (1250 A fuse, 500 V)
Rated Short-time Withstand Current (Icw) 55 kA for 1 s
Rated Short-Circuit Making Capacity (Icm) 176 kA (690 V)
Degree of Protection Front IP00
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Terminal Type Lug terminals
Terminal Width 100 mm
Net Weight 33.3 kg
Net Dimensions (W x H x D) 598.5 x 376.5 x 145.5 mm

Certifications & Standards

  • IEC/EN 60947-3

Selection Notes

The OT2000E04P's 176 kA Icm is more than three times the 55 kA Icw figure, reflecting that making capacity and short-time withstand are measured differently — Icm is the peak the switch can close onto, Icw the RMS current it can carry for 1 second. Specify this switch-disconnector, not the change-over OT2000E0_CP models, where a single 2000 A feed only needs isolating.

Technical Details

Short Description
OT2000E04P 2000 A, 4-pole switch-disconnector, 1000 V, 55 kA Icw, 176 kA Icm, IEC 60947-3.
Rated Current (Ampere)
2000
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP00
Catalog No
OT2000E04P
Number of Poles
4P
Standards
IEC 60947-3
Delivery Date (Days)
30 days
Model Number
OT2000E04P
Tariff Code
853650
