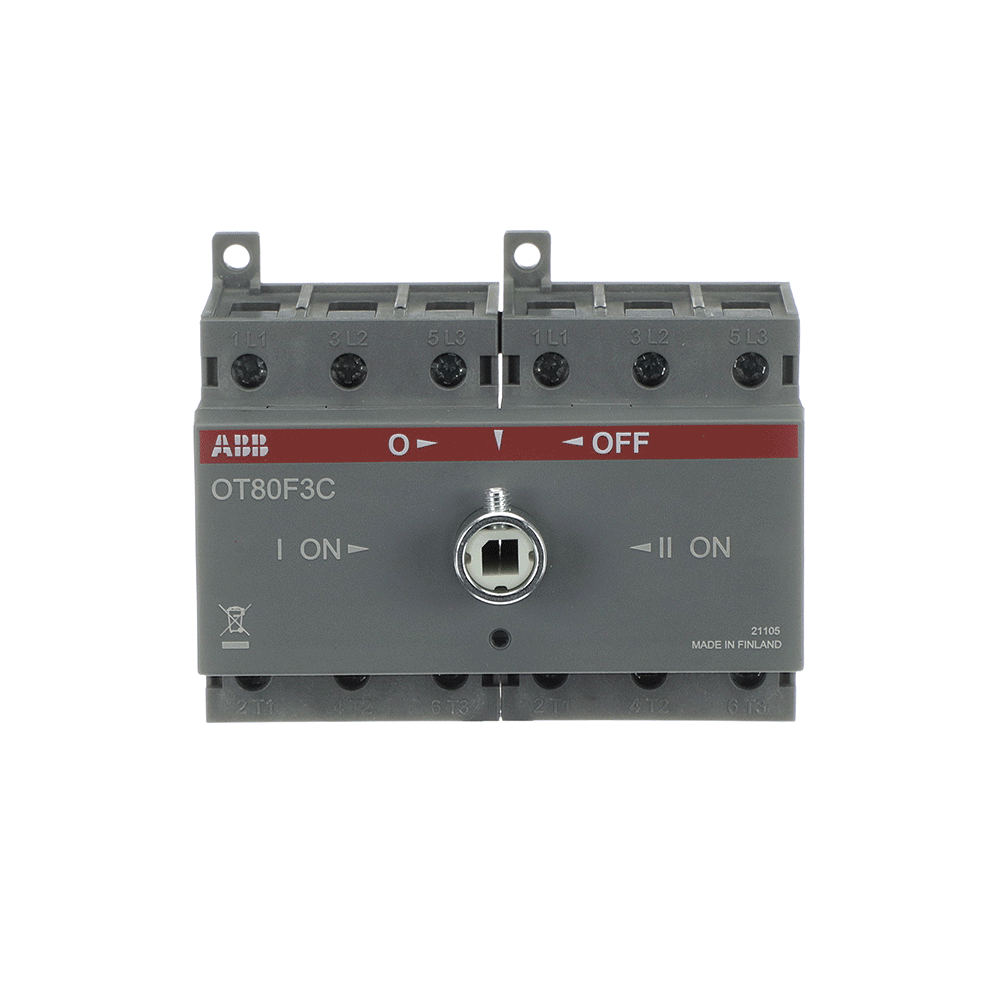

ABB 1SCA105402R1001 OT80F3C 3P 750V 1.5kA Manual Change-Over Switch Changeover Switch

% $-125.87
ABB OT80F3C 1SCA105402R1001 manual change-over switch base – 80A 3P UL 98
ABB OT80F3C 1SCA105402R1001 manual change-over switch base – 80A 3P UL 98

ABB 1SCA105402R1001 OT80F3C 3P 750V 1.5kA Manual Change-Over Switch Changeover Switch

Brand: ABB
Reference No: 1SCA105402R1001
Catalog No: OT80F3C
Series: Manual Change-over Switches
Tariff Code (HS): 853650
Rated Current: 80
Rated Voltage: 750 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$125.87

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB OT80F3C (SKU 1SCA105402R1001) is an 80 A, 3-pole manual change-over switch base rated for a 750 V circuit, listed to UL 98 and IEC 60947-3. The handle and shaft are ordered separately, the short-time withstand current (Icw) is 1.5 kA, and the switch mechanism sits on top of the unit.

Technical Specifications

Catalog No OT80F3C
SKU 1SCA105402R1001
Brand ABB
Series Manual Change-over Switches
EAN 6417019393377
Number of Poles 3P
Rated Operational Voltage (Main Circuit) 750 V
Rated Insulation Voltage (Ui) 750 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Conventional Free-air Thermal Current (Ith) 80 A
Conventional Thermal Current, Fully Enclosed (Ithe) 80 A
Rated Operational Current AC-23A (Ie) 20-75 A (380-690 V)
Rated Operational Power AC-23A (Pe) 18.5-37 kW (380-690 V)
Rated Short-time Withstand Current (Icw) 1.5 kA for 1 s
Horsepower Rating (UL/CSA) 20 Hp (200-240 V) / 40 Hp (480-600 V)
Degree of Protection Front IP20
Pollution Degree 3
Cable Cross-Section 1.5-35 mm²
Mounting Type Base mounting
Switches Operating Mechanism Mechanism on Top of the Switch
Terminal Type Screw Terminals
Transition Type Open
Power Loss per Pole 4.5 W
Net Weight 0.64 kg
Net Dimensions (W x H x D) 105 x 92 x 85 mm

Certifications & Standards

  • UL 98
  • IEC/EN 60947-3

Selection Notes

The OT80F3C ships as a bare switch base — order the pistol handle and shaft separately to complete an operable change-over switch, unlike the OT160 and larger CP models that include the handle. Its 1.5 kA Icw and 750 V rating are both lower than the larger OT…CP frames, matching the lighter fault duty typical of an 80 A branch circuit; the UL 98 listing with motor horsepower ratings up to 40 Hp at 480-600 V suits North American panel specifications.

Technical Details

Short Description
OT80F3C 80 A, 3-pole change-over switch base, 750 V, 1.5 kA Icw, UL 98 / IEC 60947-3, handle ordered separately.
Rated Current (Ampere)
80
Rated Voltage (VAC)
750 V
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OT80F3C
Number of Poles
3P
Standards
UL 98 / IEC60947-3
Delivery Date (Days)
30 days
Model Number
OT80F3C
Tariff Code
853650
