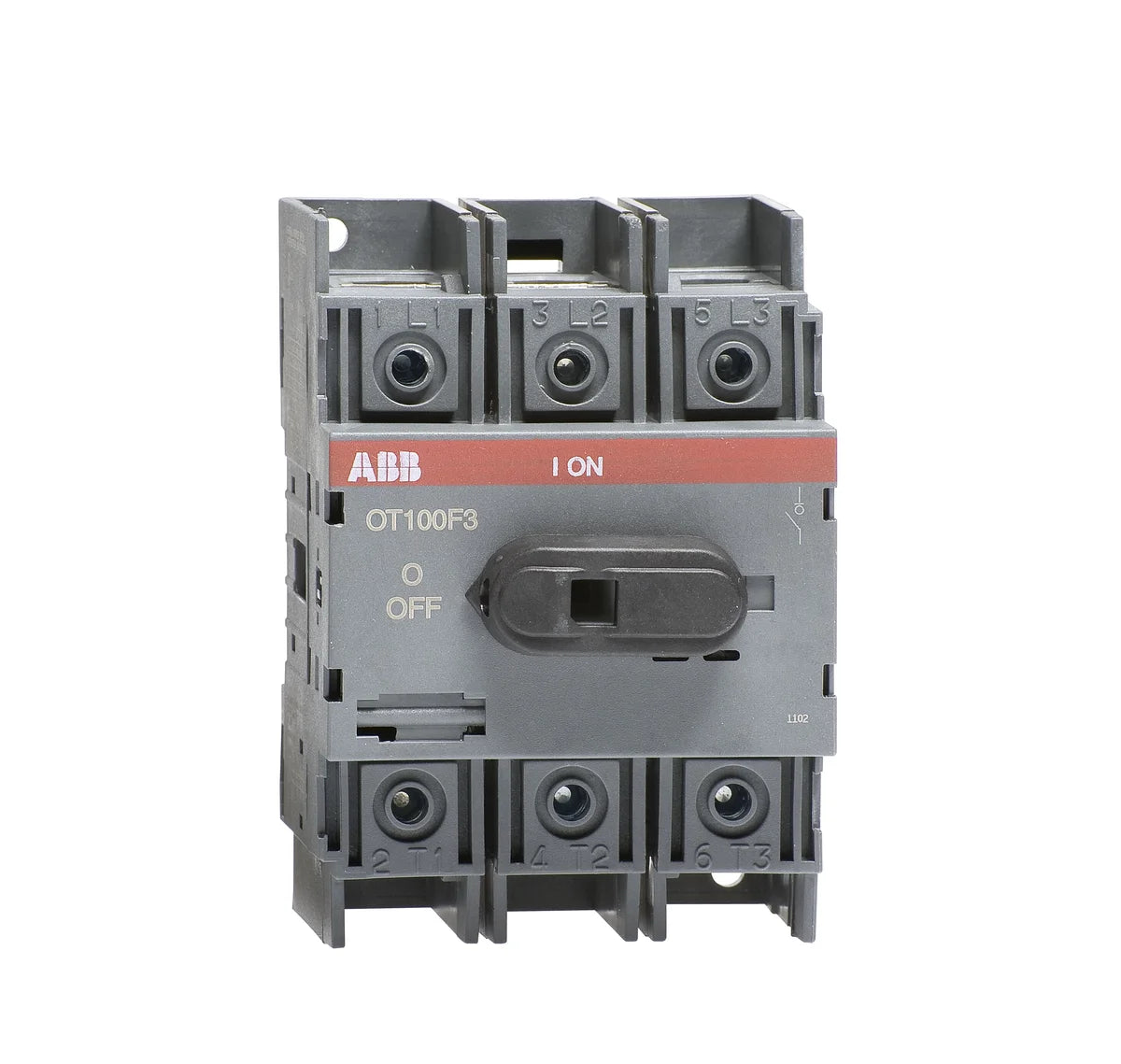

OTABB 1SCA105004R1001 OT100F3 3-Pole 100A Base/DIN-Rail Mount Switch Disconnector
Description
About the OT100F3
About the OT100F3
The ABB OT100F3 (SKU: 1SCA105004R1001) is a 3-pole low-voltage switch disconnector from ABB's OT Series, designed for safe isolation and switching of electrical circuits in industrial control panels and distribution boards. Combining base-mount and DIN-rail mounting flexibility with compact dimensions of 70 × 100 × 74 mm and a lightweight 0.36 kg build, the OT100F3 delivers reliable disconnection in demanding industrial environments.
Certifications & Standards
- RoHS: Compliant with Restriction of Hazardous Substances directive
- REACH: Compliant with EU REACH regulation on chemical substances
- EU Directive 2011/65/EU & Amendment 2015/863: Meets European RoHS legislative requirements including latest amendments
- IEC 60947-3 / UL 98 / CSA C22.2 NO.4: Certified to international standards for switches for equipment
- IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
- IEC 60947-3: Low-voltage switchgear and controlgear — switches, disconnectors, switch-disconnectors
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- EN 60664-1: European standard for insulation coordination in low-voltage systems
- CSA C22.2 NO.4: Canadian Standards Association — switches for use in electrical equipment
- CSA: Canadian Standards Association certified
- ATEX: Suitable for use in potentially explosive atmospheres
- CE: Complies with European CE marking requirements
- cULus: Certified by Underwriters Laboratories for US and Canadian markets
- VDE: Certified by Verband der Elektrotechnik (German electrical engineering association)
- WEEE: Compliant with Waste Electrical and Electronic Equipment directive
Applications & Use Cases
- Safe isolation of electrical circuits in industrial machinery and control panels
- Main or branch circuit disconnection in distribution boards and motor control centres
- Panel-building applications requiring both base-mount and DIN-rail mounting flexibility
- Use in potentially explosive atmospheres (ATEX-rated environments)
- Industrial automation systems requiring certified, multi-standard compliant switching
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 70 mm |
|---|---|
| Product Net Height | 100 mm |
| Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.36 kg |
Show all 69 specifications ↓ Show less ↑62 more values in Identification, Technical, Technical UL/CSA, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA105004R1001 |
|---|---|
| Type designation | OT100F3 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019391359 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 31
| Cable Cross-Section | Cu 10 ... 70 mm² |
|---|---|
| Color | Grey |
| Connecting Capacity Main Circuit | Flexible 1x Cu 10…70 mm², Stranded 1x Cu 10…70 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 115 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 115 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Knob |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4.0 W |
| Rated Conditional Short-Circuit Current (Inc) | (125 A fuse, 415 V) 50 kA, (125 A fuse, 690 V) 10 kA, (63 A fuse, 690 V) 50 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 100 A, (500 V) 100 A, (690 V) 100 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 100 A, (500 V) 100 A, (690 V) 100 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A, (500 V) 60 A, (690 V) 40 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 22 kW, (400 ... 415 V) 37 kW, (500 V) 37 kW, (690 V) 37 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 3.6 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kA |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Wire Stripping Length | Main Circuit 18-21 mm |
Technical UL/CSA 4
| Maximum Operating Voltage UL/CSA | 600 V |
|---|---|
| Ampere Rating | 100 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 5 Hp, (240 V AC) Single Phase 15 Hp, (440 ... 480 V AC) Single Phase 25 Hp, (550 ... 600 V AC) Single Phase 20 Hp, (220 ... 240 V AC) Three Phase 30 Hp, (440 ... 480 V AC) Three Phase 50 Hp, (550 ... 600 V AC) Three Phase 50 Hp |
| Tightening Torque UL/CSA | 55 in·lb |
External Classifications and Standards 5
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3170942 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 81 mm |
| Package Level 1 Depth / Length | 112 mm |
| Package Level 1 Height | 86 mm |
| Package Level 1 Gross Weight | 0.39 kg |
| Package Level 1 EAN | 6417019391359 |
| Shipping weight | 0.39 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA105004R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- ATEX
- VDE
- IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Quick answers
Questions about the OT100F3
What is the HS code of OT100F3 for customs?
The tariff (HS) code on file for OT100F3 is 85365080.
What is the EAN of OT100F3?
The EAN (GTIN) of OT100F3 is 6417019391359.
Where does OT100F3 ship from, and how fast?
OT100F3 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
