- Part number
- 1SCA104972R1001
- Model no
- OT2500E03P
Critical stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- RoHS
- ATEX
- VDE

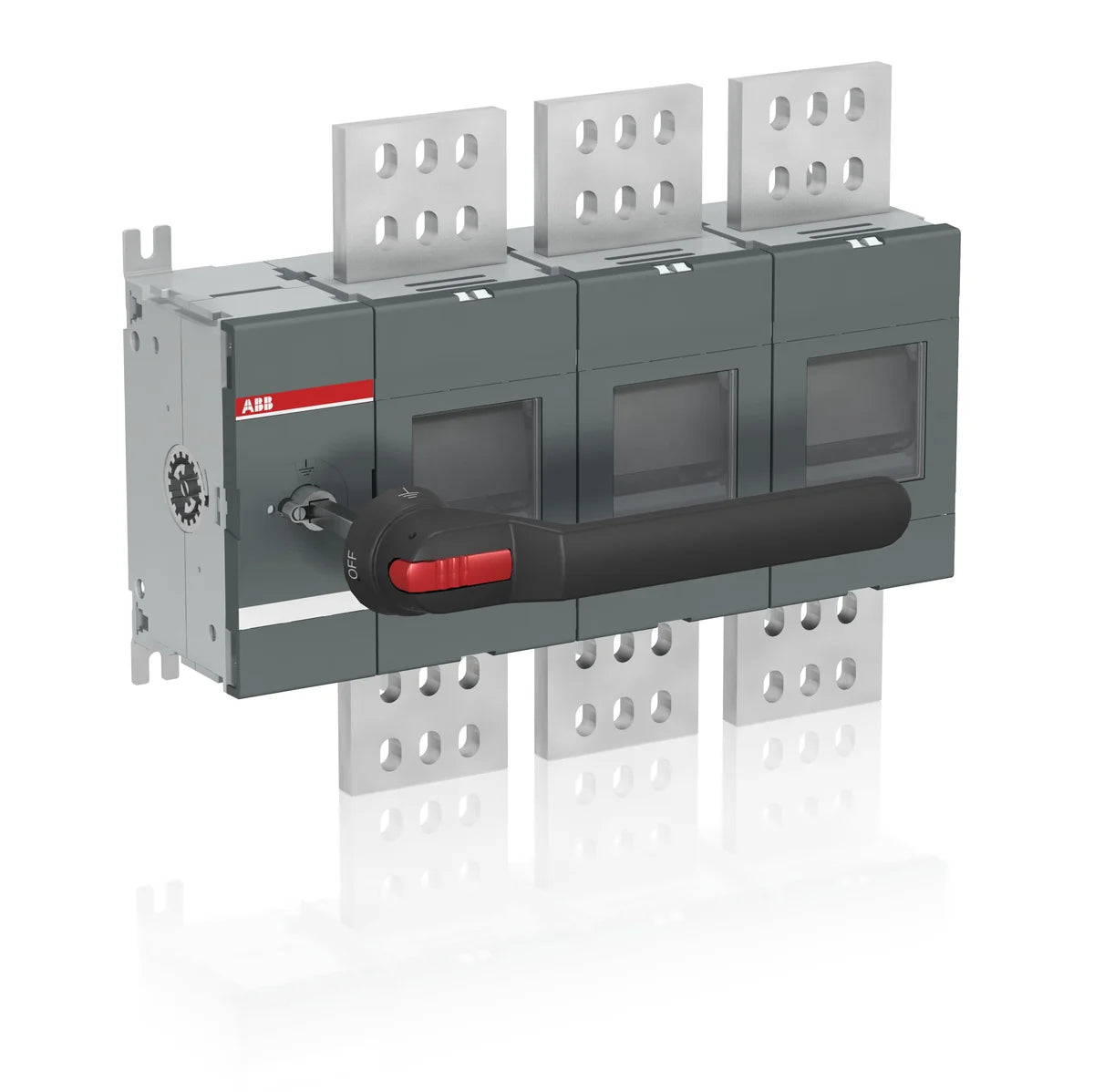

OTABB 1SCA104972R1001 OT2500E03P 3-Pole 2500A Base Mounted Switch-Disconnector
Description
About the OT2500E03P
About the OT2500E03P
The ABB OT2500E03P switch-disconnector (SKU: 1SCA104972R1001) is a heavy-duty 3-pole, base-mounted isolation switch designed for safe disconnection of electrical circuits in industrial power distribution systems. Part of ABB's trusted OT series, the OT2500E03P provides reliable load isolation and circuit protection in demanding industrial environments, compliant with IEC 60947-3 and carrying ATEX, CE, and VDE certifications for broad global application.
Certifications & Standards
- RoHS: Compliant with the Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH chemical safety regulation
- IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
- IEC 60947-3: Low-voltage switchgear and controlgear — switches, disconnectors, switch-disconnectors and fuse-combination units
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- EN 60664-1: European harmonised standard for insulation coordination in low-voltage systems
- ATEX: Certified for use in explosive atmospheres per EU ATEX directive
- CE: Conformité Européenne marking — meets EU safety, health, and environmental requirements
- VDE: Certified by Verband der Elektrotechnik — German electrical engineering quality standard
- WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive for end-of-life recycling
Applications & Use Cases
- Main circuit isolation and de-energisation in industrial power distribution panels
- Safe maintenance switching for heavy industrial machinery and large motor loads
- Load disconnection in manufacturing plants, process industries, and utility installations
- High-current switchgear applications requiring reliable base-mounted installation
- Hazardous area installations where ATEX-rated equipment is mandatory
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP00 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 472.5 mm |
|---|---|
| Product Net Height | 376.5 mm |
| Product Net Depth / Length | 145.5 mm |
| Product Net Weight | 25.8 kg |
Show all 56 specifications ↓ Show less ↑49 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA104972R1001 |
|---|---|
| Type designation | OT2500E03P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019391113 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 23
| Color | Grey |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 2500 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mechanical Durability | 6000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 85 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2500 A, (500 V) 2500 A, (690 V) 2500 A |
| Rated Operational Current AC-22B (Ie) | (380 ... 415 V) 2500 A, (500 V) 2500 A, (690 V) 2500 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 176 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 100 mm |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 580 mm |
| Package Level 1 Depth / Length | 780 mm |
| Package Level 1 Height | 500 mm |
| Package Level 1 Gross Weight | 27.7 kg |
| Package Level 1 EAN | 6417019391113 |
| Shipping weight | 27.7 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA104972R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- ATEX
- VDE
- IEC 60947-3
Quick answers
Questions about the OT2500E03P
What is the HS code of OT2500E03P for customs?
The tariff (HS) code on file for OT2500E03P is 85365080.
What is the EAN of OT2500E03P?
The EAN (GTIN) of OT2500E03P is 6417019391113.
Where does OT2500E03P ship from, and how fast?
OT2500E03P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
