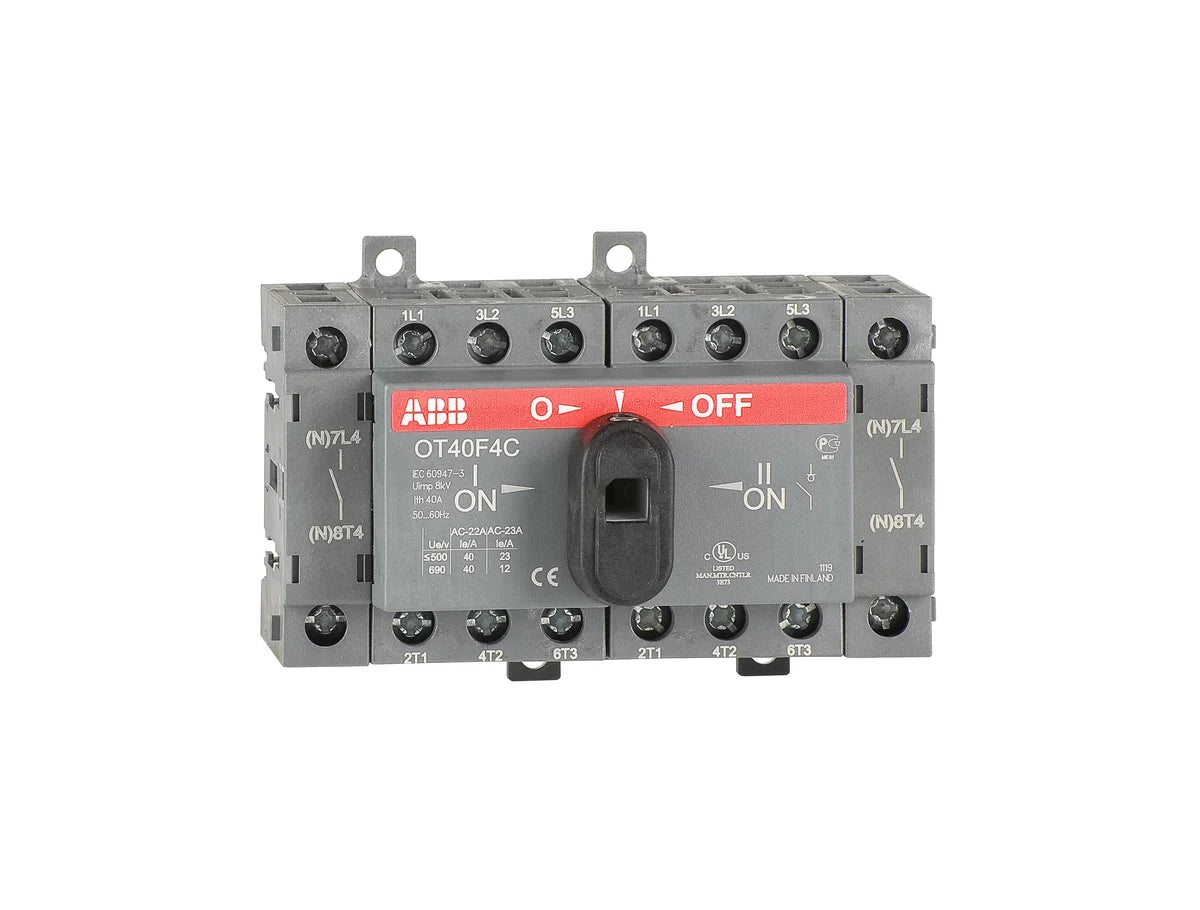

OTABB 1SCA104934R1001 OT40F4C 4-Pole 40A Base Mount Change-Over Switch Disconnector
Description
About the OT40F4C
About the OT40F4C
The ABB OT40F4C (SKU: 1SCA104934R1001) is a 4-pole 40A change-over switch disconnector from the ABB OT Series, designed for safe isolation and load switching in low-voltage industrial control panels and distribution boards. Rated at 40A across four poles and compliant with IEC60947-3, UL 98, and a comprehensive range of international standards, this switch disconnector delivers reliable performance in demanding industrial automation and energy distribution applications. Its compact base-mounting design (96 × 68 × 68 mm) and lightweight 0.27 kg construction simplify installation and panel layout.
Certifications & Standards
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH chemical regulation
- DNV: Approved by Det Norske Veritas for marine and offshore applications
- UL 98 / IEC 60947-3: Certified to UL 98 and IEC 60947-3 for enclosed and open switches
- IEC 60947-3: Compliant with IEC standard for switches, disconnectors, switch-disconnectors and fuse-combination units
- IEC 60947-10: Compliant with IEC standard for control circuit devices and switching elements
- UL 200: Certified to UL 200 standard for fuses for supplementary overcurrent protection
- UL 208: Certified to UL 208 standard for enclosed switches
- UL 240: Certified to UL 240 standard for enclosed switches
- UL 480: Certified to UL 480 standard for fuseholders
- UL 600: Certified to UL 600 standard for safety switches
- CSA: Certified to Canadian Standards Association requirements
- CE: Conformité Européenne — compliant with applicable EU directives
- WEEE: Registered under EU Waste Electrical and Electronic Equipment Directive
Applications & Use Cases
- Safe isolation and load switching in low-voltage industrial control panels
- Change-over switching between two power sources (e.g., mains and generator)
- Distribution boards and motor control centres requiring 4-pole isolation
- Marine and offshore installations requiring DNV approval
- Industrial automation systems demanding IEC 60947-3 and UL-certified switching devices
- Building services and infrastructure electrical panels
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 96 mm, 3.78 in |
|---|---|
| Product Net Height | 68 mm, 2.68 in |
| Product Net Depth / Length | 68 mm, 2.68 in |
| Product Net Weight | 0.27 kg |
Show all 59 specifications ↓ Show less ↑52 more values in Identification, Technical, Technical UL/CSA, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA104934R1001 |
|---|---|
| Type designation | OT40F4C |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019390741 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 25
| Cable Cross-Section | 0.75 ... 10 mm² |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 40 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 23 A, (500 V) 23 A, (690 V) 12 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 11 kW, (500 V) 11 kW, (690 V) 11 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kiloampere rms |
| Standards | UL 98 / IEC60947-3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 0.8 N·m |
| Transition Type | Open |
Technical UL/CSA 1
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 10 Hp, (acc. to UL 208 V) 10 Hp, (acc. to UL 240 V) 10 Hp, (acc. to UL 480 V) 20 Hp, (acc. to UL 600 V) 25 Hp |
|---|
External Classifications and Standards 4
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 box |
|---|---|
| Package Level 1 Width | 80 mm, 3.15 in |
| Package Level 1 Depth / Length | 108 mm, 4.25 in |
| Package Level 1 Height | 79 mm, 3.11 in |
| Package Level 1 Gross Weight | 0.31 kg, 0.70 lb |
| Package Level 1 EAN | 6417019390741 |
| Shipping weight | 0.31 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA104934R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- DNV
- RoHS
- UL 98 / IEC60947-3
Quick answers
Questions about the OT40F4C
What is the rated current of OT40F4C?
The rated current of OT40F4C is 40 A.
What is the HS code of OT40F4C for customs?
The tariff (HS) code on file for OT40F4C is 85365080.
What is the EAN of OT40F4C?
The EAN (GTIN) of OT40F4C is 6417019390741.
Where does OT40F4C ship from, and how fast?
OT40F4C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
