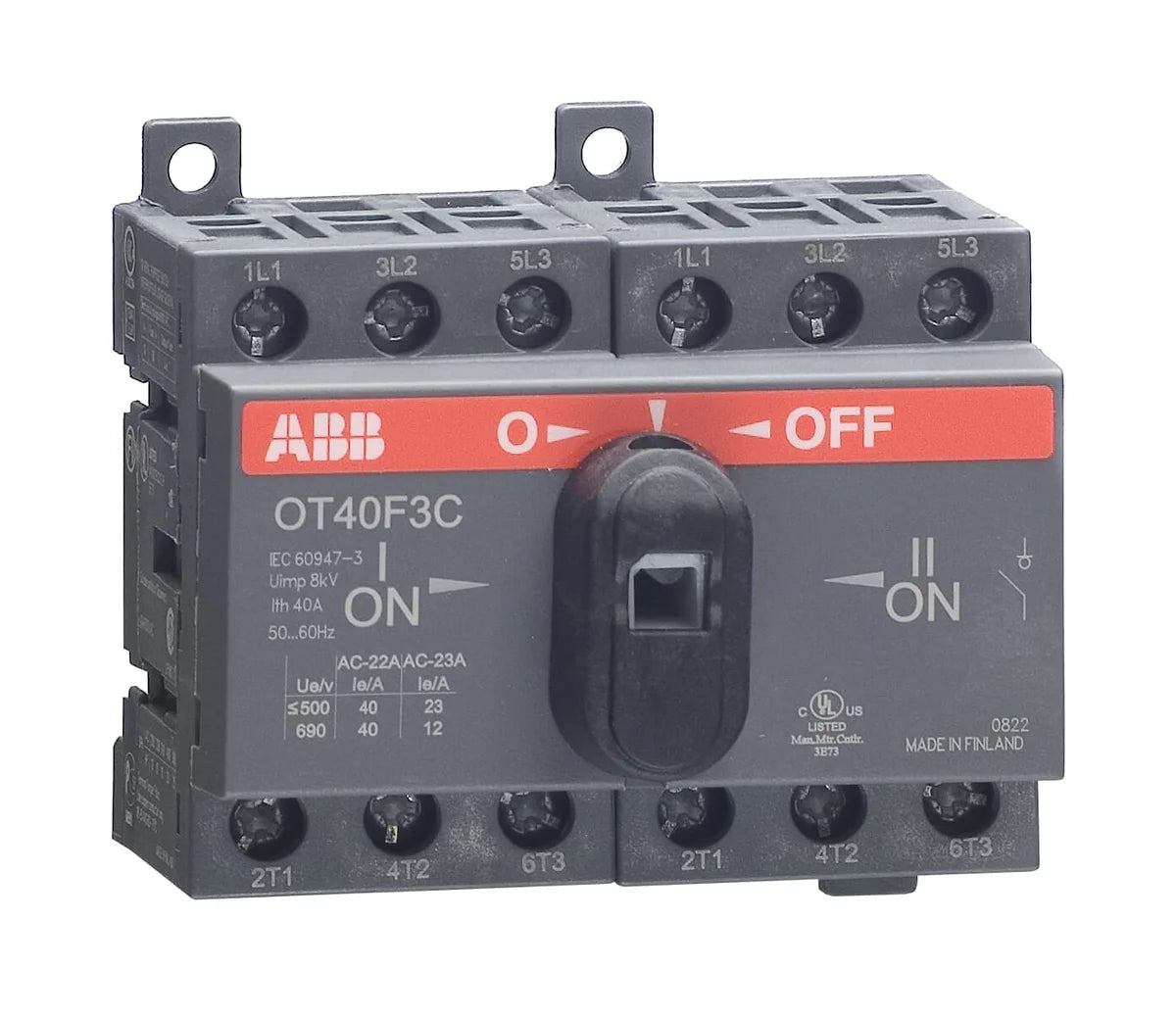

OTABB 1SCA104913R1001 OT40F3C 3-Pole 40A Base Mount Change-Over Switch Disconnector
Description
About the OT40F3C
About the OT40F3C
The ABB OT40F3C (SKU: 1SCA104913R1001) is a 3-pole, 40A change-over switch disconnector from ABB's OT Series, designed for reliable source switching and safe isolation in low-voltage power distribution and control panel applications. The OT40F3C features base mounting for secure panel installation and weighs just 0.25 kg, making it a compact yet robust solution for industrial and commercial electrical systems.
Certifications & Standards
- CE: Complies with European Union directives for electrical equipment safety and electromagnetic compatibility
- RoHS: Restriction of Hazardous Substances — free from restricted materials per EU Directive 2011/65/EU
- REACH: Complies with EU REACH regulation (EC No 1907/2006) on chemical substance safety
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal
- DNV: Det Norske Veritas type approval — suitable for marine and offshore applications
- UL 98 / IEC 60947-3: Certified to UL 98 and IEC 60947-3 for enclosed and open switches and switch disconnectors
- IEC 60947-3: Meets international standard for switches, disconnectors, switch-disconnectors and fuse-combination units
- IEC 60947-10: Complies with IEC standard for control circuit devices and switching elements
Applications & Use Cases
- Manual source changeover between mains supply and generator or standby power in low-voltage distribution boards
- Safe isolation and disconnection of electrical circuits in industrial control panels
- Marine and offshore power distribution systems (DNV approved)
- Commercial building electrical installations requiring IEC 60947-3 compliant switching
- Motor control centers and machine control panels requiring 3-pole isolation up to 40A
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP20 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 70 mm, 2.76 in |
|---|---|
| Product Net Height | 68 mm, 2.68 in |
| Product Net Depth / Length | 68 mm, 2.68 in |
| Product Net Weight | 0.25 kg |
Show all 58 specifications ↓ Show less ↑51 more values in Identification, Technical, Technical UL/CSA, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA104913R1001 |
|---|---|
| Type designation | OT40F3C |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019390536 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 23
| Cable Cross-Section | 0.75 ... 10 mm² |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 40 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 40 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 40 A, (500 V) 40 A, (690 V) 40 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 23 A, (500 V) 23 A, (690 V) 12 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 11 kW, (500 V) 11 kW, (690 V) 11 kW |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kiloampere rms |
| Standards | UL 98 / IEC60947-3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 0.8 N·m |
| Transition Type | Open |
Technical UL/CSA 1
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 10 Hp, (acc. to UL 208 V) 10 Hp, (acc. to UL 240 V) 10 Hp, (acc. to UL 480 V) 20 Hp, (acc. to UL 600 V) 25 Hp |
|---|
External Classifications and Standards 5
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3171262 |
Logistics 10
| Package Level 1 Units | box 1 box |
|---|---|
| Package Level 1 Width | 80 mm, 3.15 in |
| Package Level 1 Depth / Length | 108 mm, 4.25 in |
| Package Level 1 Height | 79 mm, 3.11 in |
| Package Level 1 Gross Weight | 0.25 kg, 0.55 lb |
| Package Level 1 EAN | 6417019390536 |
| Shipping weight | 0.25 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA104913R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- DNV
- RoHS
- UL 98 / IEC60947-3
Quick answers
Questions about the OT40F3C
What is the rated current of OT40F3C?
The rated current of OT40F3C is 40 A.
What is the HS code of OT40F3C for customs?
The tariff (HS) code on file for OT40F3C is 85365080.
What is the EAN of OT40F3C?
The EAN (GTIN) of OT40F3C is 6417019390536.
Where does OT40F3C ship from, and how fast?
OT40F3C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
