ABB 1SCA103912R1001 OT2000E04CP 4P 1000V 55kA Manual Change-Over Switch Changeover Switch

% $-4,510.88

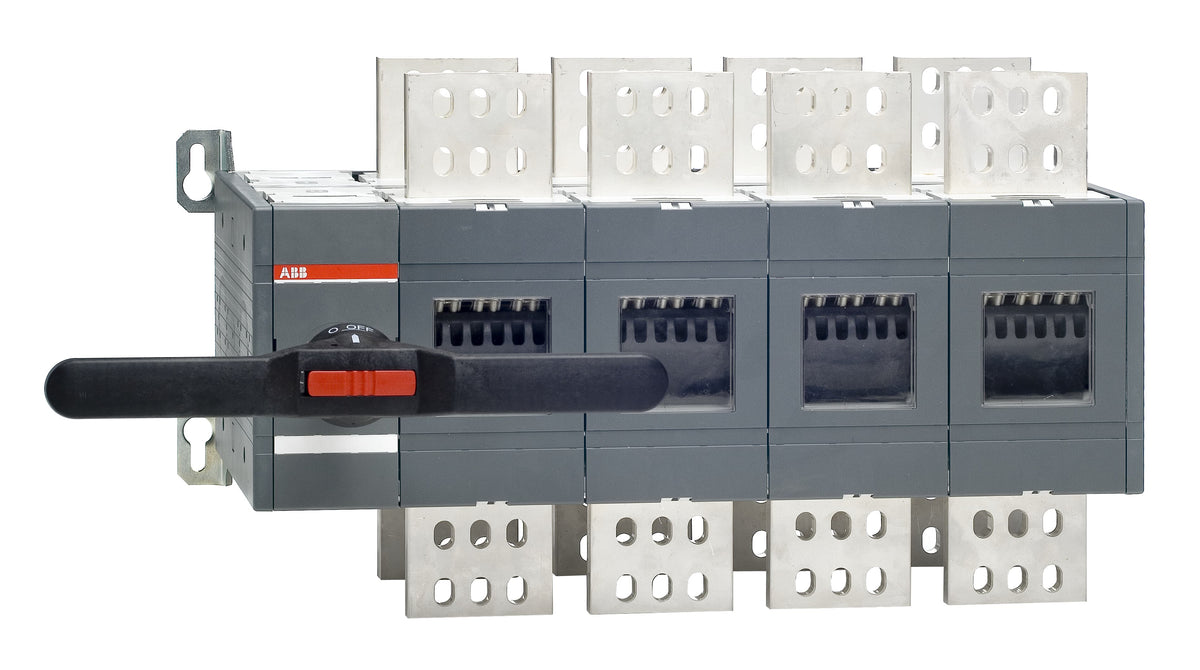

ABB OT2000E04CP 1SCA103912R1001 manual change-over switch – 2000A 4P 55kA
ABB OT2000E04CP 1SCA103912R1001 manual change-over switch – 2000A 4P 55kA

ABB 1SCA103912R1001 OT2000E04CP 4P 1000V 55kA Manual Change-Over Switch Changeover Switch

Brand: ABB
Reference No: 1SCA103912R1001
Catalog No: OT2000E04CP
Series: Manual Change-over Switches
Tariff Code (HS): 853650
Rated Current: 2000
Rated Voltage: 1000 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,510.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's OT2000E04CP (SKU 1SCA103912R1001) is a 2000 A, 4-pole manual change-over switch for a 1000 V main circuit. Its fourth pole switches simultaneously with the phases, its short-time withstand current (Icw) is rated 55 kA for 1 second, and it uses 100 mm wide screw terminals for base-mounted installation, with a 12 kV impulse withstand voltage (Uimp).

Technical Specifications

Catalog No OT2000E04CP
SKU 1SCA103912R1001
Brand ABB
Series Manual Change-over Switches
EAN 6417019382838
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Conventional Free-air Thermal Current (Ith) 2000 A
Rated Operational Current AC-21B (Ie) 2000 A (380-500 V)
Rated Short-time Withstand Current (Icw) 55 kA for 1 s
Degree of Protection Front IP20
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Terminal Type Screw Terminals
Terminal Width 100 mm
Transition Type Open
Power Loss per Pole 55 W
Net Weight 69.55 kg
Net Dimensions (W x H x D) 664 x 377 x 335 mm

Selection Notes

The 4-pole OT2000E04CP switches the neutral together with the phases, unlike the 3-pole OT2000E03CP in the same frame — specify it wherever the installation requires a switched neutral during transfer. Both share the 55 kA Icw and 100 mm screw terminal width; only the pole configuration changes between the two.

Technical Details

Short Description
OT2000E04CP 2000 A, 4-pole manual change-over switch, 1000 V, 55 kA Icw, switched neutral, base mounting.
Rated Current (Ampere)
2000
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OT2000E04CP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
OT2000E04CP
Tariff Code
853650
