ABB 1SCA103908R1001 OT2000E03CP 3P 1000V 55kA Manual Change-Over Switch Changeover Switch

% $-4,188.30

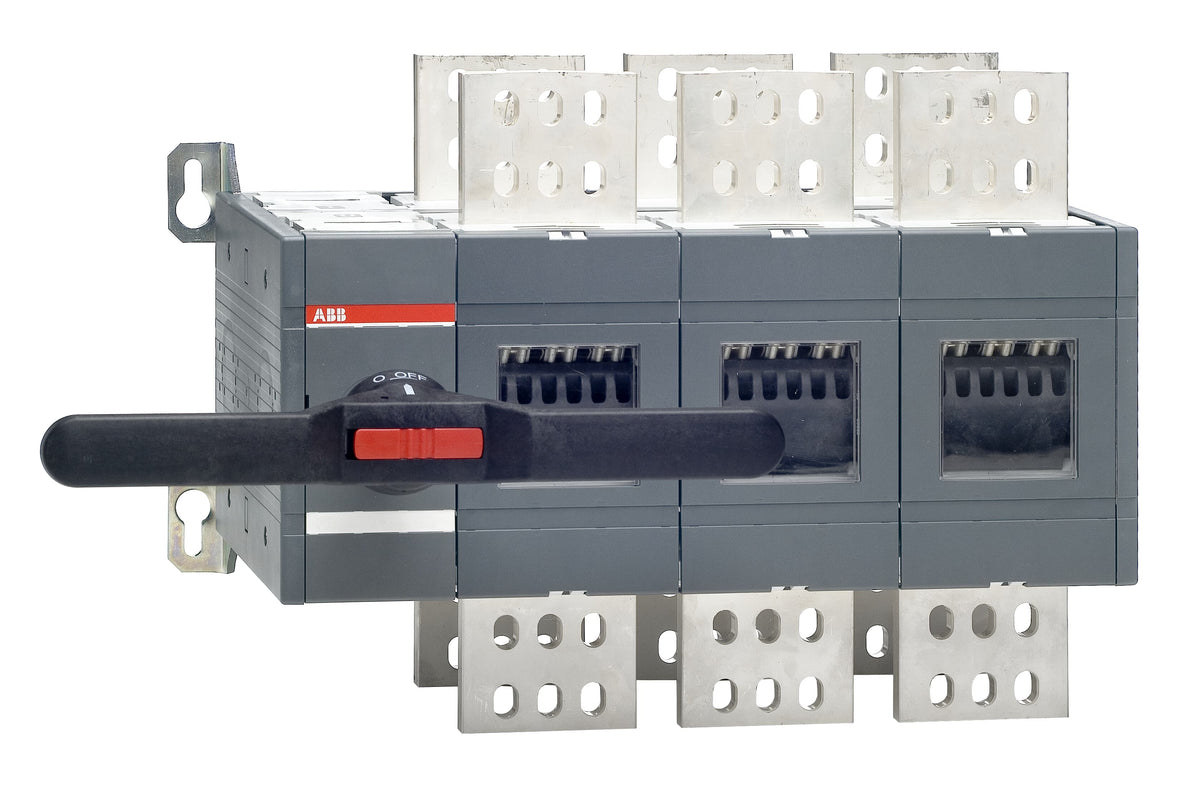

ABB OT2000E03CP 1SCA103908R1001 manual change-over switch – 2000A 3P 55kA
ABB OT2000E03CP 1SCA103908R1001 manual change-over switch – 2000A 3P 55kA

ABB 1SCA103908R1001 OT2000E03CP 3P 1000V 55kA Manual Change-Over Switch Changeover Switch

Brand: ABB
Reference No: 1SCA103908R1001
Catalog No: OT2000E03CP
Series: Manual Change-over Switches
Tariff Code (HS): 853650
Rated Current: 2000
Rated Voltage: 1000 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,188.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB OT2000E03CP (SKU 1SCA103908R1001) is a 2000 A, 3-pole manual change-over switch for a 1000 V main circuit. It carries a 55 kA, 1-second short-time withstand current (Icw), uses screw terminals sized for a 100 mm terminal width, and mounts to the base of an enclosure with an open-transition pistol handle.

Technical Specifications

Catalog No OT2000E03CP
SKU 1SCA103908R1001
Brand ABB
Series Manual Change-over Switches
EAN 6417019382814
Number of Poles 3P
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Conventional Free-air Thermal Current (Ith) 2000 A
Rated Operational Current AC-21B (Ie) 2000 A (380-500 V)
Rated Short-time Withstand Current (Icw) 55 kA for 1 s
Degree of Protection Front IP20
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Position of Line Terminals Top In - Bottom Out / Bottom In - Top Out
Terminal Type Screw Terminals
Terminal Width 100 mm
Transition Type Open
Power Loss per Pole 55 W
Net Weight 54.285 kg
Net Dimensions (W x H x D) 538 x 377 x 335 mm

Selection Notes

At 2000 A the OT2000E03CP uses screw terminals on a 100 mm terminal width rather than the lug terminals found on the equivalent switch-disconnector frame, reflecting the heavier bus-bar connections typical at this current. Its 55 kA Icw is higher than the 1000-1600 A OT…CP frames, so it tolerates a larger upstream fault level for the same 1-second duration. Choose the 3-pole version where the neutral is unswitched.

Technical Details

Short Description
OT2000E03CP 2000 A, 3-pole manual change-over switch, 1000 V, 55 kA Icw, open transition, base mounting.
Rated Current (Ampere)
2000
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OT2000E03CP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
OT2000E03CP
Tariff Code
853650
