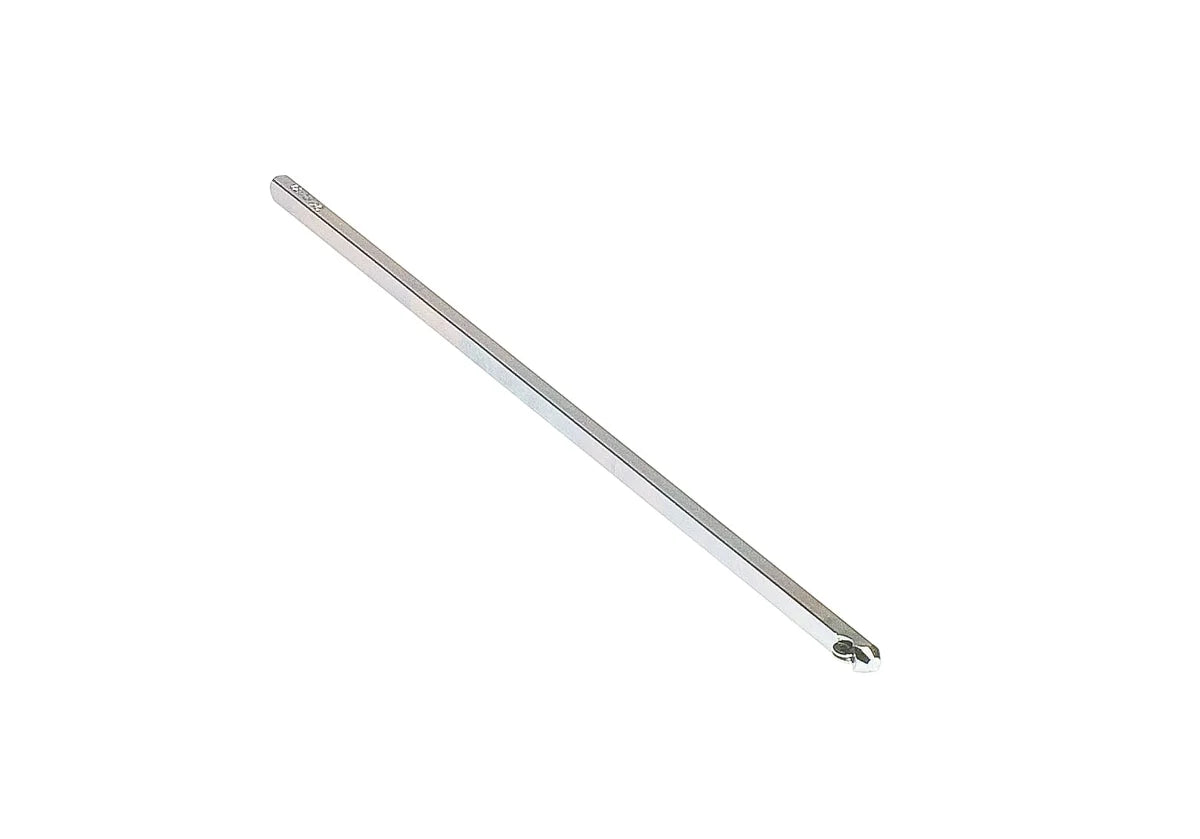

ABB 1SCA101661R1001 OXS6X330 6x6x330mm Switch Operating Shaft

The ABB OXS6X330 (SKU: 1SCA101661R1001) is a switch operating shaft designed for use with ABB enclosed switches and disconnect switch assemblies in industrial control panels and switchgear applications. Part of the ABB OXS series, the OXS6X330 features a 6×6 mm cross-section and a 330 mm length, enabling reliable mechanical linkage between rotary switch actuators and their operating mechanisms. Weighing just 0.08 kg, this precision-machined shaft is built for consistent, repeatable operation in demanding industrial environments.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with the Restriction of Hazardous Substances Directive — restricts use of specific hazardous materials in electrical and electronic equipment
• REACH: Compliant with EU REACH regulation (Registration, Evaluation, Authorisation and Restriction of Chemicals)
• EU Directive 2011/65/EU & Amendment 2015/863: Fully compliant with the EU RoHS Directive and its 2015 amendment extending restricted substance requirements
• WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal and recycling

Applications & Use Cases

• Mechanical shaft extension for ABB rotary disconnect switches and enclosed switches
• Industrial control panels requiring extended actuator reach
• Switchgear and distribution board assemblies
• OEM machine building and industrial automation systems
• Replacement shaft for existing ABB OXS series installations
