ABB 1SCA022872R1680 OT1000E03CP 3P 1000V 50kA Manual Change-Over Switch Changeover Switch

% $-1,745.13

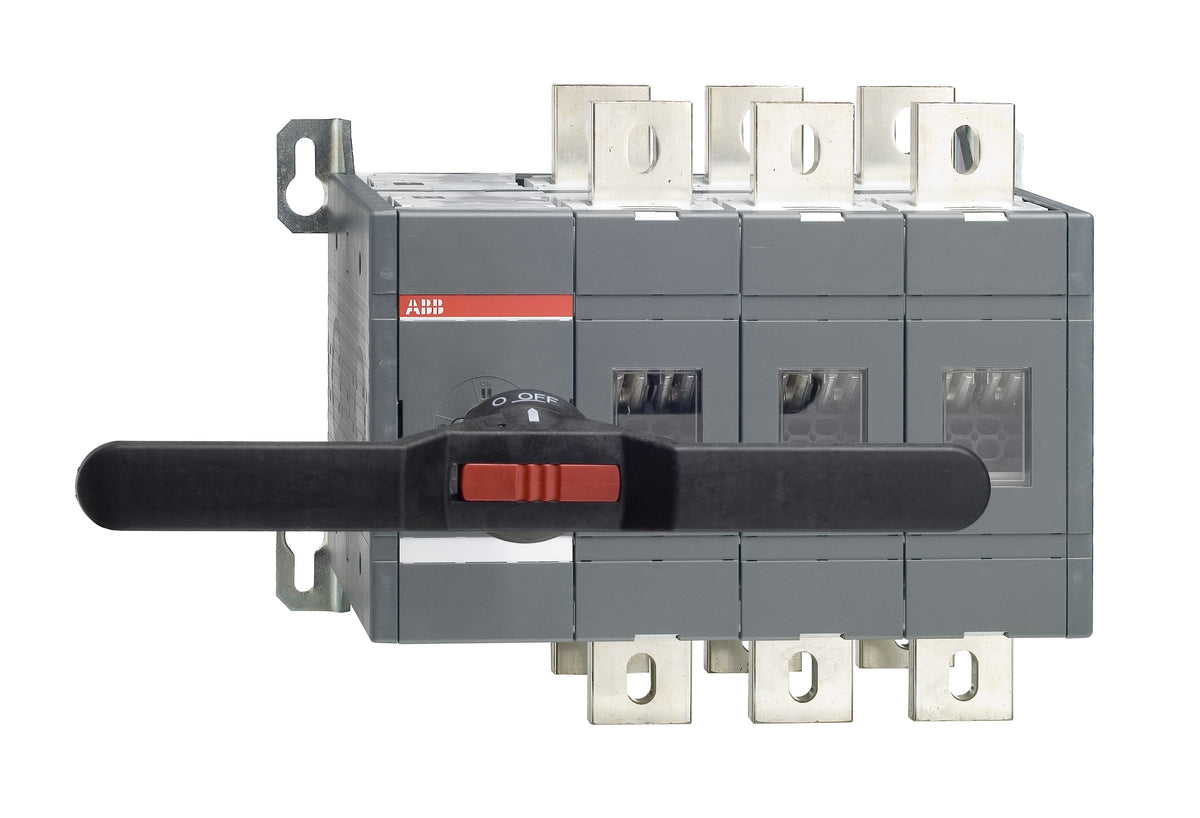

ABB OT1000E03CP 1SCA022872R1680 manual change-over switch – 1000A 3P 50kA
ABB OT1000E03CP 1SCA022872R1680 manual change-over switch – 1000A 3P 50kA

ABB 1SCA022872R1680 OT1000E03CP 3P 1000V 50kA Manual Change-Over Switch Changeover Switch

Brand: ABB
Reference No: 1SCA022872R1680
Catalog No: OT1000E03CP
Series: Manual Change-over Switches
Tariff Code (HS): 853650
Rated Current: 1000
Rated Voltage: 1000 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,745.13

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB OT1000E03CP (SKU 1SCA022872R1680) is a 1000 A, 3-pole manual change-over switch rated for a 1000 V main circuit, built around an open-transition pistol handle with a 50 kA 1-second short-time withstand current (Icw). It mounts to the base of an enclosure and switches between two incoming sources without an automatic control board.

Technical Specifications

Catalog No OT1000E03CP
SKU 1SCA022872R1680
Brand ABB
Series Manual Change-over Switches
EAN 6417019338989
Number of Poles 3P
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Conventional Free-air Thermal Current (Ith) 1000 A
Rated Operational Current AC-23A (Ie) 1000 A (380-690 V)
Rated Operational Power AC-23A (Pe) 560-1000 kW (380-690 V)
Rated Short-time Withstand Current (Icw) 50 kA for 1 s
Degree of Protection Front IP20
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Position of Line Terminals Top In - Bottom Out / Bottom In - Top Out
Terminal Type Screw Terminals
Terminal Width 50 mm
Transition Type Open
Power Loss per Pole 19 W
Net Weight 48 kg
Net Dimensions (W x H x D) 400 x 306 x 309 mm

Selection Notes

Choose the 3-pole OT1000E03CP where the neutral conductor is unswitched and solidly connected in both source positions — common on TN-C-S distribution boards. The 50 kA Icw rating sets the maximum upstream fault current the switch can survive for 1 second while an upstream breaker clears a fault, so size the upstream protection device within that limit. A 4-pole version of the same frame is available where the neutral itself must transfer with the switch.

Technical Details

Short Description
OT1000E03CP 1000 A, 3-pole manual change-over switch, 1000 V, 50 kA Icw, open transition, base mounting.
Rated Current (Ampere)
1000
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OT1000E03CP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
OT1000E03CP
Tariff Code
853650
