ABB 1SCA022872R1500 OT1000E04CP 4P 1000V 50kA Manual Change-Over Switch Changeover Switch

% $-1,822.18

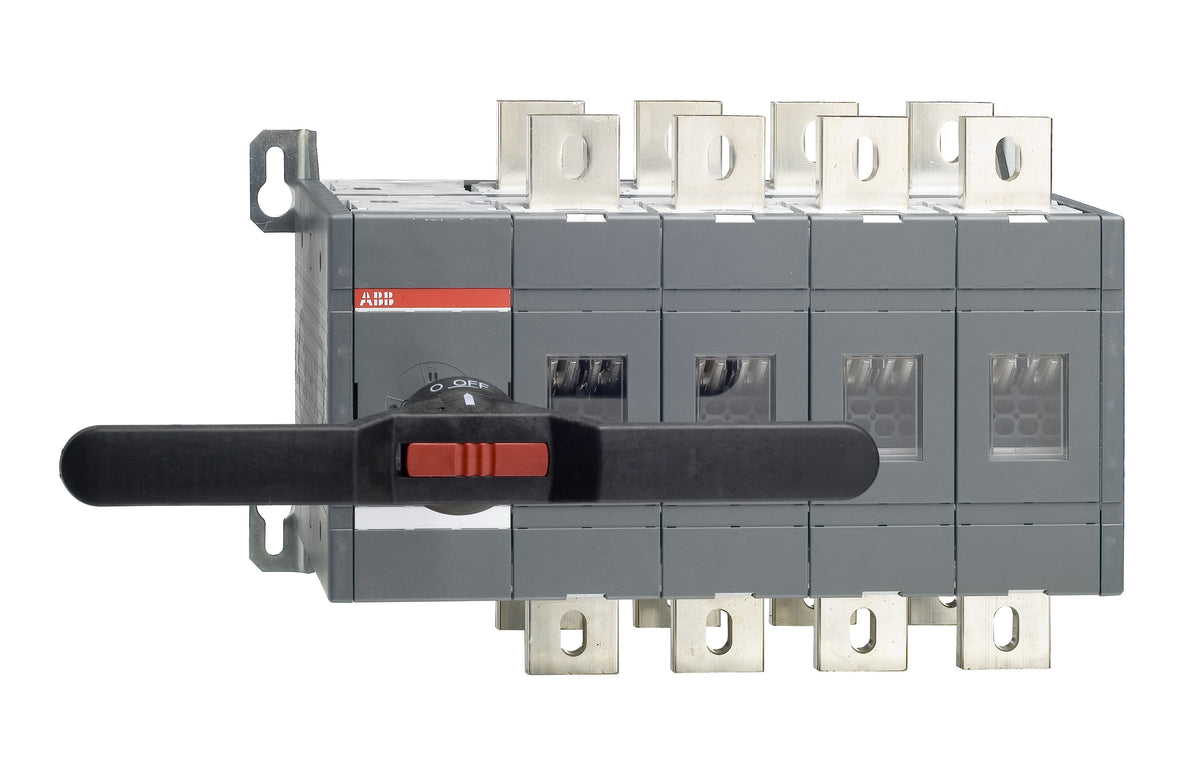

ABB OT1000E04CP 1SCA022872R1500 manual change-over switch – 1000A 4P 50kA
ABB OT1000E04CP 1SCA022872R1500 manual change-over switch – 1000A 4P 50kA

ABB 1SCA022872R1500 OT1000E04CP 4P 1000V 50kA Manual Change-Over Switch Changeover Switch

Brand: ABB
Reference No: 1SCA022872R1500
Catalog No: OT1000E04CP
Series: Manual Change-over Switches
Tariff Code (HS): 853650
Rated Current: 1000
Rated Voltage: 1000 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,822.18

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's OT1000E04CP (SKU 1SCA022872R1500) is a 1000 A, 4-pole manual change-over switch for a 1000 V main circuit. Its fourth pole switches simultaneously with the other three, so the neutral transfers along with the phases, and its open-transition pistol handle carries a 50 kA, 1-second Icw rating for base mounting in an enclosure.

Technical Specifications

Catalog No OT1000E04CP
SKU 1SCA022872R1500
Brand ABB
Series Manual Change-over Switches
EAN 6417019338972
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Conventional Free-air Thermal Current (Ith) 1000 A
Rated Operational Current AC-23A (Ie) 1000 A (380-690 V)
Rated Operational Power AC-23A (Pe) 560-1000 kW (380-690 V)
Rated Short-time Withstand Current (Icw) 50 kA for 1 s
Degree of Protection Front IP20
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Terminal Type Screw Terminals
Terminal Width 50 mm
Transition Type Open
Power Loss per Pole 19 W
Net Weight 42.52 kg
Net Dimensions (W x H x D) 480 x 306 x 309 mm

Selection Notes

Pick the 4-pole OT1000E04CP over its 3-pole counterpart when the neutral must switch together with the phases — typical for generator changeover, where an unswitched neutral would create a parallel earth path between two sources. The open-transition design breaks the first source before making the second, so downstream equipment sees a brief interruption rather than a momentary parallel connection. Its 50 kA Icw matches the 3-pole variant, so frame and fault-current sizing are unaffected by the pole-count choice.

Technical Details

Short Description
OT1000E04CP 1000 A, 4-pole manual change-over switch, 1000 V, 50 kA Icw, switched neutral, base mounting.
Rated Current (Ampere)
1000
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OT1000E04CP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
OT1000E04CP
Tariff Code
853650
