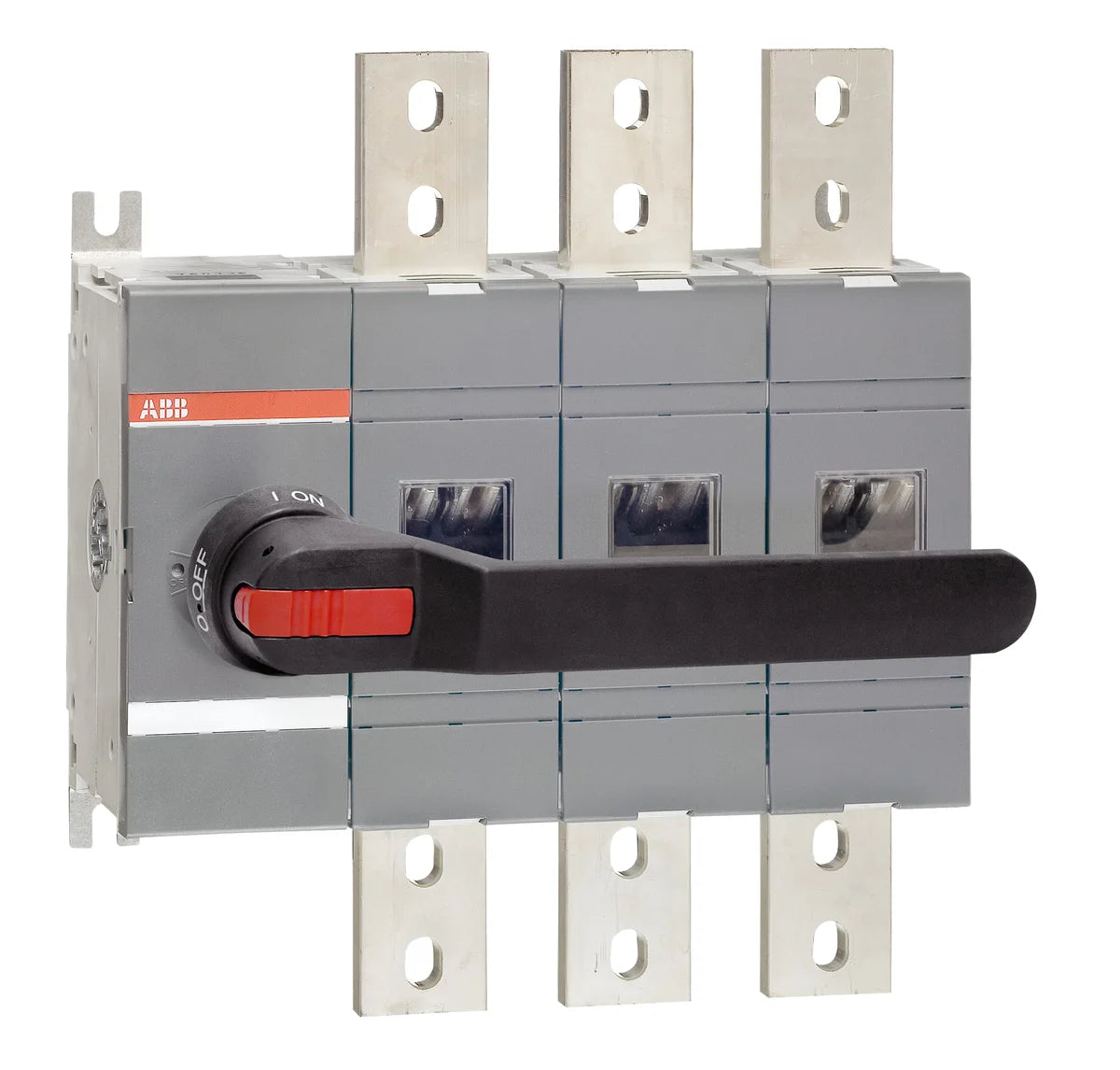

ABB 1SCA022860R6580 OT1600E03P 3-Pole 1600A Base Mounted Switch-Disconnector
Description
About the OT1600E03P
About the OT1600E03P
The ABB OT1600E03P (SKU: 1SCA022860R6580) is a heavy-duty 3-pole, 1600 A base-mounted switch-disconnector designed for safe isolation and load switching in industrial power distribution systems. Weighing 18.8 kg, the OT1600E03P delivers robust mechanical performance and meets the demanding requirements of IEC 60947-3, making it ideal for main distribution boards, motor control centres, and industrial switchgear assemblies.
Certifications & Standards
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH chemical regulation
- IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
- IEC 60947-3: Switches, disconnectors, switch-disconnectors and fuse-combination units
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- EN 60664-1: European harmonised insulation coordination standard
- ATEX: Approved for use in potentially explosive atmospheres
- CE: Conformité Européenne — meets EU safety and regulatory requirements
- VDE: Verified by the Association for Electrical, Electronic & Information Technologies (Germany)
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
Applications & Use Cases
- Main isolation switching in industrial power distribution boards
- Motor control centre (MCC) incoming isolators
- Safe isolation of heavy industrial machinery and process equipment
- Switchgear assemblies requiring IEC 60947-3 compliant disconnection
- Hazardous area installations where ATEX certification is mandatory
- Commercial and industrial buildings requiring high-current main switch functionality
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP00 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 334.5 mm |
|---|---|
| Product Net Height | 372 mm |
| Product Net Depth / Length | 167 mm |
| Product Net Weight | 17.6 kg |
Show all 61 specifications ↓ Show less ↑54 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022860R6580 |
|---|---|
| Type designation | OT1600E03P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019309361 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 27
| Color | Grey |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1600 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mechanical Durability | 6000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 48 W |
| Rated Conditional Short-Circuit Current (Inc) | (1250 A fuse, 415 V) 80 kA, (1250 A fuse, 500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A, (500 V) 1600 A, (690 V) 1600 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A, (500 V) 1600 A, (690 V) 1600 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A, (500 V) 1250 A, (690 V) 1250 A |
| Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW, (500 V) 900 kW, (690 V) 1200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 50 mm |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
External Classifications and Standards 5
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3171256 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 400 mm |
| Package Level 1 Depth / Length | 435 mm |
| Package Level 1 Height | 170 mm |
| Package Level 1 Gross Weight | 18.8 kg |
| Package Level 1 EAN | 6417019309361 |
| Shipping weight | 18.8 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022860R6580 8
-
Datasheet
ProductDownload PDF: Data Sheet, Technical Information 1SCC301020C0201
Data Sheet, Technical Information 1SCC301020C0201
-
Manual
ProductDownload PDF: Instructions and Manuals 1SCC301047M0213
Instructions and Manuals 1SCC301047M0213
-
Declaration of conformity
ProductDownload PDF: REACH Declaration 1SCC011021D0201
REACH Declaration 1SCC011021D0201
-
Declaration of conformity
ProductDownload PDF: RoHS Declaration 1SCC011020D0201
RoHS Declaration 1SCC011020D0201
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CE 1SCC301155D2704
Declaration of Conformity - CE 1SCC301155D2704
-
Certificate
ProductDownload PDF: Environmental Product Declaration - EPD 1SCC301300D0201
Environmental Product Declaration - EPD 1SCC301300D0201
-
Certificate
ProductDownload PDF: A2L Certificate – IEC 1SCC301338D0201
A2L Certificate – IEC 1SCC301338D0201
-
Certificate
ProductDownload PDF: DNV GL Certificate 1SCC301184D0203
DNV GL Certificate 1SCC301184D0203
Certifications
Certifications and standards
- CE
- RoHS
- ATEX
- VDE
- IEC 60947-3
Quick answers
Questions about the OT1600E03P
What is the HS code of OT1600E03P for customs?
The tariff (HS) code on file for OT1600E03P is 85365080.
What is the EAN of OT1600E03P?
The EAN (GTIN) of OT1600E03P is 6417019309361.
Where does OT1600E03P ship from, and how fast?
OT1600E03P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
