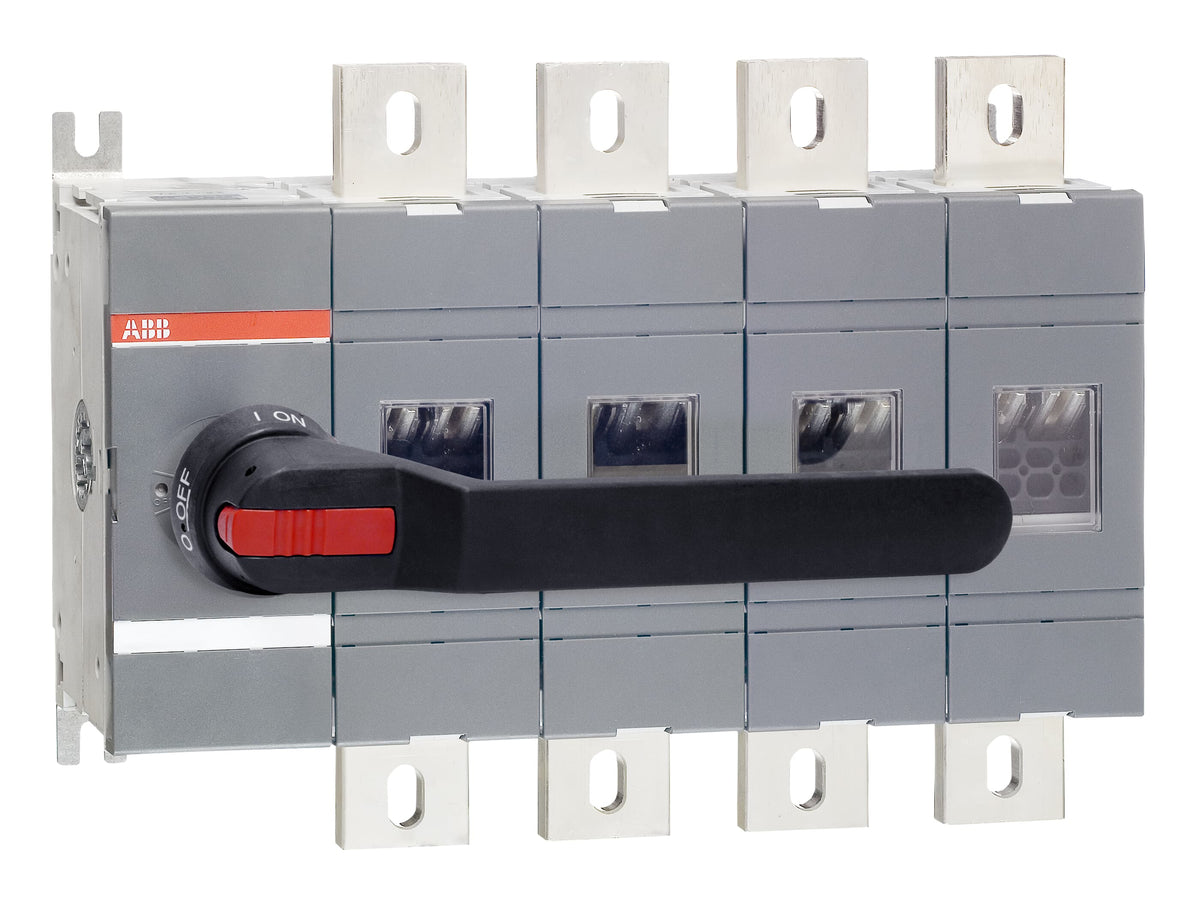

ABB 1SCA022860R6310 OT1250E04P 4P 50kA 92kA Switch-Disconnector Switch Disconnector

% $-1,140.80
ABB OT1250E04P 1SCA022860R6310 switch-disconnector – 1250A 4P 50kA Icw
ABB OT1250E04P 1SCA022860R6310 switch-disconnector – 1250A 4P 50kA Icw

ABB 1SCA022860R6310 OT1250E04P 4P 50kA 92kA Switch-Disconnector Switch Disconnector

Brand: ABB
Reference No: 1SCA022860R6310
Catalog No: OT1250E04P
Series: Switch Disconnectors
Tariff Code (HS): 853650
Rated Current: 1250
Rated Voltage: 1000 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,140.80

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's OT1250E04P (SKU 1SCA022860R6310) is a 1250 A, 4-pole switch-disconnector rated for a 1000 V main circuit under IEC 60947-3. Its short-time withstand current (Icw) is 50 kA for 1 second and its making capacity (Icm) reaches 92 kA, with lug terminals sized for a 50 mm terminal width on base mounting.

Technical Specifications

Catalog No OT1250E04P
SKU 1SCA022860R6310
Brand ABB
Series Switch Disconnectors
EAN 6417019309347
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Conventional Free-air Thermal Current (Ith) 1250 A
Conventional Thermal Current, Fully Enclosed (Ithe) 1250 A
Rated Operational Current AC-23A (Ie) 1250 A (380-690 V)
Rated Operational Power AC-23A (Pe) 710-1200 kW (400-690 V)
Rated Conditional Short-Circuit Current (Inc) 80 kA (1250 A fuse, 415 V) / 100 kA (1250 A fuse, 500 V)
Rated Short-time Withstand Current (Icw) 50 kA for 1 s
Rated Short-Circuit Making Capacity (Icm) 92 kA (690 V)
Degree of Protection Front IP00
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Terminal Type Lug terminals
Terminal Width 50 mm
Net Weight 19.5 kg
Net Dimensions (W x H x D) 414.5 x 306 x 145.5 mm

Certifications & Standards

  • IEC/EN 60947-3

Selection Notes

Step up to the OT1250E04P from the 1000 A frame when the connected load's full-load current exceeds roughly 800 A, leaving margin under the 1250 A conventional thermal rating. The 92 kA Icm and 50 kA Icw are unchanged from the 1000 A model in the same frame, so the fault-current duty this switch can survive is set by the frame family, not by the current step chosen within it. Lug terminals and a 50 mm terminal width keep cable entry consistent across the range.

Technical Details

Short Description
OT1250E04P 1250 A, 4-pole switch-disconnector, 1000 V, 50 kA Icw, 92 kA Icm, IEC 60947-3.
Rated Current (Ampere)
1250
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP00
Catalog No
OT1250E04P
Number of Poles
4P
Standards
IEC 60947-3
Delivery Date (Days)
30 days
Model Number
OT1250E04P
Tariff Code
853650
