ABB 1SCA022860R6150 OT1000E04P 4P 50kA 92kA Switch-Disconnector Switch Disconnector

% $-1,063.18
ABB OT1000E04P 1SCA022860R6150 switch-disconnector – 1000A 4P 50kA Icw
ABB OT1000E04P 1SCA022860R6150 switch-disconnector – 1000A 4P 50kA Icw

ABB 1SCA022860R6150 OT1000E04P 4P 50kA 92kA Switch-Disconnector Switch Disconnector

Brand: ABB
Reference No: 1SCA022860R6150
Catalog No: OT1000E04P
Series: Switch Disconnectors
Tariff Code (HS): 853650
Rated Current: 1000
Rated Voltage: 1000 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,063.18

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

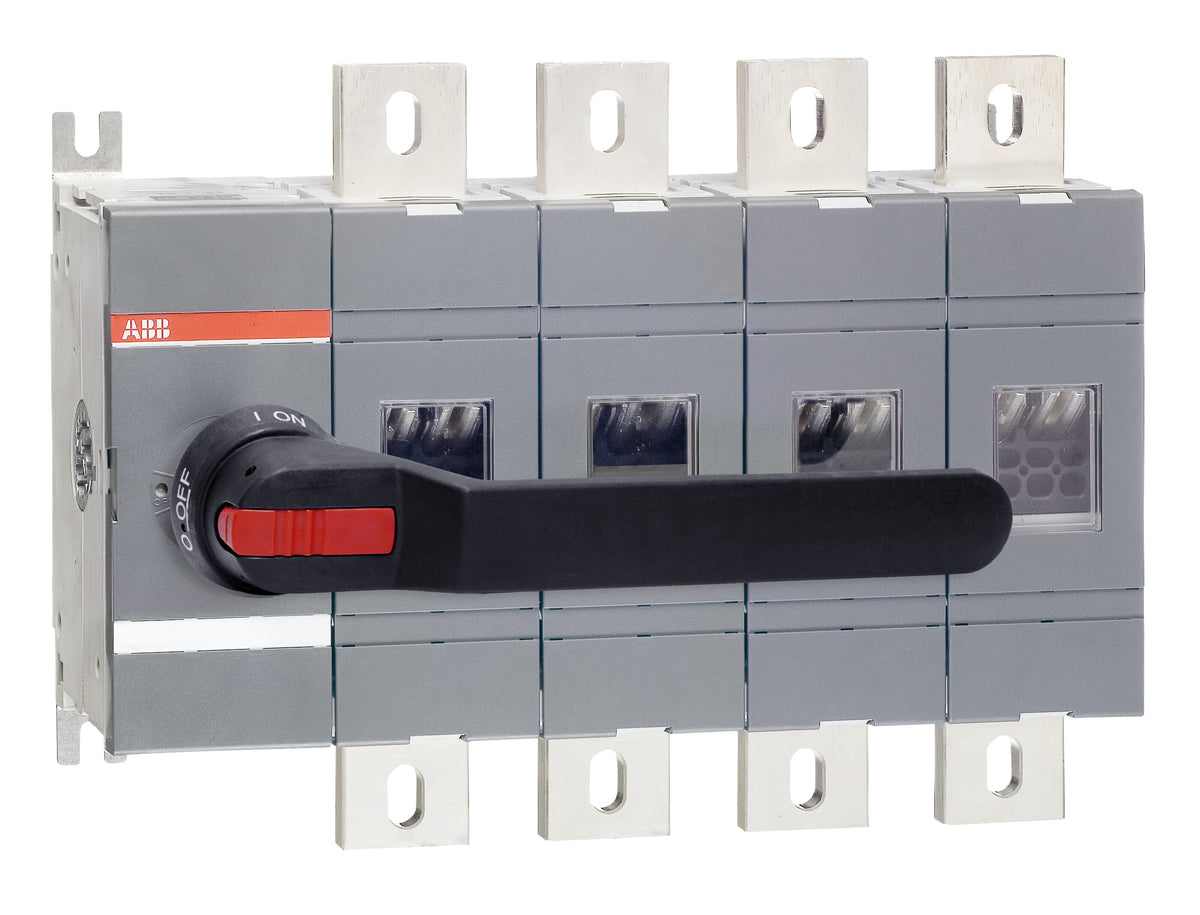

The ABB OT1000E04P (SKU 1SCA022860R6150) is a 1000 A, 4-pole switch-disconnector for a 1000 V main circuit, certified to IEC 60947-3. It carries a 50 kA, 1-second short-time withstand current (Icw) and a 92 kA short-circuit making capacity (Icm), and ships with lug terminals and a black IP65 handle for front-operated base mounting.

Technical Specifications

Catalog No OT1000E04P
SKU 1SCA022860R6150
Brand ABB
Series Switch Disconnectors
EAN 6417019309323
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Conventional Free-air Thermal Current (Ith) 1000 A
Conventional Thermal Current, Fully Enclosed (Ithe) 1000 A
Rated Operational Current AC-23A (Ie) 1000 A (380-690 V)
Rated Operational Power AC-23A (Pe) 560-1000 kW (400-690 V)
Rated Conditional Short-Circuit Current (Inc) 80 kA (1250 A fuse, 415 V) / 100 kA (1250 A fuse, 500 V)
Rated Short-time Withstand Current (Icw) 50 kA for 1 s
Rated Short-Circuit Making Capacity (Icm) 92 kA (690 V)
Degree of Protection Front IP00
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Terminal Type Lug terminals
Terminal Width 50 mm
Net Weight 19.5 kg
Net Dimensions (W x H x D) 414.5 x 306 x 167 mm

Certifications & Standards

  • IEC/EN 60947-3

Selection Notes

The OT1000E04P is a base switch-disconnector, not a change-over unit — specify it where a single source only needs isolating, not transferring between two feeds. Its 92 kA Icm making capacity is higher than the open-transition OT1000 change-over switches because this model is rated to close onto a fault per IEC 60947-3, a duty the change-over range does not need to meet. Lug terminals suit stranded cable runs better than the screw terminals used on the lighter OT…CP range.

Technical Details

Short Description
OT1000E04P 1000 A, 4-pole switch-disconnector, 1000 V, 50 kA Icw, 92 kA Icm, IEC 60947-3.
Rated Current (Ampere)
1000
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP00
Catalog No
OT1000E04P
Number of Poles
4P
Standards
IEC 60947-3
Delivery Date (Days)
30 days
Model Number
OT1000E04P
Tariff Code
853650
