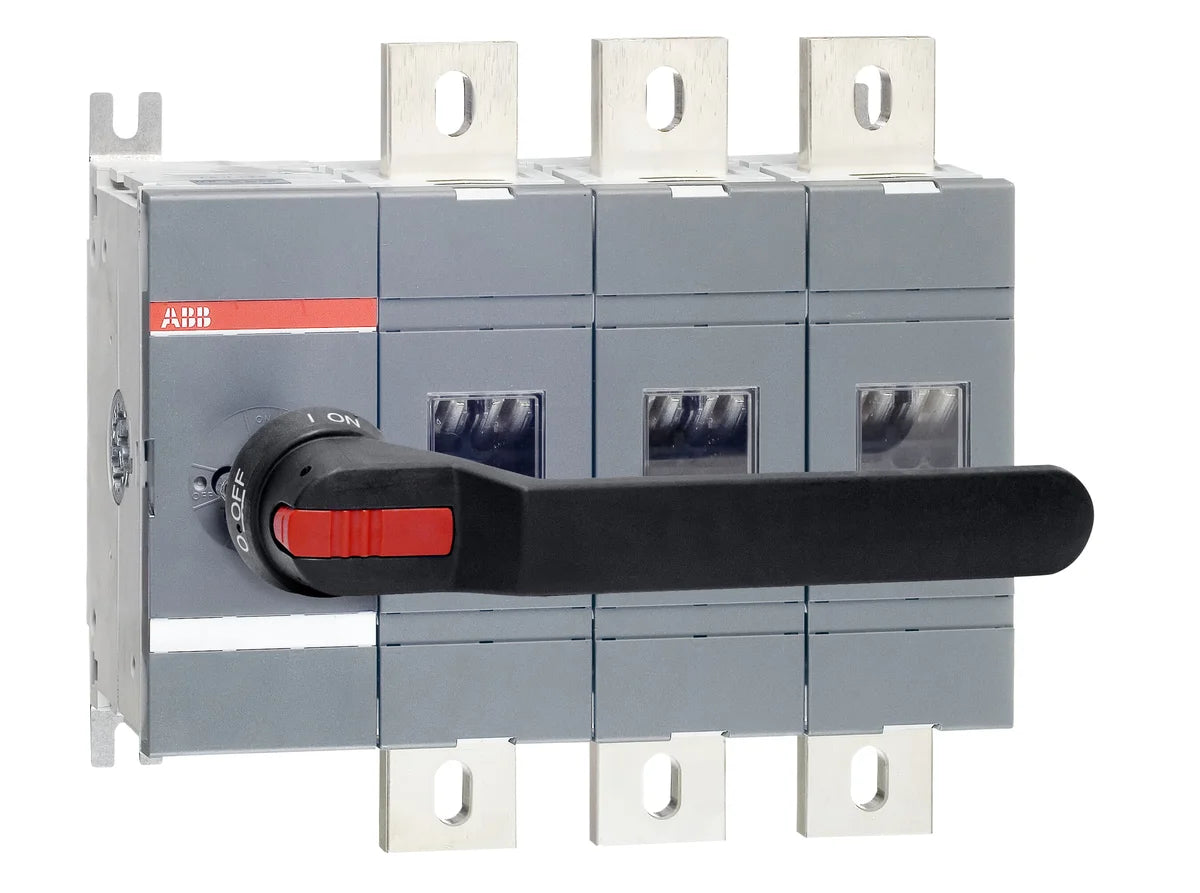

ABB 1SCA022860R5930 OT1000E03P 3-Pole 1000A Base Mount Switch-Disconnector
Description
About the OT1000E03P
About the OT1000E03P
The ABB OT1000E03P (SKU: 1SCA022860R5930) is a heavy-duty 3-pole base-mounted switch-disconnector designed for safe isolation and load switching in industrial power distribution systems. Rated for high-current applications and weighing 16.9 kg, the OT1000E03P meets the rigorous demands of industrial control panels, motor circuits, and main distribution boards. Built to IEC 60947-3 standards, this switch-disconnector delivers reliable performance in demanding environments including potentially explosive atmospheres (ATEX certified).
Certifications & Standards
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH chemical safety regulation
- EU Directive 2011/65/EU: Restriction of hazardous substances in electrical and electronic equipment
- Amendment 2015/863: EU RoHS amendment extending restricted substances list
- IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
- IEC 60947-3: Low-voltage switchgear and controlgear — switches, disconnectors, switch-disconnectors and fuse-combination units
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- EN 60664-1: European standard for insulation coordination in low-voltage systems
- ATEX: Certified for use in potentially explosive atmospheres
- CE: Conformité Européenne — meets EU health, safety, and environmental requirements
- VDE: Certified by Verband der Elektrotechnik — German electrical engineering standards body
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
Applications & Use Cases
- Main isolation and load switching in industrial power distribution boards
- Motor circuit disconnection and protection in manufacturing facilities
- Safe isolation of heavy machinery in process automation environments
- Control panel main supply isolation for MV/LV switchgear assemblies
- Applications in potentially explosive atmospheres (ATEX-rated environments)
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP00 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 334.5 mm |
|---|---|
| Product Net Height | 306 mm |
| Product Net Depth / Length | 167 mm |
| Product Net Weight | 15.4 kg |
Show all 61 specifications ↓ Show less ↑54 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022860R5930 |
|---|---|
| Type designation | OT1000E03P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019309309 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 27
| Color | Grey |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1000 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1000 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mechanical Durability | 6000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 19 W |
| Rated Conditional Short-Circuit Current (Inc) | (1250 A fuse, 415 V) 80 kA, (1250 A fuse, 500 V) 100 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1000 A, (500 V) 1000 A, (690 V) 1000 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1000 A, (500 V) 1000 A, (690 V) 1000 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1000 A, (500 V) 1000 A, (690 V) 1000 A |
| Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 560 kW, (500 V) 710 kW, (690 V) 1000 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 50 mm |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
External Classifications and Standards 5
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3171234 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 400 mm |
| Package Level 1 Depth / Length | 435 mm |
| Package Level 1 Height | 170 mm |
| Package Level 1 Gross Weight | 16.9 kg |
| Package Level 1 EAN | 6417019309309 |
| Shipping weight | 16.9 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022860R5930
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- ATEX
- VDE
- IEC 60947-3
Quick answers
Questions about the OT1000E03P
What is the HS code of OT1000E03P for customs?
The tariff (HS) code on file for OT1000E03P is 85365080.
What is the EAN of OT1000E03P?
The EAN (GTIN) of OT1000E03P is 6417019309309.
Where does OT1000E03P ship from, and how fast?
OT1000E03P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
