ABB 1SCA022772R6510 OT160E03CP 3P 1000V 8kA Manual Change-Over Switch Changeover Switch

% $-311.42

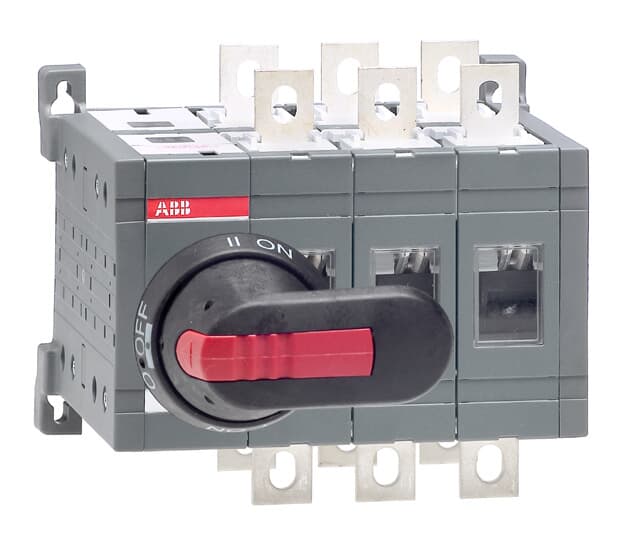

ABB OT160E03CP 1SCA022772R6510 manual change-over switch – 160A 3P 8kA
ABB OT160E03CP 1SCA022772R6510 manual change-over switch – 160A 3P 8kA

ABB 1SCA022772R6510 OT160E03CP 3P 1000V 8kA Manual Change-Over Switch Changeover Switch

Brand: ABB
Reference No: 1SCA022772R6510
Catalog No: OT160E03CP
Series: Manual Change-over Switches
Tariff Code (HS): 853650
Rated Current: 160
Rated Voltage: 1000 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$311.42

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB OT160E03CP (SKU 1SCA022772R6510) is a 160 A, 3-pole manual change-over switch for a 1000 V main circuit. It uses an open-transition pistol handle padlockable in the 0-position with a door interlock in the I and II positions, and its short-time withstand current (Icw) is rated 8 kA for 1 second.

Technical Specifications

Catalog No OT160E03CP
SKU 1SCA022772R6510
Brand ABB
Series Manual Change-over Switches
EAN 6417019251974
Number of Poles 3P
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Conventional Free-air Thermal Current (Ith) 160 A
Conventional Thermal Current, Fully Enclosed (Ithe) 160 A
Rated Operational Current AC-23A (Ie) 160 A (380-690 V)
Rated Operational Power AC-23A (Pe) 90-160 kW (380-690 V)
Rated Short-time Withstand Current (Icw) 8 kA for 1 s
Degree of Protection Front IP20
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Position of Line Terminals Top In - Bottom Out / Bottom In - Top Out
Terminal Type Screw Terminals
Terminal Width 20 mm
Transition Type Open
Power Loss per Pole 2.4 W
Net Weight 3.1 kg
Net Dimensions (W x H x D) 170 x 150 x 160 mm

Selection Notes

The OT160E03CP covers the lower end of the manual change-over range — a 3-pole choice where the neutral stays solidly connected. Its 8 kA Icw is a fraction of the larger frames' rating, because fault levels at a 160 A branch circuit are typically much lower than at a 1000 A+ incomer. The door-interlocked, padlockable handle is unchanged across the whole OT…CP family regardless of frame size.

Technical Details

Short Description
OT160E03CP 160 A, 3-pole manual change-over switch, 1000 V, 8 kA Icw, open transition, base mounting.
Rated Current (Ampere)
160
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OT160E03CP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
OT160E03CP
Tariff Code
853650
