ABB 1SCA022771R7280 OT200E04CP 4P 1000V 8kA Manual Change-Over Switch Changeover Switch

% $-385.60

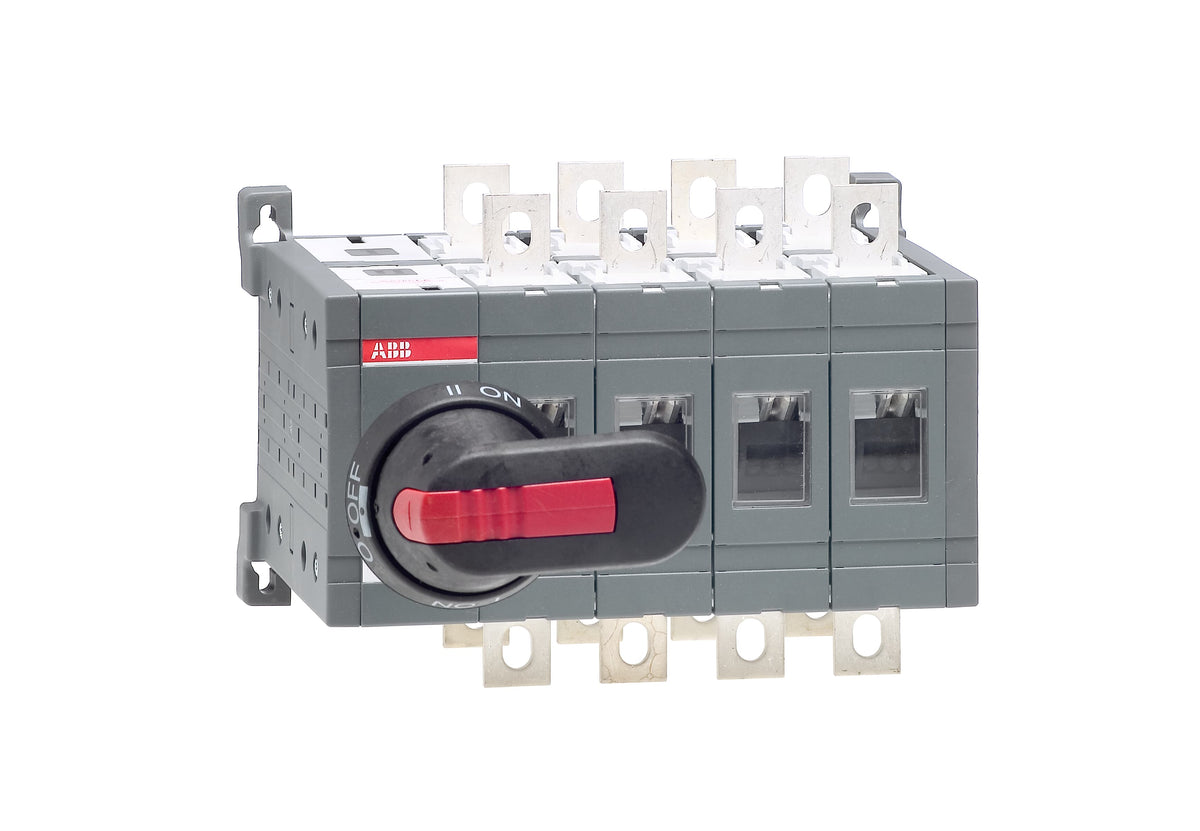

ABB OT200E04CP 1SCA022771R7280 manual change-over switch – 200A 4P 8kA
ABB OT200E04CP 1SCA022771R7280 manual change-over switch – 200A 4P 8kA

ABB 1SCA022771R7280 OT200E04CP 4P 1000V 8kA Manual Change-Over Switch Changeover Switch

Brand: ABB
Reference No: 1SCA022771R7280
Catalog No: OT200E04CP
Series: Manual Change-over Switches
Tariff Code (HS): 853650
Rated Current: 200
Rated Voltage: 1000 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$385.60

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's OT200E04CP (SKU 1SCA022771R7280) is a 200 A, 4-pole manual change-over switch for a 1000 V main circuit. The fourth pole switches simultaneously with the phases, the pistol handle padlocks in the 0-position with door interlock in I and II, and the short-time withstand current (Icw) is 8 kA for 1 second.

Technical Specifications

Catalog No OT200E04CP
SKU 1SCA022771R7280
Brand ABB
Series Manual Change-over Switches
EAN 6417019251882
Number of Poles 4P
Fourth Pole Type Switched - Simultaneous Function
Rated Operational Voltage (Main Circuit) 1000 V
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 12 kV
Conventional Free-air Thermal Current (Ith) 200 A
Conventional Thermal Current, Fully Enclosed (Ithe) 200 A
Rated Operational Current AC-23A (Ie) 200 A (380-690 V)
Rated Operational Power AC-23A (Pe) 110-200 kW (380-690 V)
Rated Short-time Withstand Current (Icw) 8 kA for 1 s
Degree of Protection Front IP20
Pollution Degree 3
Mounting Type Base mounting
Operating Mode Front
Terminal Type Screw Terminals
Terminal Width 20 mm
Transition Type Open
Power Loss per Pole 4 W
Net Weight 4.1 kg
Net Dimensions (W x H x D) 205 x 150 x 160 mm

Selection Notes

The OT200E04CP's 8 kA Icw matches the smaller OT160E04CP in this family, since both sit in the same low-current frame step; what changes between them is the 160 A versus 200 A thermal rating, not the fault-withstand duty. Choose the 4-pole version where the neutral must switch with the phases during generator transfer.

Technical Details

Short Description
OT200E04CP 200 A, 4-pole manual change-over switch, 1000 V, 8 kA Icw, switched neutral, base mounting.
Rated Current (Ampere)
200
Rated Voltage (VAC)
1000 V
Mounting Type
Base mounting
Protection Type
IP20
Catalog No
OT200E04CP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
OT200E04CP
Tariff Code
853650
