- Part number
- 1SCA022719R1810
- Model no
- OT400E04P
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- RoHS
- ATEX
- VDE

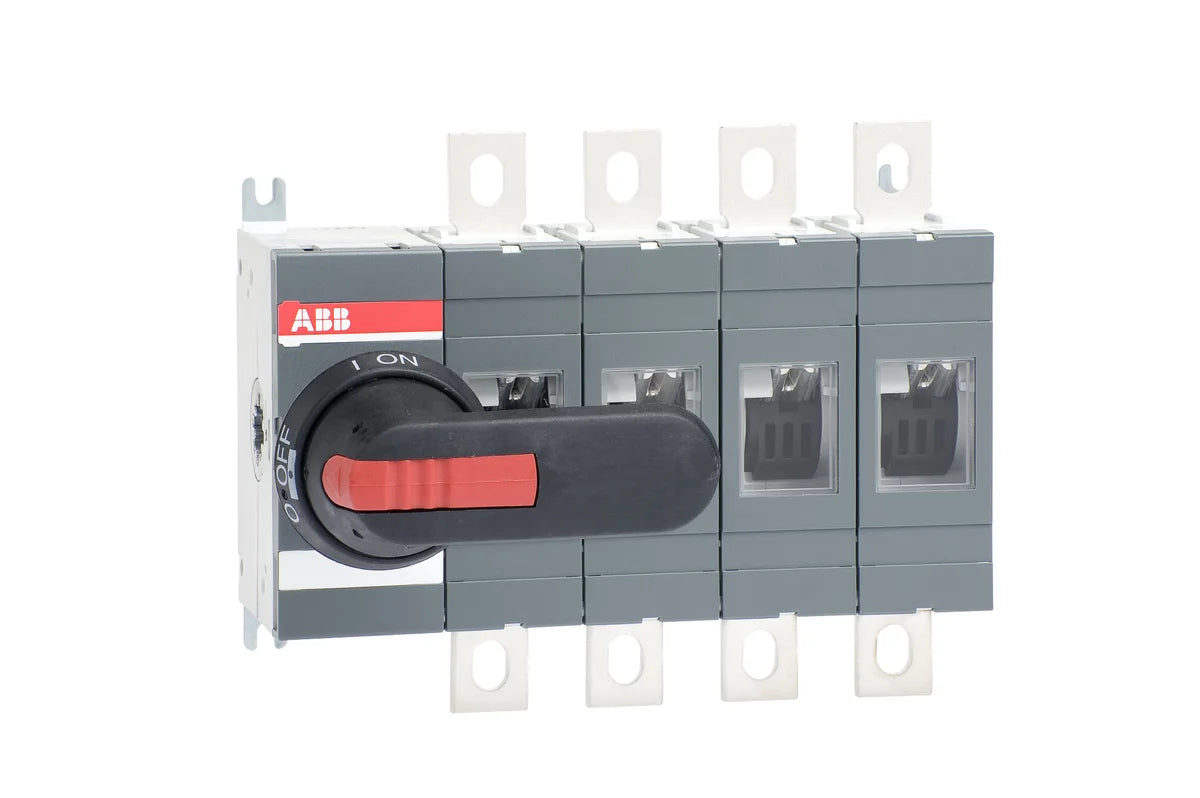

OTABB 1SCA022719R1810 OT400E04P 4-Pole Base Mounted 400A Switch-Disconnector
Description
About the OT400E04P
About the OT400E04P
The ABB OT400E04P (SKU: 1SCA022719R1810) is a 4-pole, base-mounted switch-disconnector rated at 400 A, designed for safe isolation and switching of electrical circuits in industrial control panels and power distribution systems. Part of the ABB OT series, the OT400E04P delivers reliable disconnection performance in compliance with IEC 60947-3, making it the trusted choice for maintenance isolation and load switching in demanding industrial environments. Its robust construction — weighing 3.9 kg with compact overall dimensions of 235 mm × 185 mm × 107 mm — ensures straightforward integration into existing panel layouts.
Certifications & Standards
- IEC 60947-3: International standard for switches, disconnectors, switch-disconnectors and fuse-combination units
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- EN 60664: Insulation coordination for equipment within low-voltage supply systems
- ATEX: Certified for use in potentially explosive atmospheres
- CE: Conforms to applicable European Union directives
- VDE: Verified by the German Association for Electrical, Electronic & Information Technologies
- RoHS: Compliant with the Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH chemical safety regulation
- WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive
Applications & Use Cases
- Main isolation and maintenance switching in industrial control panels
- Power distribution boards requiring safe load disconnection
- Motor feeder circuits requiring 4-pole isolation (including neutral)
- Hazardous area installations requiring ATEX-rated disconnection devices
- Commercial and industrial HVAC, pump, and compressor control panels
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP00 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 235 mm |
|---|---|
| Product Net Height | 185 mm |
| Product Net Depth / Length | 107 mm |
| Product Net Weight | 3.9 kg, 8.5 lb |
Show all 63 specifications ↓ Show less ↑56 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022719R1810 |
|---|---|
| Type designation | OT400E04P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019230788 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 29
| Color | Grey |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Mechanical Durability | 16000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 A fuse, 500 V) 100 kA, (500 A fuse, 690 V) 80 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A, (500 V) 400 A, (690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW, (400 ... 415 V) 230 kW, (500 V) 280 kW, (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 04 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
External Classifications and Standards 5
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3171202 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 220 mm, 8.7 in |
| Package Level 1 Depth / Length | 260 mm, 10.2 in |
| Package Level 1 Height | 155 mm, 6.1 in |
| Package Level 1 Gross Weight | 4.2 kg, 9.3 lb |
| Package Level 1 EAN | 6417019230788 |
| Shipping weight | 4.2 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022719R1810
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- ATEX
- VDE
- IEC 60947-3
Quick answers
Questions about the OT400E04P
What is the HS code of OT400E04P for customs?
The tariff (HS) code on file for OT400E04P is 85365080.
What is the EAN of OT400E04P?
The EAN (GTIN) of OT400E04P is 6417019230788.
Where does OT400E04P ship from, and how fast?
OT400E04P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
