- Part number
- 1SCA022719R1730
- Model no
- OT315E04P
Description
About the OT315E04P
About the OT315E04P

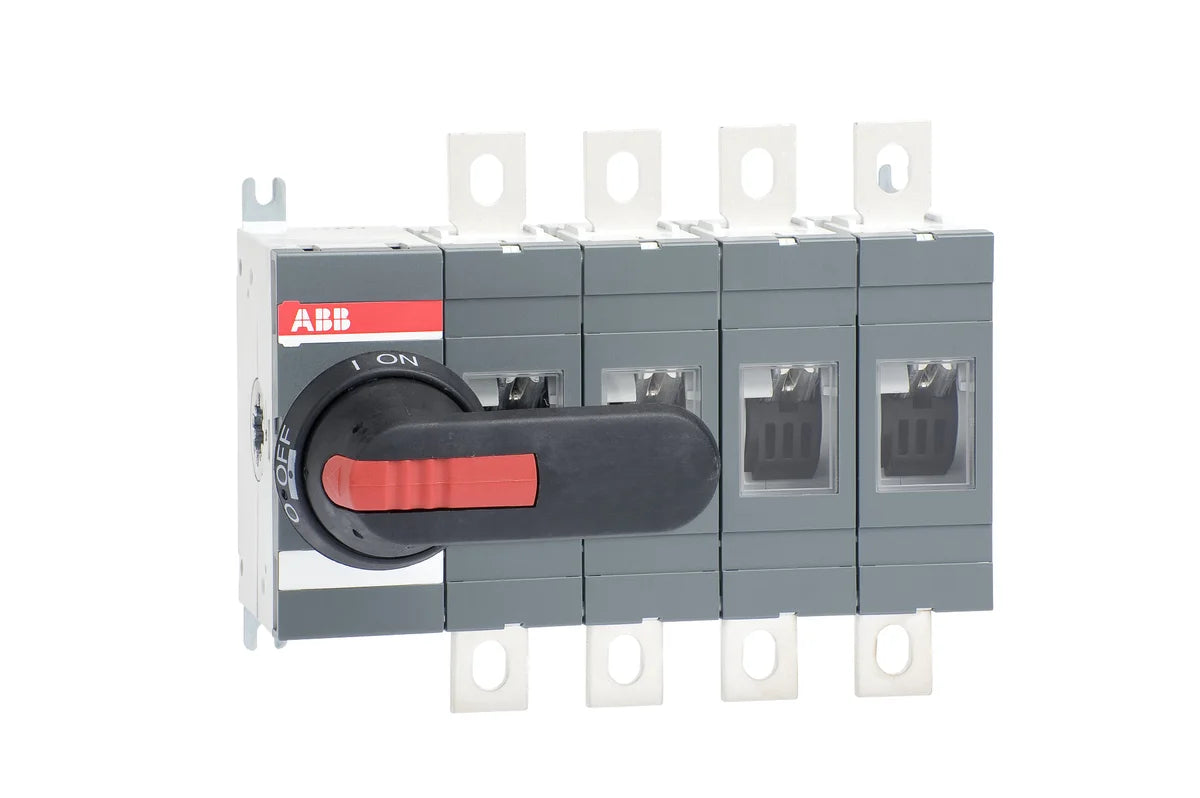

The ABB OT315E04P (SKU: 1SCA022719R1730) is a heavy-duty 4-pole base mounted switch-disconnector from ABB's OT Series, designed for safe isolation and switching of electrical circuits in industrial control panels and distribution systems. Rated at 315A and built to IEC 60947-3 standards, the OT315E04P delivers reliable disconnection performance in demanding environments, including ATEX-rated hazardous locations. With compact dimensions of 235 × 185 × 107 mm and a weight of 3.9 kg, it is engineered for straightforward panel integration.
Certifications & Standards
- CE: Compliant with applicable EU directives for the European market
- RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
- Amendment 2015/863: Compliant with EU RoHS amendment extending restricted substances list
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Registered under EU Waste Electrical and Electronic Equipment Directive
- IEC 60947-3: Switches, disconnectors, switch-disconnectors and fuse-combination units
- IEC 60947-1: Low-voltage switchgear and controlgear — general rules
- IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
- ATEX: Approved for use in explosive atmospheres
- VDE: Verified and certified by the Association for Electrical, Electronic & Information Technologies (Germany)
Applications & Use Cases
- Safe isolation of electrical circuits in industrial control panels and switchboards
- Main disconnection in motor control centres (MCCs) and distribution boards
- Load breaking and isolation in manufacturing, process, and utility installations
- Hazardous area installations requiring ATEX-rated switching devices
- Applications demanding compliance with IEC 60947-3 switch-disconnector standards
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP00 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 235 mm |
|---|---|
| Product Net Height | 185 mm |
| Product Net Depth / Length | 107 mm |
| Product Net Weight | 3.9 kg, 8.5 lb |
Show all 63 specifications ↓ Show less ↑56 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022719R1730 |
|---|---|
| Type designation | OT315E04P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019230771 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 29
| Color | Grey |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 315 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Mechanical Durability | 16000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 A fuse, 500 V) 100 kA, (500 A fuse, 690 V) 80 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 100 kW, (400 ... 415 V) 180 kW, (500 V) 220 kW, (690 V) 315 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 04 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
External Classifications and Standards 5
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3171196 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 220 mm, 8.7 in |
| Package Level 1 Depth / Length | 260 mm, 10.2 in |
| Package Level 1 Height | 155 mm, 6.1 in |
| Package Level 1 Gross Weight | 4.2 kg, 9.3 lb |
| Package Level 1 EAN | 6417019230771 |
| Shipping weight | 4.2 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
