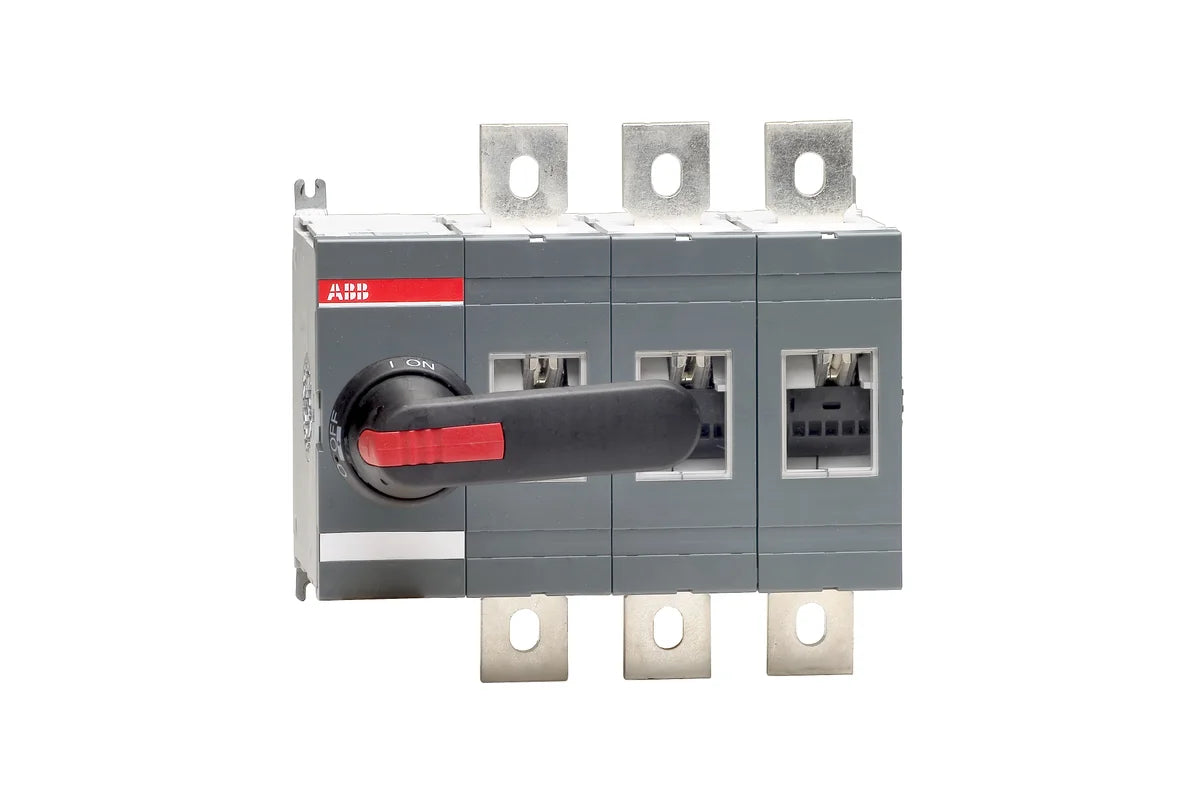

OTABB 1SCA022718R8940 OT630E03P 3-Pole 630A Base Mounted Switch-Disconnector
Description
About the OT630E03P
About the OT630E03P
The ABB OT630E03P (SKU: 1SCA022718R8940) is a 3-pole, base-mounted switch-disconnector from the ABB OT Series, engineered for reliable isolation and switching of electrical circuits in industrial control panels and power distribution applications. Rated at 630A and weighing 6.8 kg, this heavy-duty switch-disconnector meets the rigorous demands of industrial automation environments. Compliant with IEC 60947-3 and a full suite of international standards, the OT630E03P delivers the safe disconnection performance required by engineers and plant operators worldwide.
Certifications & Standards
- RoHS: Compliant with the Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH chemical safety regulation
- EU Directive 2011/65/EU: RoHS2 compliance for electrical and electronic equipment
- Amendment 2015/863: Updated RoHS substance restrictions compliance
- IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
- IEC 60947-3: Low-voltage switchgear and controlgear — switches, disconnectors, and switch-disconnectors
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- EN 60664-1: European standard for insulation coordination in low-voltage systems
- ATEX: Certified for use in potentially explosive atmospheres
- CE: European Conformity marking for the EU market
- VDE: Certified by the Association for Electrical, Electronic & Information Technologies (Germany)
- WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive
Applications & Use Cases
- Main isolation switching in industrial control panels and motor control centres (MCCs)
- Power distribution switchboards requiring reliable 3-pole disconnection
- Industrial automation systems where safe maintenance isolation is critical
- Heavy-duty applications in manufacturing, process industries, and utilities
- Installations in potentially explosive atmospheres (ATEX-rated environments)
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP00 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 266 mm |
|---|---|
| Product Net Height | 250 mm |
| Product Net Depth / Length | 140 mm |
| Product Net Weight | 6.4 kg |
Show all 61 specifications ↓ Show less ↑54 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022718R8940 |
|---|---|
| Type designation | OT630E03P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019230474 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 27
| Color | Grey |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 630 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 630 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mechanical Durability | 10000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Conditional Short-Circuit Current (Inc) | (800 A fuse, 500 V) 100 kA, (800 A fuse, 690 V) 80 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 630 A, (500 V) 630 A, (690 V) 630 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A, (500 V) 630 A, (690 V) 630 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A, (500 V) 630 A, (690 V) 630 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 200 kW, (400 ... 415 V) 355 kW, (500 V) 400 kW, (690 V) 630 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 39 mm |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
External Classifications and Standards 5
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3171220 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 260 mm |
| Package Level 1 Depth / Length | 335 mm |
| Package Level 1 Height | 152 mm |
| Package Level 1 Gross Weight | 6.8 kg |
| Package Level 1 EAN | 6417019230474 |
| Shipping weight | 6.8 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022718R8940
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- ATEX
- VDE
- IEC 60947-3
Quick answers
Questions about the OT630E03P
What is the HS code of OT630E03P for customs?
The tariff (HS) code on file for OT630E03P is 85365080.
What is the EAN of OT630E03P?
The EAN (GTIN) of OT630E03P is 6417019230474.
Where does OT630E03P ship from, and how fast?
OT630E03P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
