- Part number
- 1SCA022718R8510
- Model no
- OT315E03P
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- RoHS
- ATEX
- VDE

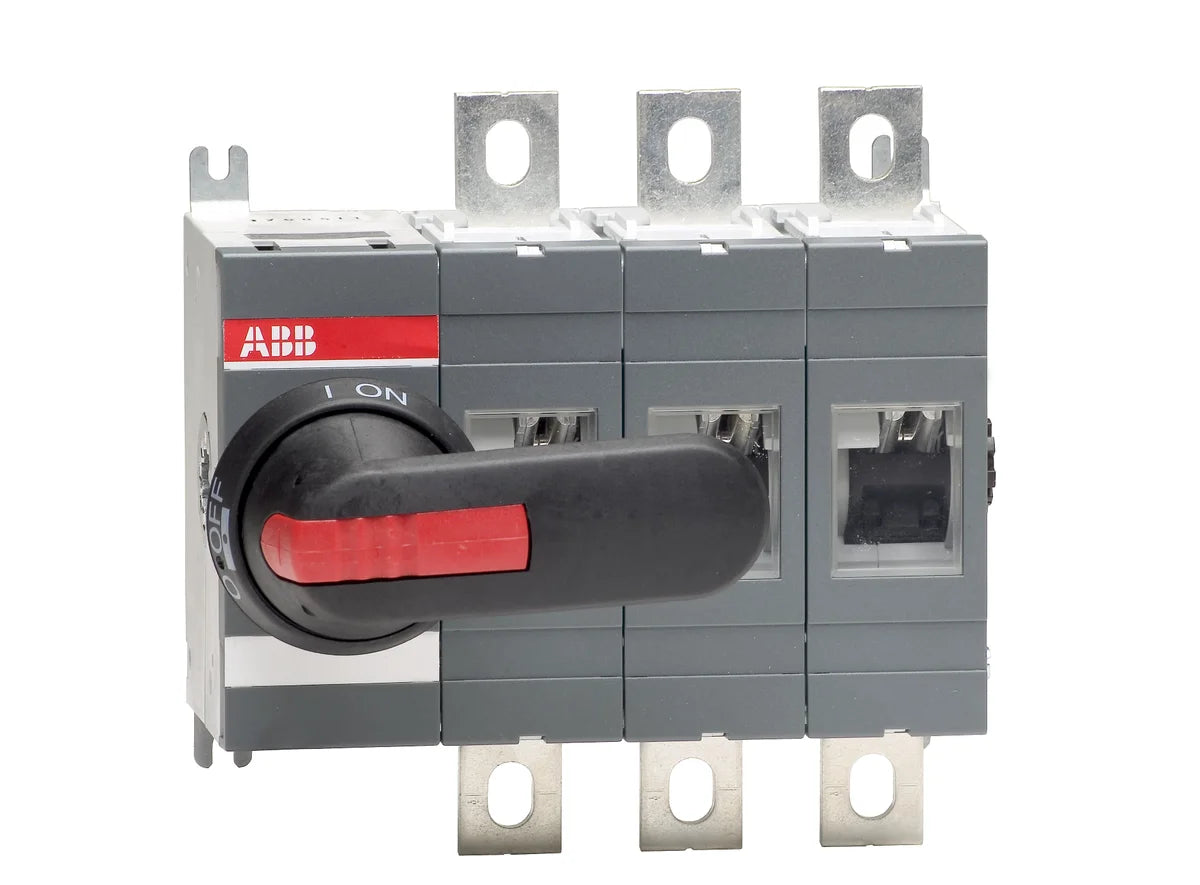

OTABB 1SCA022718R8510 OT315E03P 3-Pole Base Mounted Switch-Disconnector 315A OT Series
Description
About the OT315E03P
About the OT315E03P
The ABB OT315E03P (SKU: 1SCA022718R8510) is a 3-pole base mounted switch-disconnector from ABB's OT series, designed for safe isolation and switching of electrical circuits in industrial control panels and distribution systems. Engineered to IEC 60947-3 standards, the OT315E03P delivers reliable load disconnection and overcurrent isolation for demanding industrial automation environments. With compact dimensions of 191 mm × 185 mm × 107 mm and a weight of 3.5 kg, it is well suited for panel builders and system integrators requiring robust, space-efficient disconnection solutions.
Certifications & Standards
- RoHS: Compliant with Restriction of Hazardous Substances directive
- REACH: Compliant with EU REACH chemical regulation
- EU Directive 2011/65/EU: RoHS recast directive compliance
- EU Directive 2015/863: Amendment to RoHS directive compliance
- IEC 60947-3: International standard for switches, disconnectors, switch-disconnectors and fuse-combination units
- IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
- IEC 60947-130: Low-voltage switchgear and controlgear standard compliance
- EN 60664: European standard for insulation coordination in low-voltage systems
- ATEX: Certified for use in potentially explosive atmospheres
- CE: Conformité Européenne — meets EU safety, health and environmental requirements
- VDE: Verified to VDE (Verband der Elektrotechnik) German electrical engineering standards
- WEEE: Compliant with Waste Electrical and Electronic Equipment directive
Applications & Use Cases
- Safe isolation of electrical circuits in industrial control panels and machinery
- Load disconnection in distribution boards and motor control centres
- On/off switching and maintenance isolation in industrial automation systems
- Applications in potentially explosive atmospheres (ATEX-rated)
- Panel building and switchgear assembly requiring base-mounted 3-pole disconnectors
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Environmental 2
| Degree of Protection | Front IP00 |
|---|---|
| Pollution Degree | 3 |
Dimensions 4
| Product Net Width | 191 mm |
|---|---|
| Product Net Height | 185 mm |
| Product Net Depth / Length | 107 mm |
| Product Net Weight | 3.2 kg, 7 lb |
Show all 61 specifications ↓ Show less ↑54 more values in Identification, Technical, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022718R8510 |
|---|---|
| Type designation | OT315E03P |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019230436 |
| ETIM class | EC000216 |
| eCl@ss | 27371403 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Finland |
Technical 27
| Color | Grey |
|---|---|
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 315 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Mechanical Durability | 16000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 A fuse, 500 V) 100 kA, (500 A fuse, 690 V) 80 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A, (500 V) 315 A, (690 V) 315 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 100 kW, (400 ... 415 V) 180 kW, (500 V) 220 kW, (690 V) 315 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch, 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | acc. IEC 60947-1 30 … 44 N·m |
External Classifications and Standards 5
| ETIM 10 | EC000216 - Switch disconnector (AC) |
|---|---|
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3171195 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 220 mm, 8.7 in |
| Package Level 1 Depth / Length | 260 mm, 10.2 in |
| Package Level 1 Height | 155 mm, 6.1 in |
| Package Level 1 Gross Weight | 3.5 kg, 7.8 lb |
| Package Level 1 EAN | 6417019230436 |
| Shipping weight | 3.5 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022718R8510
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- ATEX
- VDE
- IEC 60947-3
Quick answers
Questions about the OT315E03P
What is the HS code of OT315E03P for customs?
The tariff (HS) code on file for OT315E03P is 85365080.
What is the EAN of OT315E03P?
The EAN (GTIN) of OT315E03P is 6417019230436.
Where does OT315E03P ship from, and how fast?
OT315E03P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
