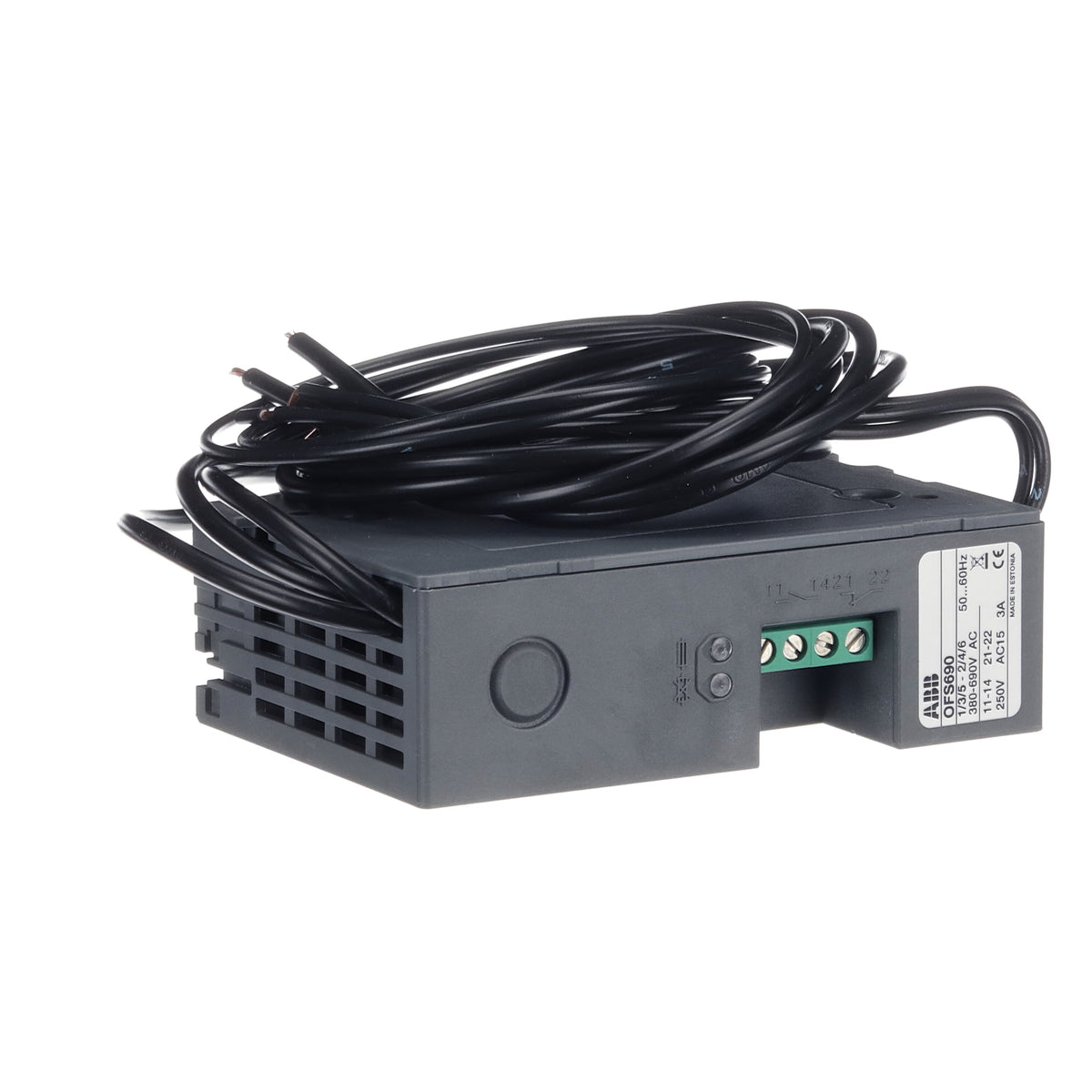

ABB 1SCA022715R9920 OFS690 Electronic Fuse Monitor 380-690V Monitoring Relay

% $-109.65
ABB 1SCA022715R9920 OFS690 Electronic Fuse Monitor 380-690V
ABB 1SCA022715R9920 OFS690 Electronic Fuse Monitor 380-690V

ABB 1SCA022715R9920 OFS690 Electronic Fuse Monitor 380-690V Monitoring Relay

Brand: ABB
Reference No: 1SCA022715R9920
Catalog No: OFS690
Series: Motorized Switch Fuses
Tariff Code (HS): 853649
Rated Voltage: 380/690 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$109.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SCA022715R9920 OFS690 is an electronic fuse monitor rated 380...690 V AC at 50/60 Hz that detects a blown fuse on OS32G-1250 and OSM switch fuses. It mounts to the side of the switch fuse, on DIN-rail, or on a mounting plate, giving flexibility when panel layout does not allow side-mounting. The unit measures 50 x 100 x 100 mm and weighs 0.16 kg.

Technical Specifications

SKU 1SCA022715R9920
Brand ABB
Series Motorized Switch Fuses
Catalog designation OFS690
EAN 6417019261089
Rated Operational Voltage, Main Circuit 380...690 V AC
Rated Voltage (Ur) 380...690 V
Rated Frequency (f) 50 / 60 Hz
Mounting Type Base mounting, DIN mounting, screw mounting
Net Width 50 mm
Net Height 100 mm
Net Depth / Length 100 mm
Net Weight 0.16 kg

Selection Notes

Mounting on the left side of an OS32G-1250 switch fuse or the right side of an OSM motorized switch fuse keeps the monitor's wiring short and avoids a separate enclosure; choose DIN-rail or mounting-plate installation instead when the switch fuse itself has no free mounting face. The 380-690 V range covers both standard 400 V and higher 690 V distribution systems without a separate high-voltage variant.

Technical Details

Short Description
ABB 1SCA022715R9920 OFS690 electronic fuse monitor, 380-690V AC, for OS32G/OSM switch fuses, EAN 6417019261089.
Rated Voltage (VAC)
380/690 V
Mounting Type
Base mounting, DIN mounting, screw mounting
Catalog No
OFS690
Delivery Date (Days)
30 days
Model Number
OFS690
Tariff Code
853649
