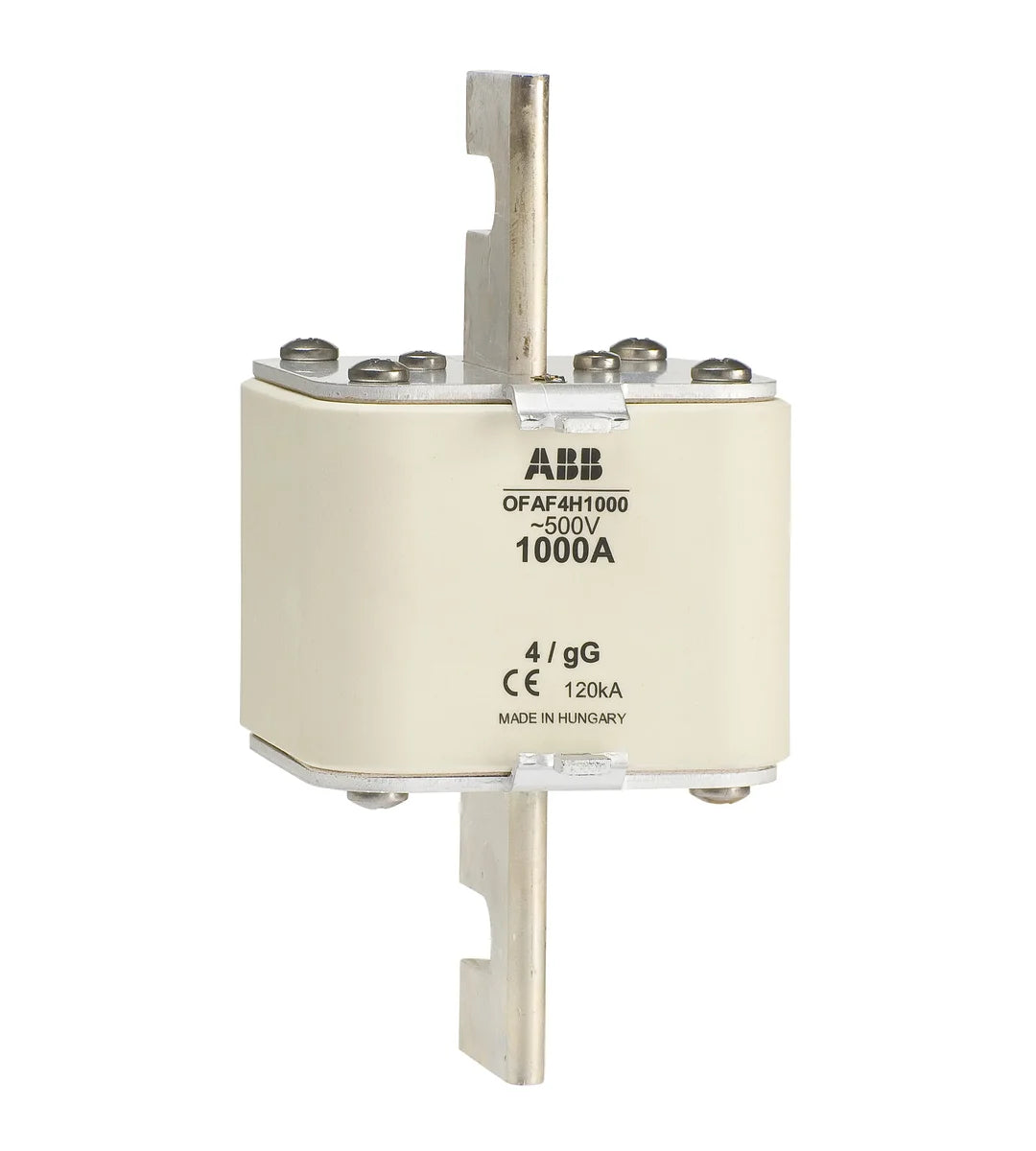

ABB 1SCA022627R7750 OFAF4H1000 1000A 500VAC 120kA 4-Pole HRC Fuse Link
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 1000 | 1SCA022627R7750This part | Low stock | $189.19 | |
| 1250 | 1SCA022627R7830 | On request | $213.10 |
Description
About the OFAF4H1000
About the OFAF4H1000
The ABB OFAF4H1000 HRC fuse link (SKU 1SCA022627R7750) is a high-rupturing-capacity fuse designed to provide reliable overcurrent and short-circuit protection in demanding industrial power distribution systems. Rated at 1000A and 500VAC / 250VDC with a breaking capacity of 120 kA AC and 70 kA DC, the OFAF4H1000 delivers robust protection for switchgear, motor circuits, and distribution panels where fault currents are high.
Certifications & Standards
- CE: Compliant with applicable European Union directives for electrical equipment
- RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances, including Amendment 2015/863
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive
- IEC 60269: Designed and tested in accordance with IEC 60269 low-voltage fuses standard
Applications & Use Cases
- Short-circuit and overcurrent protection in industrial power distribution panels
- Protection of switchgear, busbars, and feeder circuits rated up to 1000A
- Motor branch circuit protection in heavy-duty manufacturing and process plant environments
- AC and DC distribution systems in industrial automation and control panel assemblies
- Fusegear and switch-disconnector fuse combinations requiring IEC 60269 compliant HRC fuse links
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 68 mm |
|---|---|
| Product Net Height | 200 mm |
| Product Net Depth / Length | 119 mm |
| Product Net Weight | 2 kg |
Technical 8
| Fuse Size | NH4 |
|---|---|
| Fuse System | DIN |
| Fuse Type | gG |
| Power Loss | at Rated Current 73.5 W, Total 73.5 W |
| Rated Current (In) | 1000 A |
| Rated Voltage (Ur) | 500 V |
| Standards | IEC 60269 |
| Utilization Category | gL/gG (Cable protection/equipment protection) |
Show all 39 specifications ↓ Show less ↑26 more values in Identification, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022627R7750 |
|---|---|
| Type designation | OFAF4H1000 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019206196 |
| ETIM class | EC000055 |
| eCl@ss | 27142005 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85361090 |
| Country of Origin | Hungary |
External Classifications and Standards 4
| ETIM 10 | EC000055 - Knife blade fuse |
|---|---|
| UNSPSC | 39121600 |
| eClass | V11.1 : 27142005 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 68 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Height | 119 mm |
| Package Level 1 Gross Weight | 2.1 kg |
| Package Level 1 EAN | 6417019206196 |
| Shipping weight | 2.1 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
