ABB 1SCA022381R2110 OHB145J12 Pistol Handle 145mm Base & DIN-Rail Mount IP65

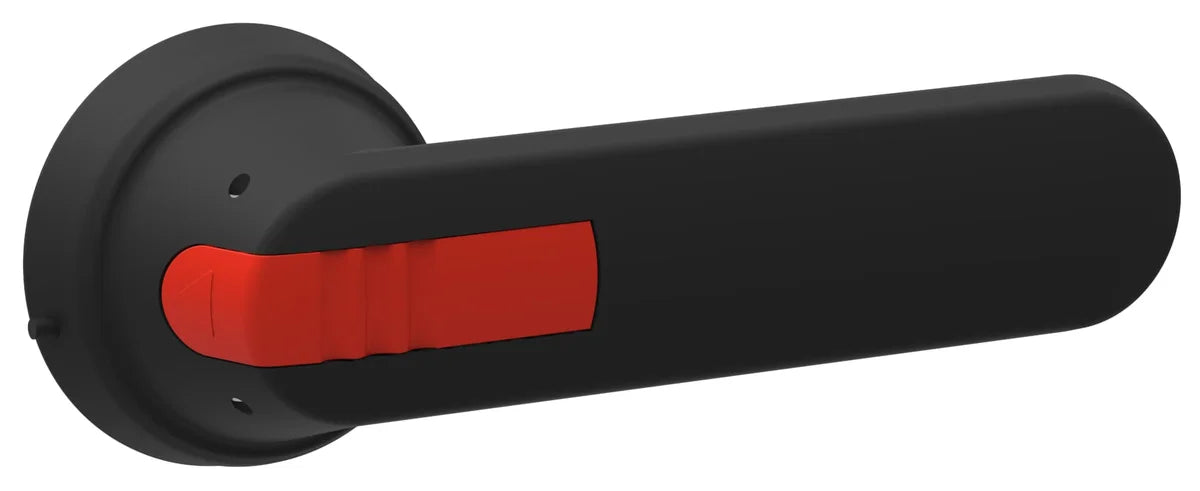

The ABB OHB145J12 pistol handle (SKU 1SCA022381R2110) is a 145 mm industrial pistol-grip operating handle designed for base and DIN-rail mounted switch disconnectors and enclosed switches. Rated IP65 and NEMA 12, the OHB145J12 delivers reliable manual actuation in demanding industrial environments where dust and water ingress protection is critical. Weighing just 0.175 kg, it integrates seamlessly into control panels and machine enclosures.

Technical Specifications

Certifications & Standards

• IP65: Protected against dust ingress and low-pressure water jets from any direction
• NEMA 1: General-purpose indoor enclosure protection
• NEMA 3R: Rainproof, sleet-proof and ice-resistant for outdoor use
• NEMA 12: Industrial use — protection against dust, falling dirt and dripping non-corrosive liquids
• RoHS: Compliant with EU Restriction of Hazardous Substances Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation (EC) No 1907/2006
• CE: Meets applicable EU directives for the European market
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU

Applications & Use Cases

• Manual actuation of base-mounted and DIN-rail-mounted switch disconnectors in industrial control panels
• Machine tool enclosures requiring ergonomic pistol-grip handle operation
• Panel boards and motor control centres where IP65 ingress protection is required
• Industrial automation cabinets in manufacturing, process and utility environments
