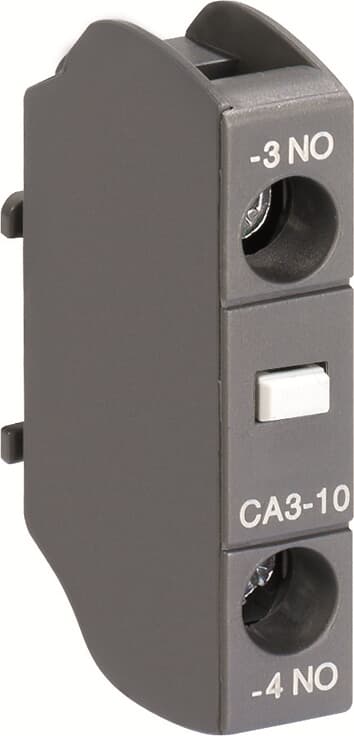

The ABB CA3-10 auxiliary contact block (SKU: 1SBN011010T1010) is a front-mounted, 1NO (normally open) auxiliary contact designed for use with ABB contactors in industrial control and automation panels. Rated at 10A and 690V AC, the CA3-10 delivers reliable auxiliary switching performance in a compact 44.2 × 9.5 × 33.5 mm form factor, fully compliant with IEC 60947-5-1 and global certification requirements.
| Product Net Width | 44.2 mm |
|---|---|
| Product Net Depth / Length | 9.5 mm |
| Product Net Height | 33.5 mm |
| Product Net Weight | 0.011 kg |
| Number of Auxiliary Contacts NO | 1 |
|---|---|
| Number of Auxiliary Contacts NC | 0 |
| Rated Operational Voltage | Auxiliary Circuit 690 V, Main Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Rated Operational Current AC-15 (Ie) | (500 V) NC 2, (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 3 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.27 A / 60 W, (250 V) 0.27 A / 68 W |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A, for 1 s 100 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V, acc. to UL/CSA 600 V |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour, (DC-13) 900 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Power Loss | at 6 A per Pole 0.1 W |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid 1/2x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid 1/2x 0.75 ... 2.5 mm² |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AS09, AS12, AS16, ASL09, ASL12, ASL16, VAS09, VAS12, VAS16, VASL09, VASL12, VASL16, NS, NSL |
| Product Name | Auxiliary Contact Block |
| Tightening Torque UL/CSA | Auxiliary Circuit 9 in·lb |
|---|
| Part number | 1SBN011010T1010 |
|---|---|
| Type designation | CA3-10 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6975486357426 |
| eCl@ss | 27371302 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| REACH Declaration | 2CMT2021-006202 |
|---|---|
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 7 | EC000041 - Auxiliary contact block |
|---|---|
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| E-Number (Sweden) | 3210519 |
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 180 mm |
| Package Level 1 Depth / Length | 10 mm |
| Package Level 1 Height | 160 mm |
| Package Level 1 Gross Weight | 0.11 kg |
| Package Level 1 EAN | 3471523095007 |
| Shipping weight | 0.11 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of CA3-10 is 10 A.
The rated operational voltage of CA3-10 is 690 V AC.
The tariff (HS) code on file for CA3-10 is 85389099.
The EAN (GTIN) of CA3-10 is 6975486357426.
CA3-10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
