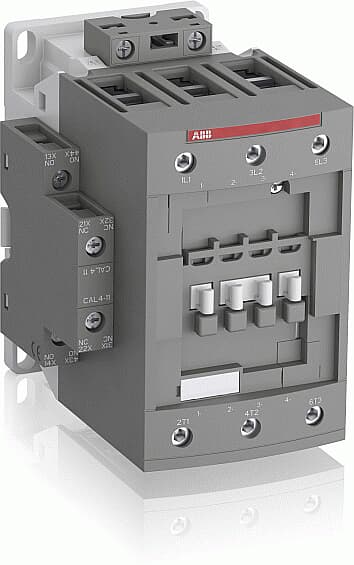

ABB 1SBL397001R1111 AF80-30-11-11 3-Pole 125A AC-1 37kW 400V Coil 24-60V AC/DC Contactor
Brand:
ABB
Reference No:
1SBL397001R1111
Catalog No:
AF80-30-11-11
Series:
AF
Tariff Code (GTIP):
85364900
Stock: 53
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$184.26
- Description
The ABB AF80-30-11-11 contactor (SKU 1SBL397001R1111) is a 3-pole industrial power contactor rated 125 A AC-1 and 37 kW at 400 V (AC-3), designed for demanding motor switching and load control applications. Part of ABB's AF Series, the AF80-30-11-11 accepts a wide-range coil voltage of 24–60 V AC (50/60 Hz) and 20–60 V DC, enabling flexible integration across international control systems without the need for multiple coil variants.
Technical Specifications
| Catalog Number | AF80-30-11-11 |
| SKU | 1SBL397001R1111 |
| Brand | ABB |
| Series | AF |
| EAN | 3471523133013 |
| Number of Poles | 3 |
| Rated Current (AC-1) | 125 A |
| Rated Current (UL General Use) | 105 A |
| Motor Power (AC-3 / 400 V) | 37 kW |
| Motor Power (UL / 480 V) | 60 hp |
| Rated Voltage (IEC) | 1000 V |
| Rated Voltage (UL) | 600 V |
| Coil Voltage AC (50/60 Hz) | 24–60 V |
| Coil Voltage DC | 20–60 V |
| Auxiliary Contacts | 1 NO + 1 NC |
| Utilization Category | AC-1, AC-3 |
| Dimensions (W × H × D) | 82 mm × 125.5 mm × 116 mm |
| Weight | 1.26 kg |
Certifications & Standards
- CE: European Conformity — meets EU safety and EMC requirements
- UKCA: UK Conformity Assessed — meets Great Britain market requirements post-Brexit
- UL: Underwriters Laboratories listed for North American market
- CSA: Canadian Standards Association certified
- CCC: China Compulsory Certification for the Chinese market
- ABS: American Bureau of Shipping type approval for marine applications
- BV: Bureau Veritas type approval
- CB: International CB Scheme certificate for global market access
- UL 60335-2-40: Safety of household and commercial electrical appliances — heat pumps, HVAC
- CSA C22.2 No. 60335-2-40: Canadian equivalent for HVAC/heat pump appliances
- IEC 60947-1 / EN 60947-1: Low-voltage switchgear and controlgear — general rules
- IEC 60947-4 / EN 60947-4: Low-voltage switchgear — contactors and motor starters
- UL 60947-1: UL standard for low-voltage switchgear, general rules
- UL 60947-4-1: UL standard for AC electromechanical contactors and motor starters
- UL 60335-2-40 LZGH2A2L: UL file reference for HVAC appliance certification
- CSA C22.2 No. 60335-2-40 LZGH2A2L: CSA file reference for HVAC appliance certification
- CSA C22.2 No. 60947-1:22: CSA standard for low-voltage switchgear general rules
- CSA C22.2 No. 60947-4-1:22: CSA standard for AC contactors and motor starters
- IEC/EN 60947-1: Combined IEC/EN low-voltage switchgear general rules
- IEC/EN 60947-4: Combined IEC/EN standard for contactors and motor starters
- IEC 60947-5: Low-voltage switchgear — control circuit devices and switching elements
- IEC 60068-2: Environmental testing for electrotechnical products
- EN 45555: General methods for the assessment of the ability of energy-related products to be repaired and recycled
- CSA C22.2: General CSA electrical safety standard compliance
- REACH: EU regulation on chemical substance safety (Registration, Evaluation, Authorisation and Restriction of Chemicals)
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- WEEE: Waste Electrical and Electronic Equipment Directive compliance
Applications & Use Cases
- Three-phase AC motor switching and direct-on-line (DOL) motor starting up to 37 kW / 400 V
- HVAC compressor and fan motor control in commercial and industrial buildings
- Pump and conveyor motor control in process industries
- Resistive and inductive load switching in industrial automation panels
- Marine and offshore installations (ABS, BV approved)
- North American applications requiring UL/CSA listed 60 hp / 480 V contactors
