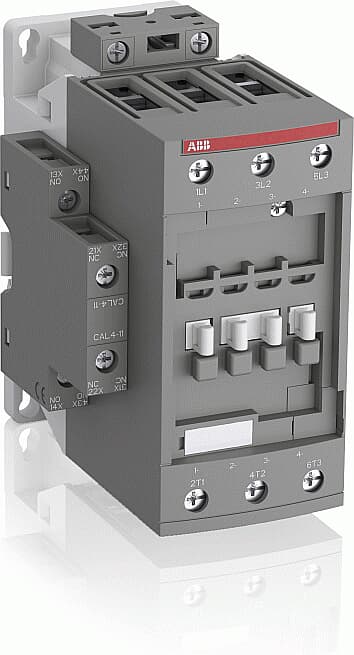

ABB 1SBL367001R1111 AF52-30-11-11 3-Pole 52A 22kW 24-60V AC/DC Coil Power Contactor AC Switching

The ABB AF52-30-11-11 (SKU: 1SBL367001R1111) is a 3-pole power contactor for AC switching applications, rated at 52A / 100A AC-1 and 22 kW at 400V AC (AC-3). Part of ABB's AF-series, it features a wide-range coil accepting 24–60V AC (50/60 Hz) and 20–60V DC, making it highly flexible for diverse control supply scenarios in industrial automation and control panels. Rated to 690V IEC and 600V UL, this contactor is suitable for both European and North American installations.

Technical Specifications

Certifications & Standards

• CE: European Conformity — meets EU low voltage and EMC directives
• UKCA: UK Conformity Assessed — compliant for Great Britain market
• UL: Underwriters Laboratories listed for North American installations
• CSA: Canadian Standards Association certified
• CCC: China Compulsory Certification for Chinese market
• ABS: American Bureau of Shipping approved for marine applications
• BV: Bureau Veritas approved
• CB: CB Scheme — international safety certification
• UL 60335-2-40: Safety of household and similar electrical appliances — heat pumps, air conditioners
• UL 60335-2-40 LZGH2 A2L: UL rating for A2L refrigerant systems
• UL 60947-1: Low-voltage switchgear and controlgear — general rules (UL)
• UL 60947-4-1: Electromechanical contactors and motor starters (UL)
• CSA C22.2 No. 60335-2-40: Canadian standard for heat pumps and air conditioners
• CSA C22.2 No. 60335-2-40 LZGH2 A2L: CSA rating for A2L refrigerant systems
• CSA C22.2 No. 60947-1:22: Low-voltage switchgear — general rules (CSA)
• CSA C22.2 No. 60947-4-1:22: Electromechanical contactors and motor starters (CSA)
• CSA C22.2: Canadian Standards Association electrical standards
• IEC 60947-1 / EN 60947-1 / IEC/EN 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC 60947-4 / EN 60947-4 / IEC/EN 60947-4: Contactors and motor starters
• IEC 60947-5: Control circuit devices and switching elements
• IEC 60529 / EN 60529: Degrees of protection provided by enclosures (IP code)
• IEC 60068-2: Environmental testing — basic environmental testing procedures
• EN45555: General methods for the assessment of the ability to recover resources from electrical and electronic equipment
• REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• WEEE: Waste Electrical and Electronic Equipment Directive compliant
